Brother DCP-L5652DN Service Manual

7-19
Confidential

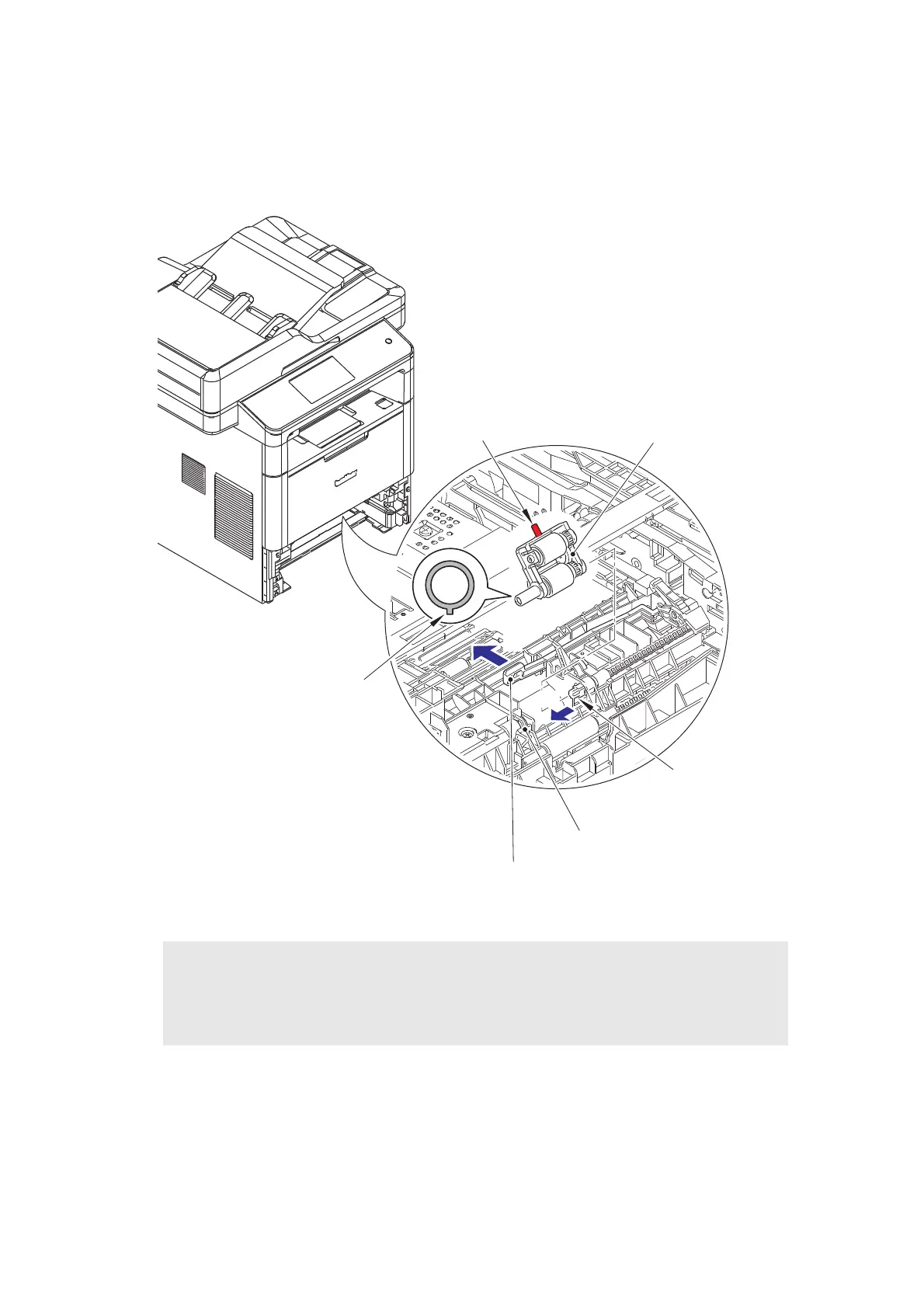

(4) Push the link arm in the direction of the arrow A, and turn the T1 roller holder ASSY to
remove the boss.
(5) Slide the T1 roller holder ASSY in the direction of the arrow B to remove it from the shaft,
and remove the T1 roller holder ASSY.
Fig. 7-22
Assembling Note:
• When attaching the T1 roller holder ASSY, engage "A" on the shaft of the T1 roller
holder ASSY with the hole on the T1 paper feed frame ASSY, and insert the shaft into
the hole.
T1 roller holder ASSY
Boss
Link arm
A
B
<Front side>
<Back side>
"A"
T1 paper feed frame ASSY
Shaft

Brother DCP-L5652DN Specifications

General

Printer Type	Laser
Functions	Print, Copy, Scan
Automatic Duplex Printing	Yes
ADF Capacity	50 sheets
Memory	256 MB
Processor	800 MHz
Monthly Duty Cycle	Up to 50, 000 pages
Print Speed	42 ppm
Print Resolution	1200 x 1200 dpi
Paper Input Capacity	250 sheets
Scanner Resolution	Up to 1200 x 1200 dpi
Connectivity	USB, Ethernet
Mobile Printing	Brother iPrint&Scan, Google Cloud Print, AirPrint, Mopria
Toner Yield	Standard: 3, 000 pages, High Yield: 8, 000 pages
