Brother DCP-L5652DN Service Manual

3-103
Confidential
9.35 Fuser drive gear 39

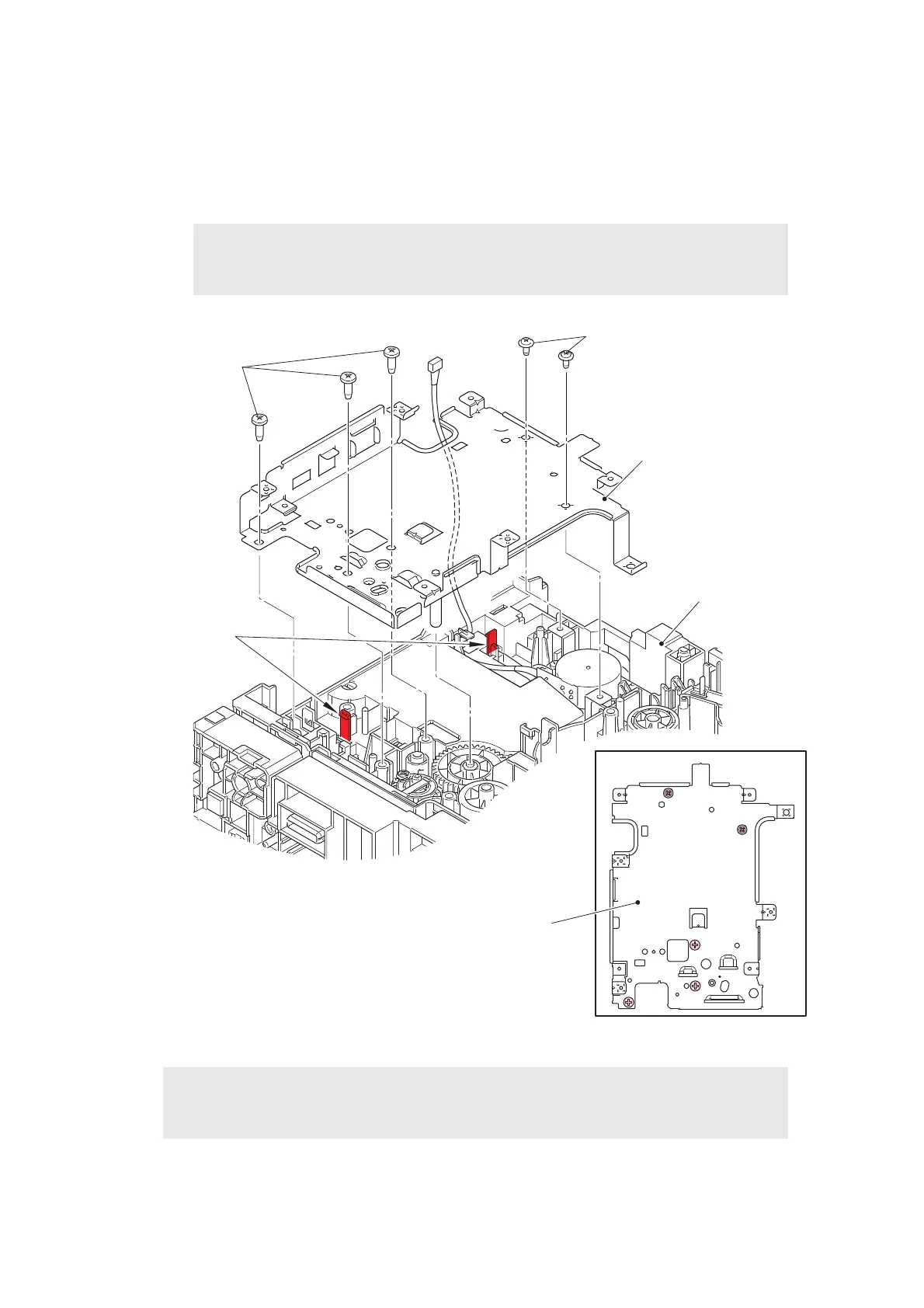

(1) Remove the three taptite bind B M4x12 screws and two taptite cup S M3x8 SR screws.
Release the two hooks to remove the main PCB shield calking ASSY from the main
frame L ASSY.
Fig. 3-103
Note:
• Do not allow the metallic gear shaft of the main PCB shield calking ASSY to face
down. Failure to observe this may cause the steel plate to bend.
Assembling Note:
• When securing the main PCB shield calking ASSY with screws, tighten the screws in
the sequence of the numbers engraved on the main PCB shield calking ASSY.
Taptite cup S M3x8 SR
Taptite bind B
M4x12
Main PCB shield calking ASSY
Main frame L ASSY
Hooks
2
4
1
3
Main PCB shield calking ASSY
5

Brother DCP-L5652DN Specifications

General

Printer Type	Laser
Functions	Print, Copy, Scan
Automatic Duplex Printing	Yes
ADF Capacity	50 sheets
Memory	256 MB
Processor	800 MHz
Monthly Duty Cycle	Up to 50, 000 pages
Print Speed	42 ppm
Print Resolution	1200 x 1200 dpi
Paper Input Capacity	250 sheets
Scanner Resolution	Up to 1200 x 1200 dpi
Connectivity	USB, Ethernet
Mobile Printing	Brother iPrint&Scan, Google Cloud Print, AirPrint, Mopria
Toner Yield	Standard: 3, 000 pages, High Yield: 8, 000 pages
