Brother DCP-L5652DN Service Manual

2-5
Confidential

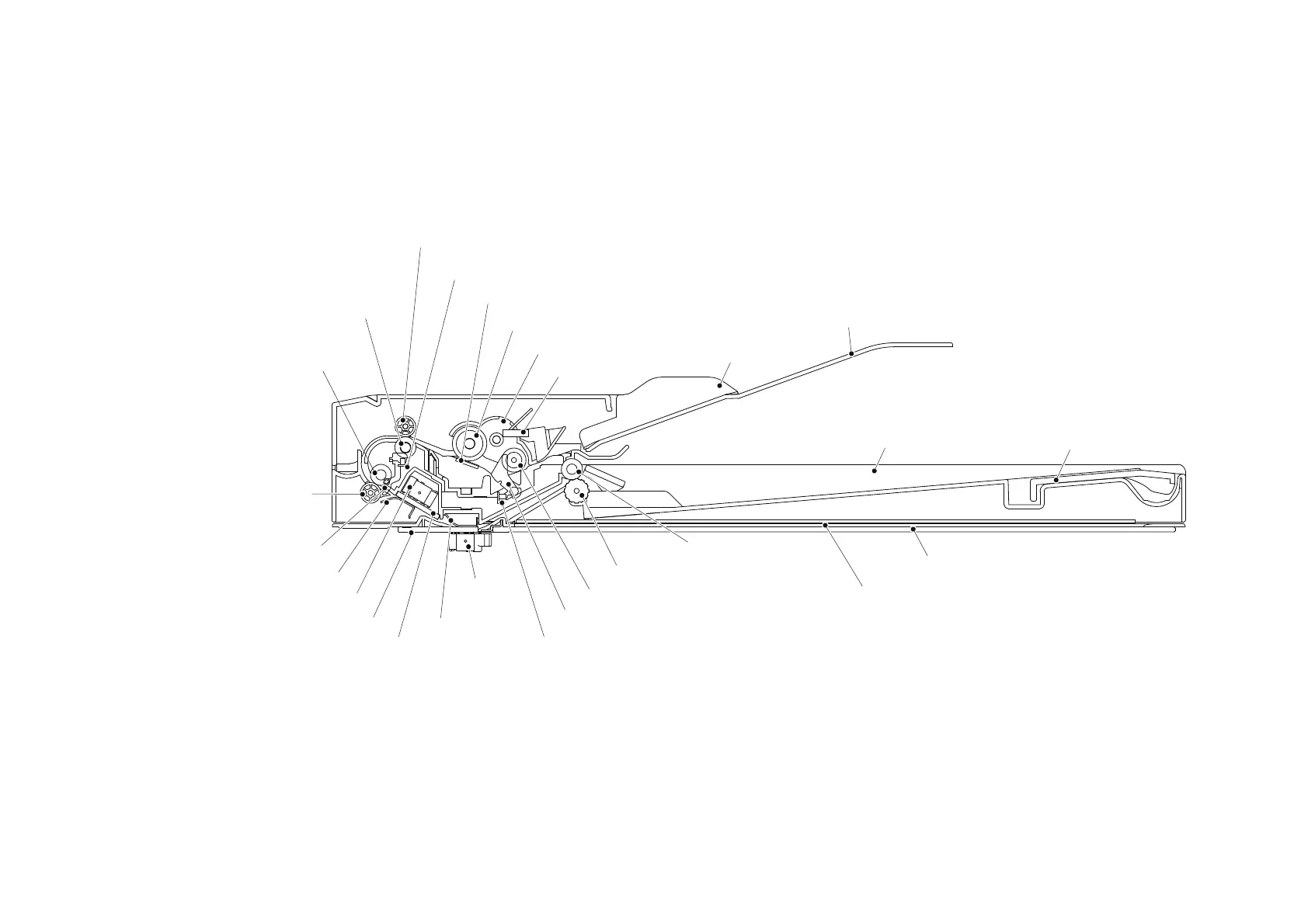

2.1.2 Scanner part
 Common to Legal / A4 models
Fig. 2-3
Document feed roller 1
Document pinch roller 1
Document separation pad
Document feed roller 2
Document pinch roller 2
Document scanning position actuator
Document scanning position sensor PCB
Second side document hold
Second side CIS unit
Scanner glass strip (First side CIS glass)
Scanner glass strip (Second side CIS glass)
Document separate roller
Document separate roller ASSY
ADF cover sensor
Document guide
Document tray
Document cover
Document stopper
Scanner glass
Document eject roller
Document pinch roller
First side
document hold
First side
CIS unit
Document detection sensor PCB
Document detection actuator
Document pick-up roller
Document sponge

Brother DCP-L5652DN Specifications

General

Printer Type	Laser
Functions	Print, Copy, Scan
Automatic Duplex Printing	Yes
ADF Capacity	50 sheets
Memory	256 MB
Processor	800 MHz
Monthly Duty Cycle	Up to 50, 000 pages
Print Speed	42 ppm
Print Resolution	1200 x 1200 dpi
Paper Input Capacity	250 sheets
Scanner Resolution	Up to 1200 x 1200 dpi
Connectivity	USB, Ethernet
Mobile Printing	Brother iPrint&Scan, Google Cloud Print, AirPrint, Mopria
Toner Yield	Standard: 3, 000 pages, High Yield: 8, 000 pages
