Brother DCP-L5652DN Service Manual

3-134
Confidential
10.10 LT paper feed sensor PCB ASSY
(1) Remove the two taptite cup S M3x8 SR screws (1a) (1b),and remove the center FG
plate R from the LT frame R unit.
(2) Remove the five taptite cup S M3x8 SR screws, and remove the paper feed frame FG
plate R and LT paper feed frame from the LT frame R unit.

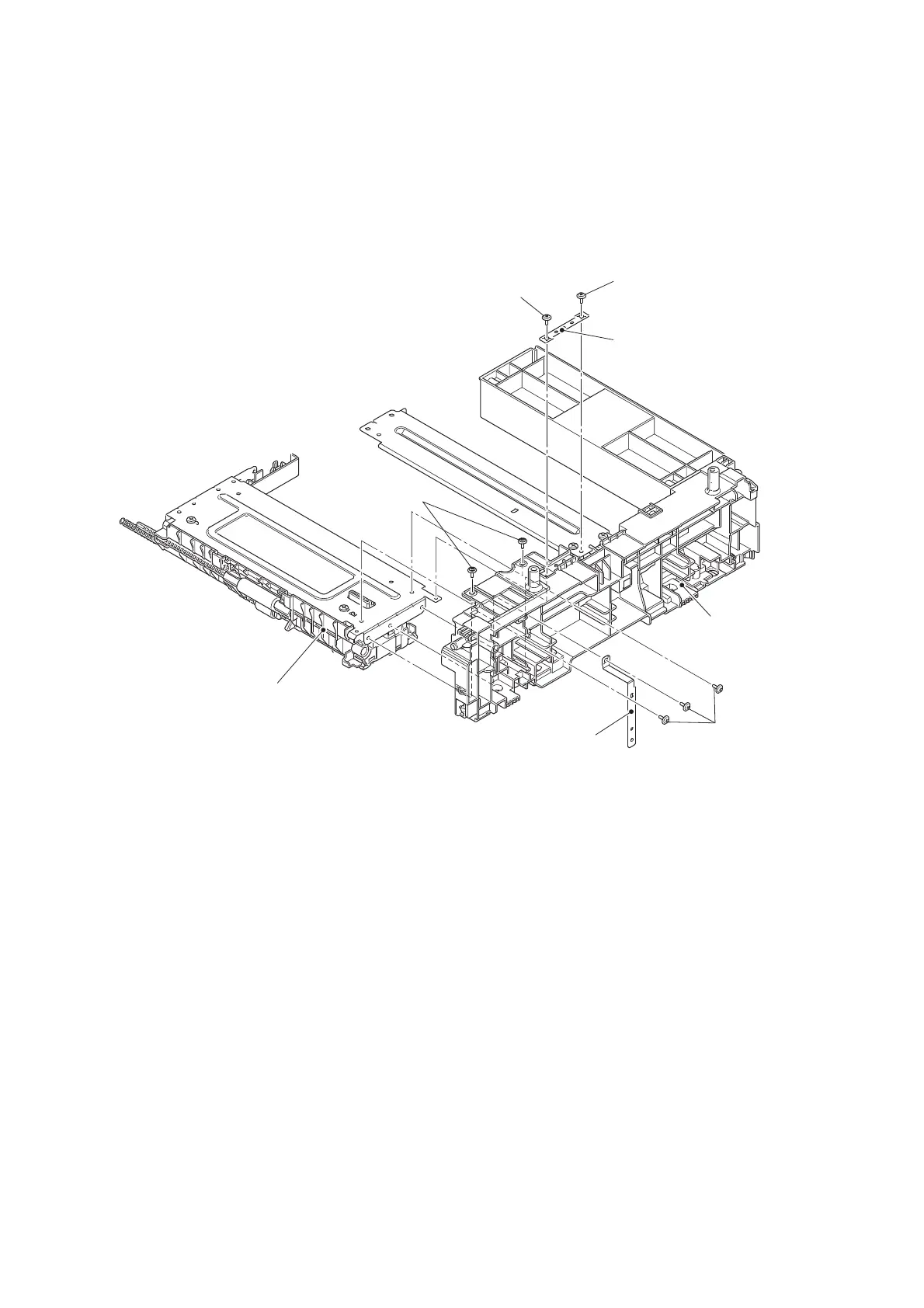

Fig. 3-136
LT paper feed frame
Paper feed frame FG plate R
Center FG plate R
Taptite cup S M3x8 SR (1b)
Taptite cup S
M3×8 SR
Taptite cup S M3×8 SR
Taptite cup S M3x8 SR (1a)
LT frame R unit

Brother DCP-L5652DN Specifications

General

Printer Type	Laser
Functions	Print, Copy, Scan
Automatic Duplex Printing	Yes
ADF Capacity	50 sheets
Memory	256 MB
Processor	800 MHz
Monthly Duty Cycle	Up to 50, 000 pages
Print Speed	42 ppm
Print Resolution	1200 x 1200 dpi
Paper Input Capacity	250 sheets
Scanner Resolution	Up to 1200 x 1200 dpi
Connectivity	USB, Ethernet
Mobile Printing	Brother iPrint&Scan, Google Cloud Print, AirPrint, Mopria
Toner Yield	Standard: 3, 000 pages, High Yield: 8, 000 pages
