3-113
Confidential
9.42 T1 paper feed sensor PCB ASSY /
T1 paper feed actuator / T1 paper feed actuator spring
(1) Release the T1 paper feed sensor harness from the securing fixtures.
(2) Remove the taptite bind B M3x10 screw, and remove the T1 paper feed actuator holder
ASSY.
(3) Remove the tray lock R.

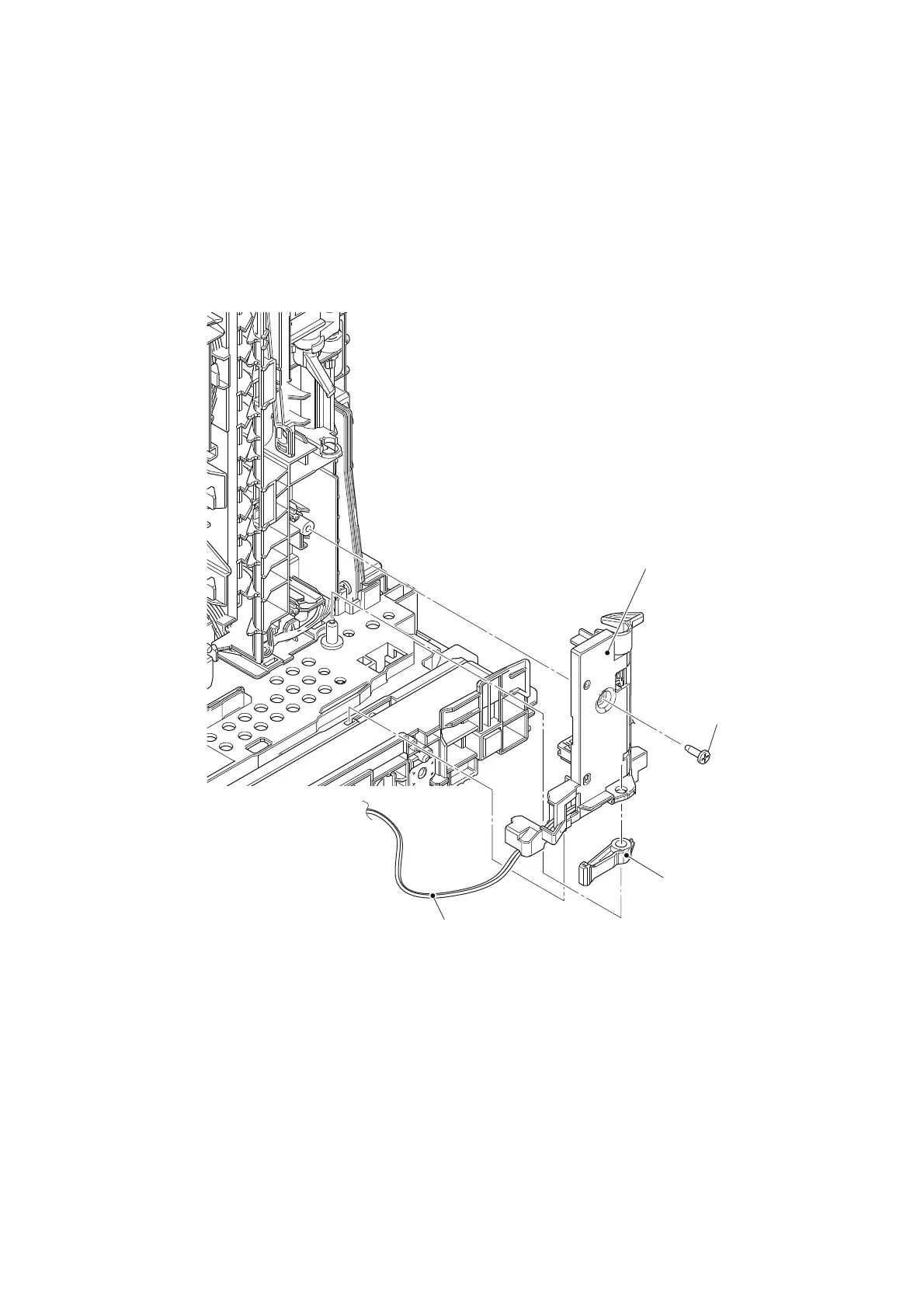

Fig. 3-114
Harness routing: Refer to “13. Bottom side of the machine (High-voltage power supply PCB
ASSY)”.
T1 paper feed actuator holder ASSY
Taptite bind B M3x10
T1 paper feed sensor harness
Tray lock R
