Brother DCP-L5652DN Service Manual

3-40
Confidential
9.10 ADF/document scanner unit
(1) Remove the tape to remove the modem FG harness L from the main shield plate.
(2) Remove the three screw cup M3x8 screws (Black), and remove the ADF FG harness,
FB FG harness, modem FG harness L and main shield plate.
(3) Remove the taptite cup S M3x8 SR screw, and remove the panel FG harness.

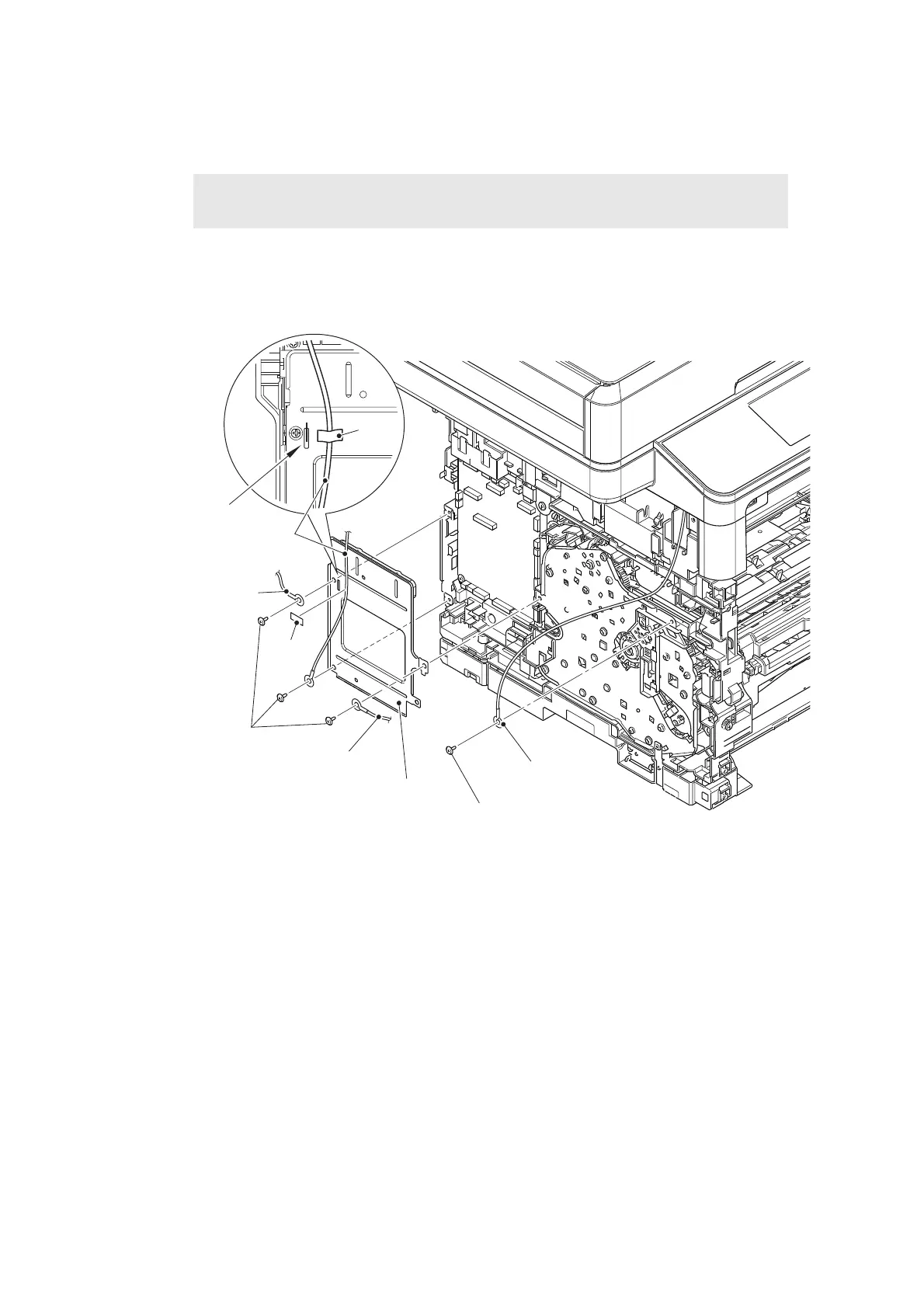

Fig. 3-30
Harness routing: Refer to “1. ADF unit - Main PCB ASSY”, “2. Document scanner unit -
Main PCB ASSY”.
Assembling Note:
• Attach the modem FG harness L on the right side than “A” using a tape.
Panel FG harness
Taptite cup S M3x8 SR
Screw cup M3x8
(Black)
ADF FG harness
Modem FG harness L
Main shield plate
FB FG harness
Tape
“A”
Tape

Brother DCP-L5652DN Specifications

General

Printer Type	Laser
Functions	Print, Copy, Scan
Automatic Duplex Printing	Yes
ADF Capacity	50 sheets
Memory	256 MB
Processor	800 MHz
Monthly Duty Cycle	Up to 50, 000 pages
Print Speed	42 ppm
Print Resolution	1200 x 1200 dpi
Paper Input Capacity	250 sheets
Scanner Resolution	Up to 1200 x 1200 dpi
Connectivity	USB, Ethernet
Mobile Printing	Brother iPrint&Scan, Google Cloud Print, AirPrint, Mopria
Toner Yield	Standard: 3, 000 pages, High Yield: 8, 000 pages
