Brother DCP-L5652DN Service Manual

3-130
Confidential
10.8 LT release clutch
 For models with 520-sheet
(1) Remove the two taptite bind B M4×12 screws, and remove the under bar front.
(2) Remove the taptite cup S M3x8 SR screw, and remove the under bar ground plate L
(520).
 For models with 250-sheet
(3) Remove the two taptite bind B M4x12 screws and two taptite cup S M3x8 SR screws
(3a) (3b) to remove the under bar front.
 Common to all models
(4) Remove the two taptite bind B M4x12 screws, and remove the under bar.

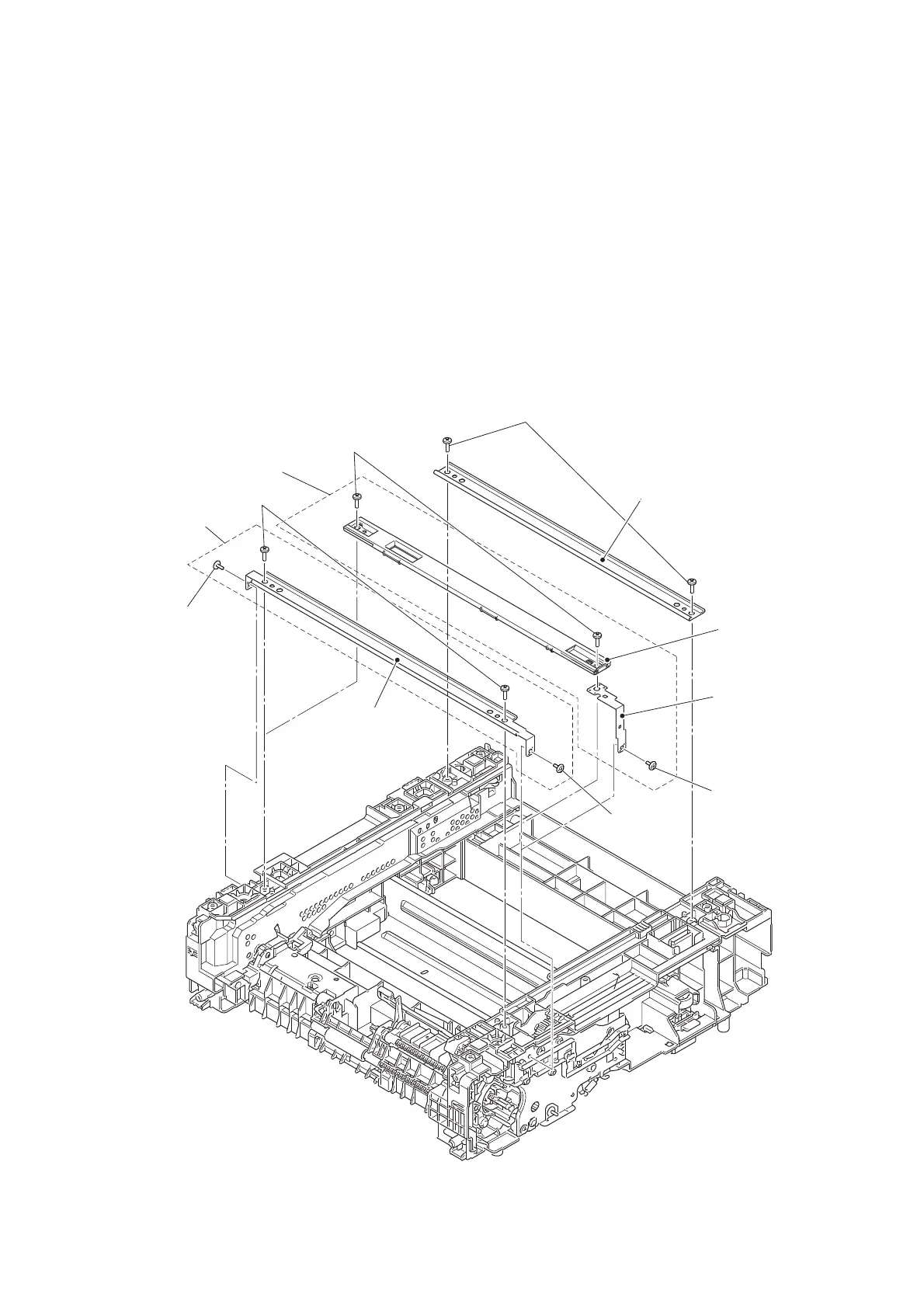

Fig. 3-132
Under bar
Under bar front
Taptite bind B M4x12
Taptite bind B M4x12
Taptite cup S
M3x8 SR (3a)
Taptite cup S
M3×8 SR (3b)
Under bar front
Under bar
ground plate L
(520)
Taptite cup S
M3×8 SR
Taptite bind B M4x12
For models with 520-sheet
For models with
250-sheet

Brother DCP-L5652DN Specifications

General

Printer Type	Laser
Functions	Print, Copy, Scan
Automatic Duplex Printing	Yes
ADF Capacity	50 sheets
Memory	256 MB
Processor	800 MHz
Monthly Duty Cycle	Up to 50, 000 pages
Print Speed	42 ppm
Print Resolution	1200 x 1200 dpi
Paper Input Capacity	250 sheets
Scanner Resolution	Up to 1200 x 1200 dpi
Connectivity	USB, Ethernet
Mobile Printing	Brother iPrint&Scan, Google Cloud Print, AirPrint, Mopria
Toner Yield	Standard: 3, 000 pages, High Yield: 8, 000 pages
