Brother DCP-L5652DN Service Manual

3-131
Confidential
(5) Remove the two taptite cup S M3x8 SR screws (5a) (5b), and remove the center FG
plate L from the LT frame L unit.
(6) Remove the two taptite cup S M3x8 SR screws, and remove the under bar ground plate
L (250) from the LT frame L unit.
(7) Remove the four taptite bind B M4x12 screws and six taptite cup S M3x8 SR screws (7a)
(7b). Remove the LT frame L unit, and disconnect the two harnesses from the LT frame
L unit.

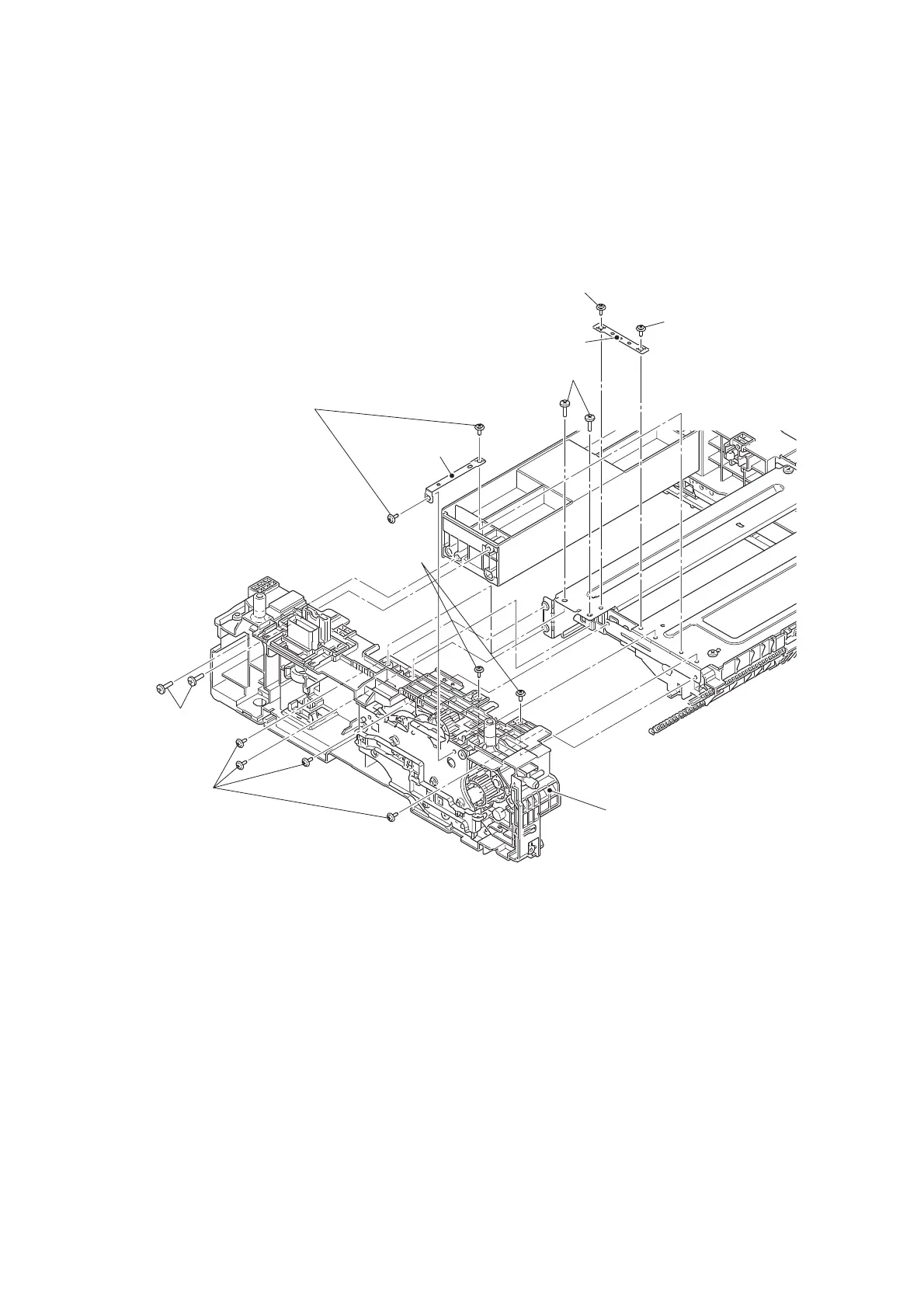

Fig. 3-133
LT frame L unit
Under bar ground
plate L (250)
Center FG plate L
Taptite cup S M3x8 SR (7b)
Taptite cup S M3x8 SR
Taptite bind B M4x12
Taptite cup S M3x8 SR
(5b)
Taptite cup S
M3×8 SR (7a)
Taptite bind
B M4x12
Taptite cup S M3x8 SR (5a)

Brother DCP-L5652DN Specifications

General

Printer Type	Laser
Functions	Print, Copy, Scan
Automatic Duplex Printing	Yes
ADF Capacity	50 sheets
Memory	256 MB
Processor	800 MHz
Monthly Duty Cycle	Up to 50, 000 pages
Print Speed	42 ppm
Print Resolution	1200 x 1200 dpi
Paper Input Capacity	250 sheets
Scanner Resolution	Up to 1200 x 1200 dpi
Connectivity	USB, Ethernet
Mobile Printing	Brother iPrint&Scan, Google Cloud Print, AirPrint, Mopria
Toner Yield	Standard: 3, 000 pages, High Yield: 8, 000 pages
