Brother DCP-L5652DN Service Manual

3-132
Confidential
(8) Release the LT release clutch harness from the securing fixtures.
(9) Remove the three taptite bind B M4x12 screws. Remove the LT drive ASSY from the LT
frame L unit, and pull out the LT release clutch harness from the hole.
(10) Remove the LT release clutch from the LT frame L unit.
(11) Remove the LT clutch shaft and LT gear 22 from the LT release clutch.

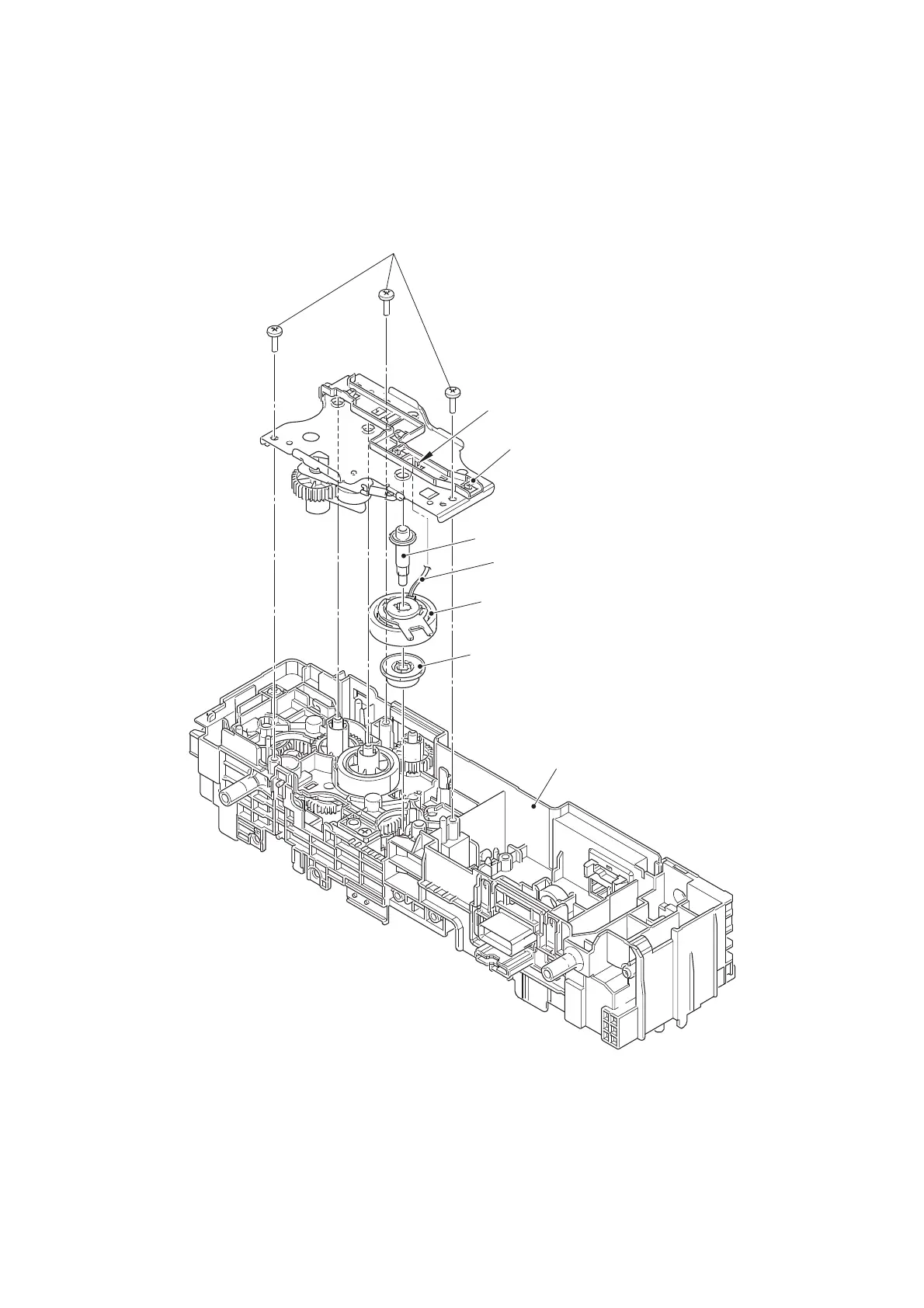

Fig. 3-134
LT drive ASSY
LT clutch shaft
LT release clutch
LT gear 22
LT frame L unit
Taptite bind B M4x12
Hole
LT release clutch harness

Brother DCP-L5652DN Specifications

General

Printer Type	Laser
Functions	Print, Copy, Scan
Automatic Duplex Printing	Yes
ADF Capacity	50 sheets
Memory	256 MB
Processor	800 MHz
Monthly Duty Cycle	Up to 50, 000 pages
Print Speed	42 ppm
Print Resolution	1200 x 1200 dpi
Paper Input Capacity	250 sheets
Scanner Resolution	Up to 1200 x 1200 dpi
Connectivity	USB, Ethernet
Mobile Printing	Brother iPrint&Scan, Google Cloud Print, AirPrint, Mopria
Toner Yield	Standard: 3, 000 pages, High Yield: 8, 000 pages
