Brother DCP-L5652DN Service Manual

3-107
Confidential
9.38 LT/TT connector
 For models with 520-sheet T1
(1) Remove the three taptite bind B M4x30 screws, and remove the bottom frame L from the
main frame L ASSY. Then pull out the LT/TT connector harness from the hole of the
main frame L ASSY.
(2) Release the two hooks A, and remove the LT/TT connector from the bottom frame L.
 For models with 250-sheet T1
(3) Release the two hooks A, and remove the LT/TT connector from the main frame L ASSY.
 Common to all models
(4) Release the two hooks B to disconnect the LT/TT connector harness from the LT/TT
connector.

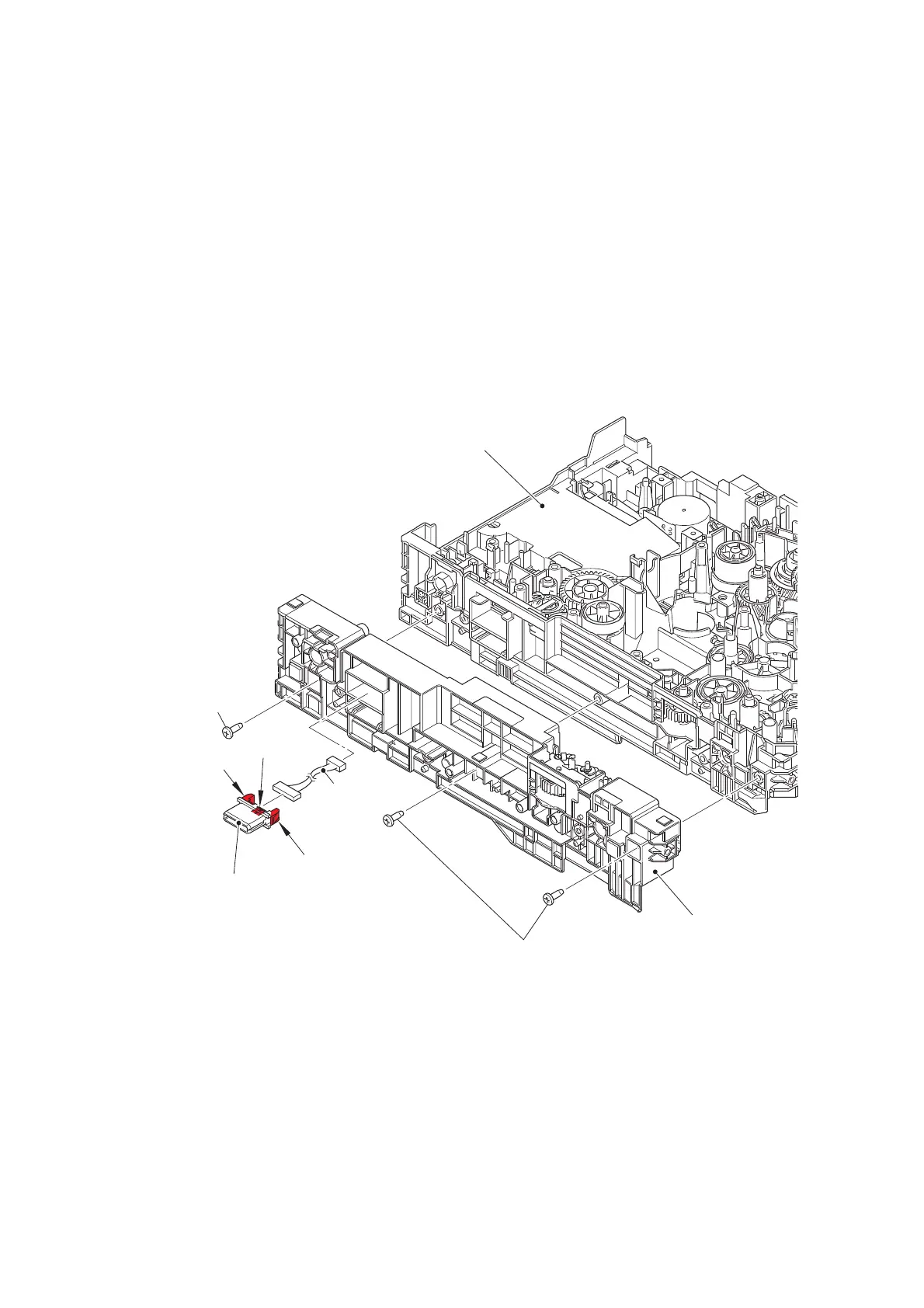

Fig. 3-107
Bottom frame L
Main frame L ASSY
Taptite bind B M4x30
LT/TT connector
harness
Taptite bind B M4x30
Hook A
Hook A
LT/TT connector
Hooks B

Brother DCP-L5652DN Specifications

General

Printer Type	Laser
Functions	Print, Copy, Scan
Automatic Duplex Printing	Yes
ADF Capacity	50 sheets
Memory	256 MB
Processor	800 MHz
Monthly Duty Cycle	Up to 50, 000 pages
Print Speed	42 ppm
Print Resolution	1200 x 1200 dpi
Paper Input Capacity	250 sheets
Scanner Resolution	Up to 1200 x 1200 dpi
Connectivity	USB, Ethernet
Mobile Printing	Brother iPrint&Scan, Google Cloud Print, AirPrint, Mopria
Toner Yield	Standard: 3, 000 pages, High Yield: 8, 000 pages
