Brother DCP-L5652DN Service Manual

3-35
Confidential
9.6 MP cover ASSY
(1) Open the MP cover ASSY.
(2) Remove the two hooks on the MP paper guide ASSY from the two bosses on the front
cover ASSY.

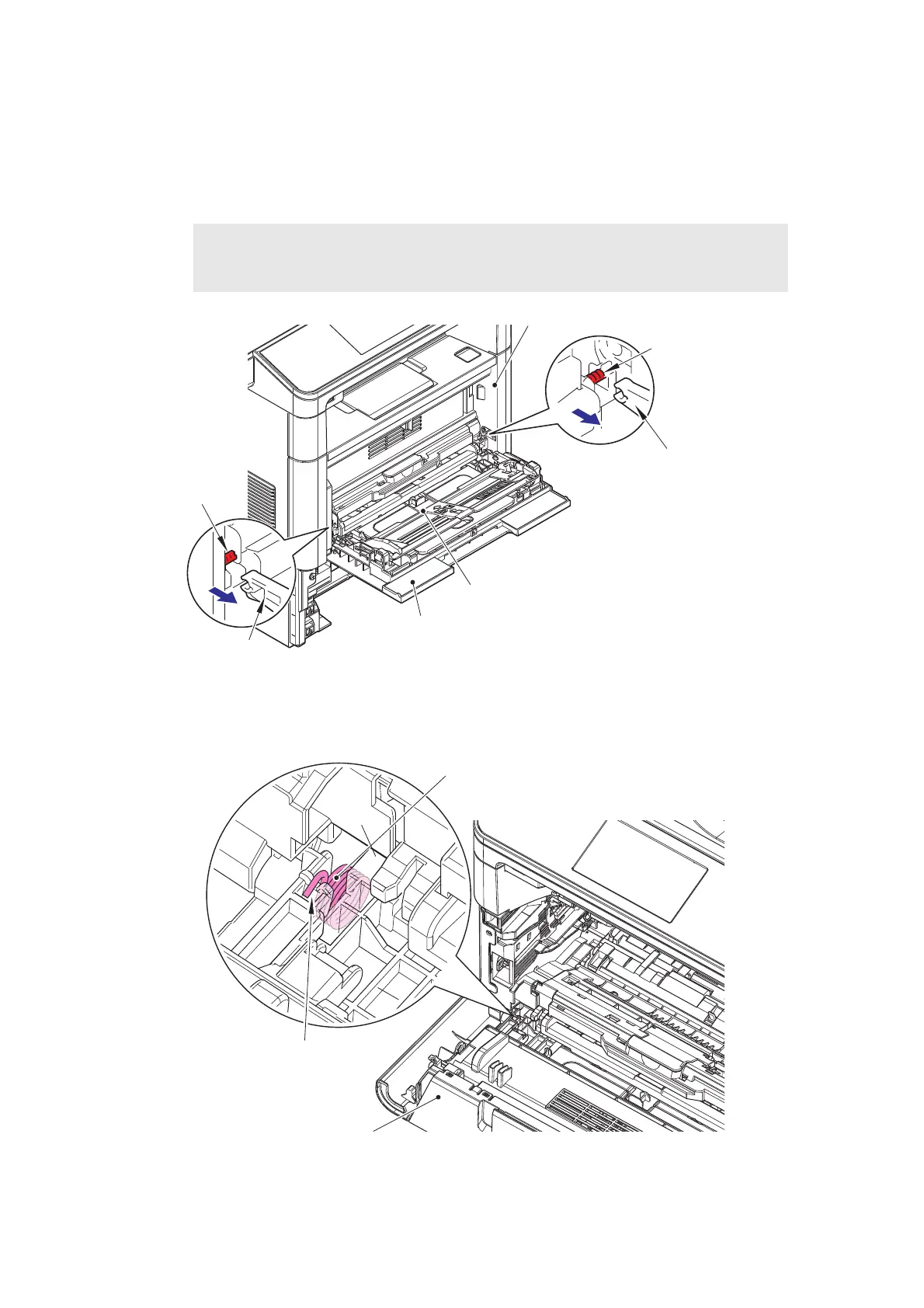

Fig. 3-22
(3) Open the front cover ASSY, and release the hook on the MP damper spring from the
front cover ASSY.
Fig. 3-23
Note:
• When removing the MP paper guide ASSY from the bosses on the front cover
ASSY, pull it out strongly in the direction of the arrows.
Front cover ASSY
Boss
MP paper guide ASSY
MP cover ASSY
Hook
(MP paper
guide ASSY)
Boss
Hook
(MP paper guide ASSY)
MP damper spring
Front cover ASSY
Hook

Brother DCP-L5652DN Specifications

General

Printer Type	Laser
Functions	Print, Copy, Scan
Automatic Duplex Printing	Yes
ADF Capacity	50 sheets
Memory	256 MB
Processor	800 MHz
Monthly Duty Cycle	Up to 50, 000 pages
Print Speed	42 ppm
Print Resolution	1200 x 1200 dpi
Paper Input Capacity	250 sheets
Scanner Resolution	Up to 1200 x 1200 dpi
Connectivity	USB, Ethernet
Mobile Printing	Brother iPrint&Scan, Google Cloud Print, AirPrint, Mopria
Toner Yield	Standard: 3, 000 pages, High Yield: 8, 000 pages
