Brother DCP-L5652DN Service Manual

3-64
Confidential

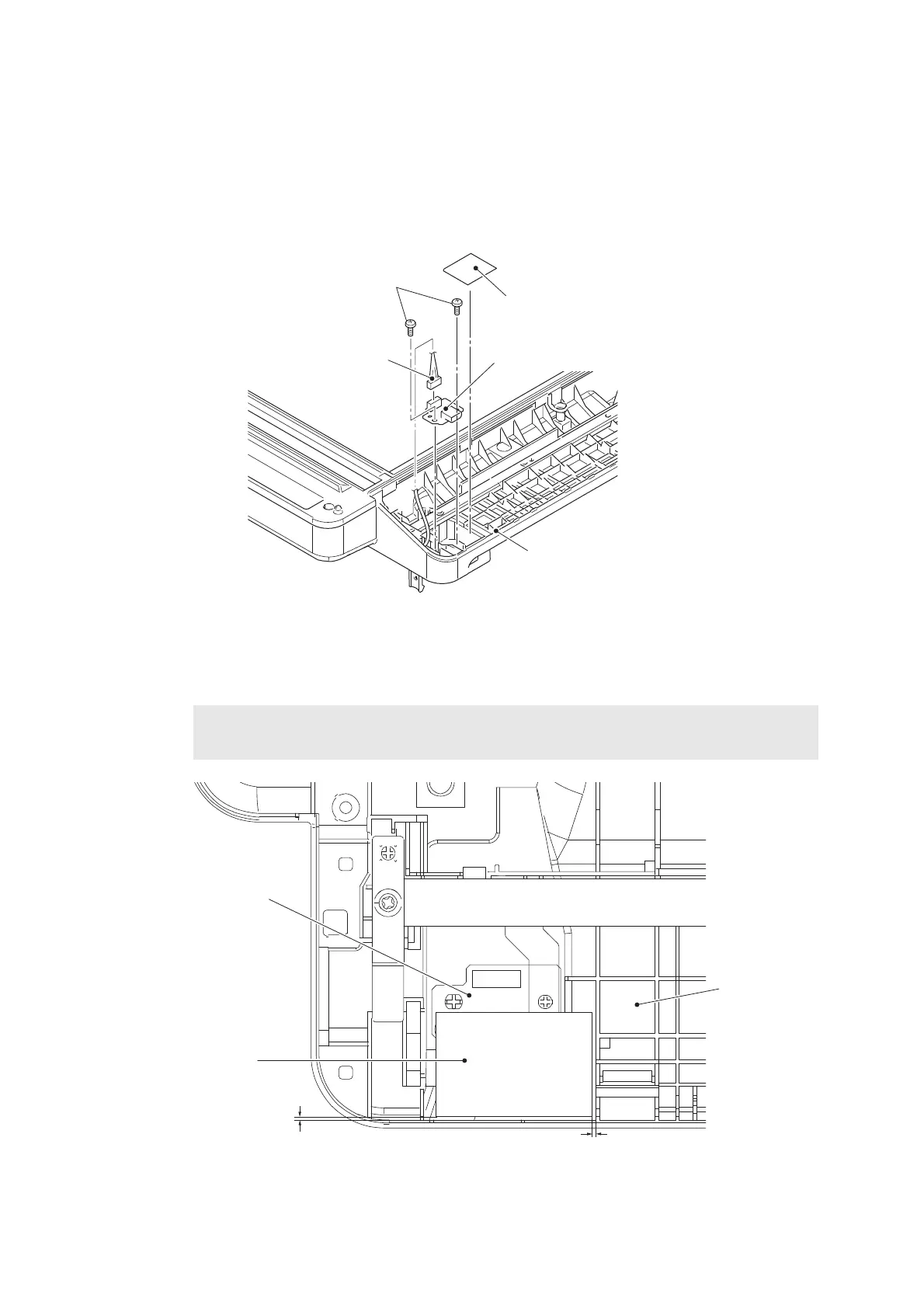

9.13 USB host PCB ASSY
(1) Remove the USB protection sheet.
(2) Remove the two taptite bind B M4x12 screws to remove the USB host PCB ASSY from
the document scanner unit. Disconnect the USB host harness from the USB host PCB
ASSY.
Fig. 3-59
Harness routing: Refer to “5. Document scanner unit”.
Fig. 3-60
Assembling Note:
• Attach the USB protection sheet at the position shown in the illustration below.
USB protection sheet
Taptite bind B M4x12
USB host harness
USB host PCB ASSY
Document scanner unit
USB protection sheet
USB host PCB ASSY
Document
scanner unit
0 to 1 mm
0 to 1 mm

Brother DCP-L5652DN Specifications

General

Printer Type	Laser
Functions	Print, Copy, Scan
Automatic Duplex Printing	Yes
ADF Capacity	50 sheets
Memory	256 MB
Processor	800 MHz
Monthly Duty Cycle	Up to 50, 000 pages
Print Speed	42 ppm
Print Resolution	1200 x 1200 dpi
Paper Input Capacity	250 sheets
Scanner Resolution	Up to 1200 x 1200 dpi
Connectivity	USB, Ethernet
Mobile Printing	Brother iPrint&Scan, Google Cloud Print, AirPrint, Mopria
Toner Yield	Standard: 3, 000 pages, High Yield: 8, 000 pages
