Brother DCP-L5652DN Service Manual

3-63
Confidential

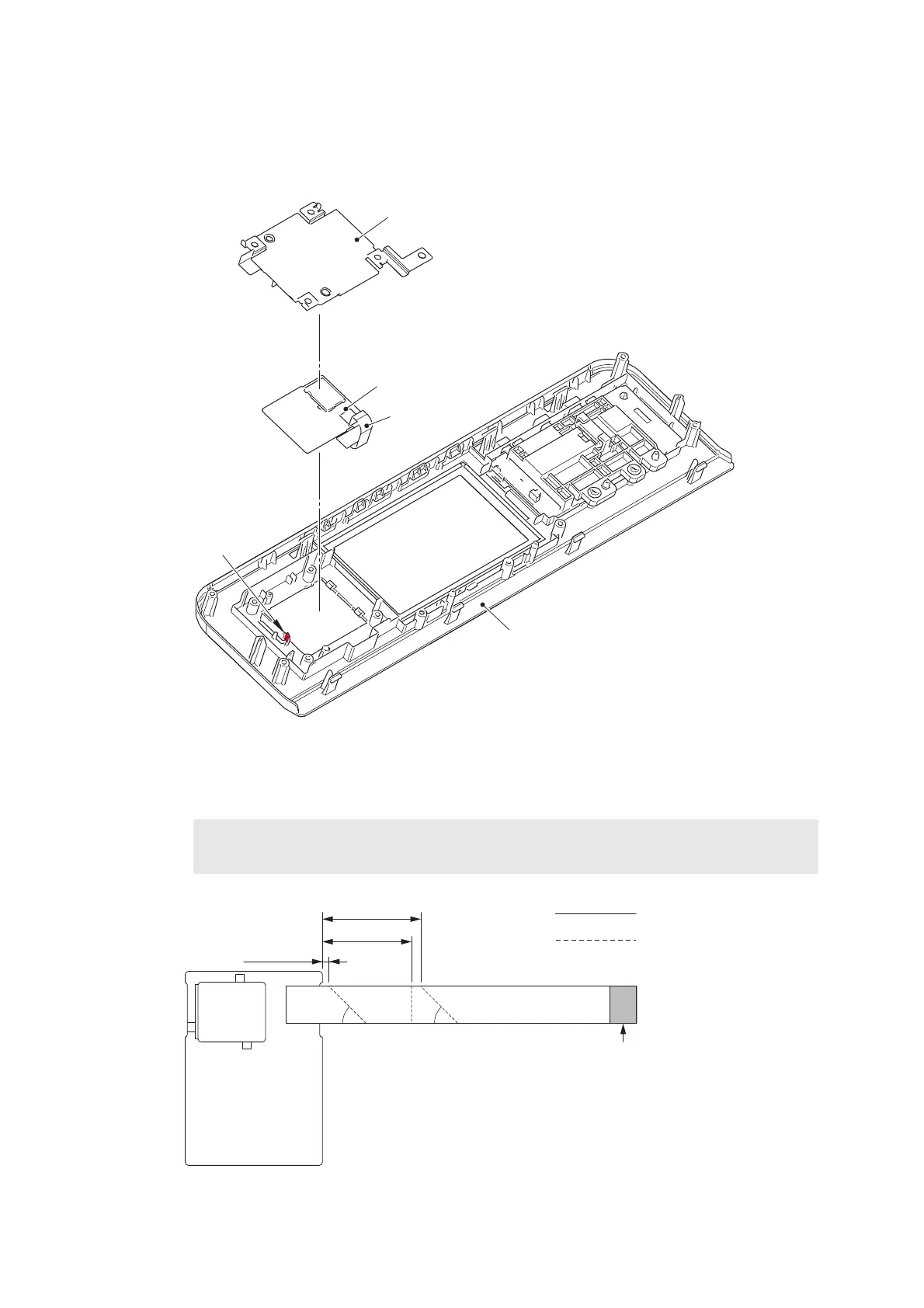

9.12.5NFC PCB ASSY (Models with NFC only)
(1) Remove the shield plate base / protection film from the panel unit.
(2) Release the hook to remove the NFC PCB ASSY from the panel unit.
Fig. 3-57
Harness routing: Refer to “7. Panel unit (3.7 inch model)”.
Fig. 3-58
Assembling Note:
• Fold the NFC flat cable at the positions shown in the figure below.
Panel unit
Hook
NFC PCB ASSY
Shield plate base / Protection film
NFC flat
cable
2±1
45°45°
29±1
26±1
Mountain fold
Valley fold
Panel PCB
side
Reinforcing plate

Brother DCP-L5652DN Specifications

General

Printer Type	Laser
Functions	Print, Copy, Scan
Automatic Duplex Printing	Yes
ADF Capacity	50 sheets
Memory	256 MB
Processor	800 MHz
Monthly Duty Cycle	Up to 50, 000 pages
Print Speed	42 ppm
Print Resolution	1200 x 1200 dpi
Paper Input Capacity	250 sheets
Scanner Resolution	Up to 1200 x 1200 dpi
Connectivity	USB, Ethernet
Mobile Printing	Brother iPrint&Scan, Google Cloud Print, AirPrint, Mopria
Toner Yield	Standard: 3, 000 pages, High Yield: 8, 000 pages
