Brother DCP-L5652DN Service Manual

3-62
Confidential
9.12.4Touch panel ASSY
(1) Disconnect the touch panel flat cable from the key PCB ASSY.
(2) Remove the touch panel ASSY from the panel unit.

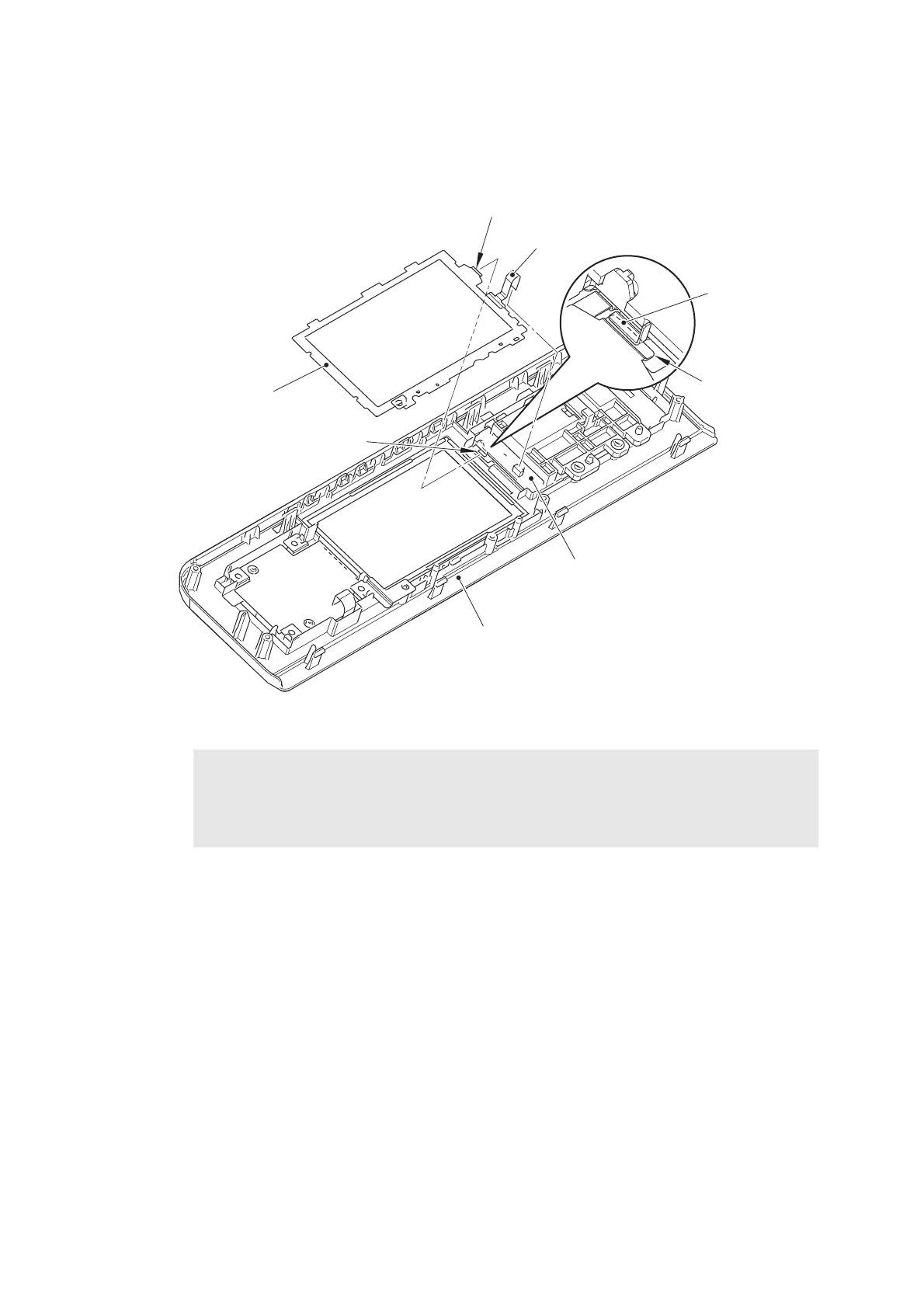

Fig. 3-56
Assembling Note:
• When assembling the touch panel ASSY, put the section A under the plate.
• If you replaced the touch panel ASSY, refer to “4. IF YOU REPLACE THE LCD PANEL
ASSY OR PANEL PCB” in chapter 4 and configure the setting.
Touch panel flat cable
Key PCB ASSY
Panel unit
Touch panel ASSY
Plate
A
A
Plate

Brother DCP-L5652DN Specifications

General

Printer Type	Laser
Functions	Print, Copy, Scan
Automatic Duplex Printing	Yes
ADF Capacity	50 sheets
Memory	256 MB
Processor	800 MHz
Monthly Duty Cycle	Up to 50, 000 pages
Print Speed	42 ppm
Print Resolution	1200 x 1200 dpi
Paper Input Capacity	250 sheets
Scanner Resolution	Up to 1200 x 1200 dpi
Connectivity	USB, Ethernet
Mobile Printing	Brother iPrint&Scan, Google Cloud Print, AirPrint, Mopria
Toner Yield	Standard: 3, 000 pages, High Yield: 8, 000 pages
