Brother DCP-L5652DN Service Manual

3-56
Confidential
9.12 Panel unit
9.12.1Panel unit
(1) Remove the four taptite cup B M3x10 screws.
(2) Release the three hooks to remove the panel unit. Disconnect the panel flat cable from
the panel PCB ASSY.
(3) Release the panel flat cable from the securing fixtures.

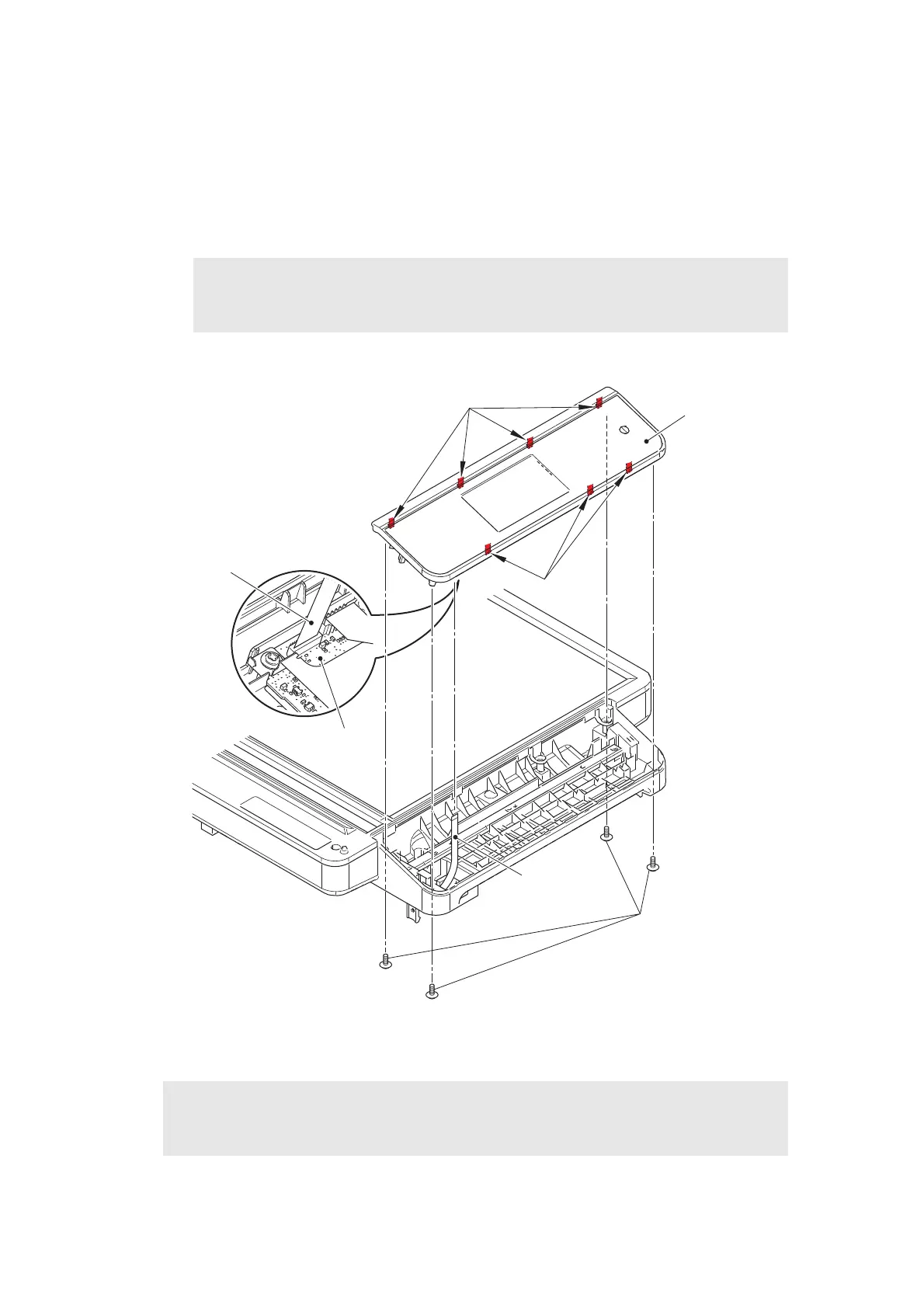

Fig. 3-50
Harness routing: Refer to “5. Document scanner unit”, “6. Panel unit (4.85 inch model)”.
Note:
• Flat cable is connected to the panel unit. Do not pull the panel unit too hard when
removing it.
Assembling Note:
• If you replaced the panel unit, refer to “4. IF YOU REPLACE THE LCD PANEL ASSY
OR PANEL PCB” in chapter 4 and configure the setting.
Panel unit
Hooks
Hooks
Taptite cup B M3x10
Panel PCB ASSY
Panel flat cable
Panel flat cable

Brother DCP-L5652DN Specifications

General

Printer Type	Laser
Functions	Print, Copy, Scan
Automatic Duplex Printing	Yes
ADF Capacity	50 sheets
Memory	256 MB
Processor	800 MHz
Monthly Duty Cycle	Up to 50, 000 pages
Print Speed	42 ppm
Print Resolution	1200 x 1200 dpi
Paper Input Capacity	250 sheets
Scanner Resolution	Up to 1200 x 1200 dpi
Connectivity	USB, Ethernet
Mobile Printing	Brother iPrint&Scan, Google Cloud Print, AirPrint, Mopria
Toner Yield	Standard: 3, 000 pages, High Yield: 8, 000 pages
