Brother DCP-L5652DN Service Manual

3-7
Confidential
5. LUBRICATION

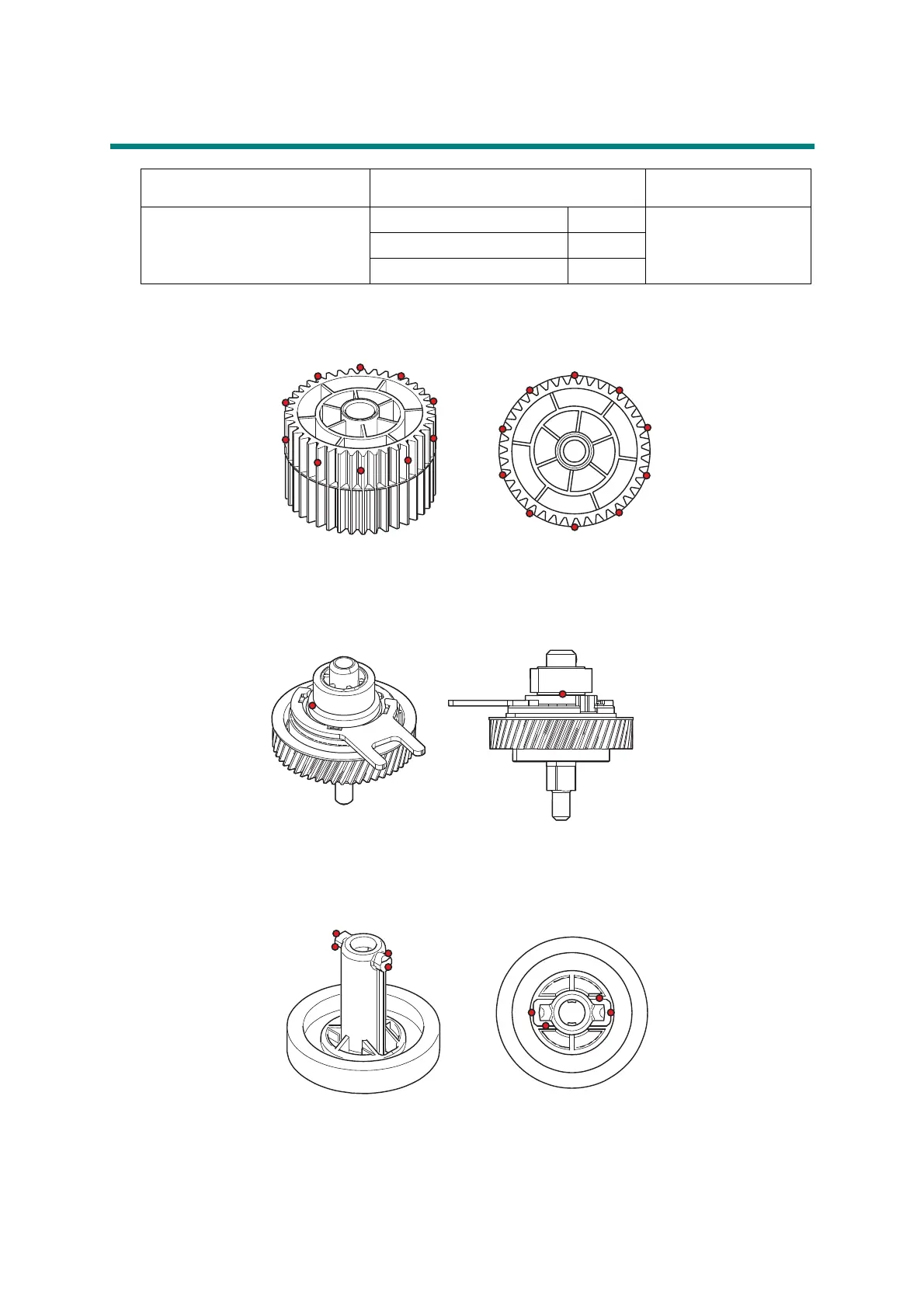

 Fuser drive gear 39
Fig. 3-3
 Develop clutch 51R
Fig. 3-4
 Develop joint gear 37
Fig. 3-5
Lubricating oil type
(Maker name)
Lubrication point Quantity of lubrication
FLOIL BG-10KS (Kanto Kasei)
Fuser drive gear 39 10 places
1.5 - 2.0 mm dia. ballDevelop clutch 51R 1 place
Develop joint gear 37 4 places

Brother DCP-L5652DN Specifications

General

Printer Type	Laser
Functions	Print, Copy, Scan
Automatic Duplex Printing	Yes
ADF Capacity	50 sheets
Memory	256 MB
Processor	800 MHz
Monthly Duty Cycle	Up to 50, 000 pages
Print Speed	42 ppm
Print Resolution	1200 x 1200 dpi
Paper Input Capacity	250 sheets
Scanner Resolution	Up to 1200 x 1200 dpi
Connectivity	USB, Ethernet
Mobile Printing	Brother iPrint&Scan, Google Cloud Print, AirPrint, Mopria
Toner Yield	Standard: 3, 000 pages, High Yield: 8, 000 pages
