Brother DCP-L5652DN Service Manual

3-32
Confidential

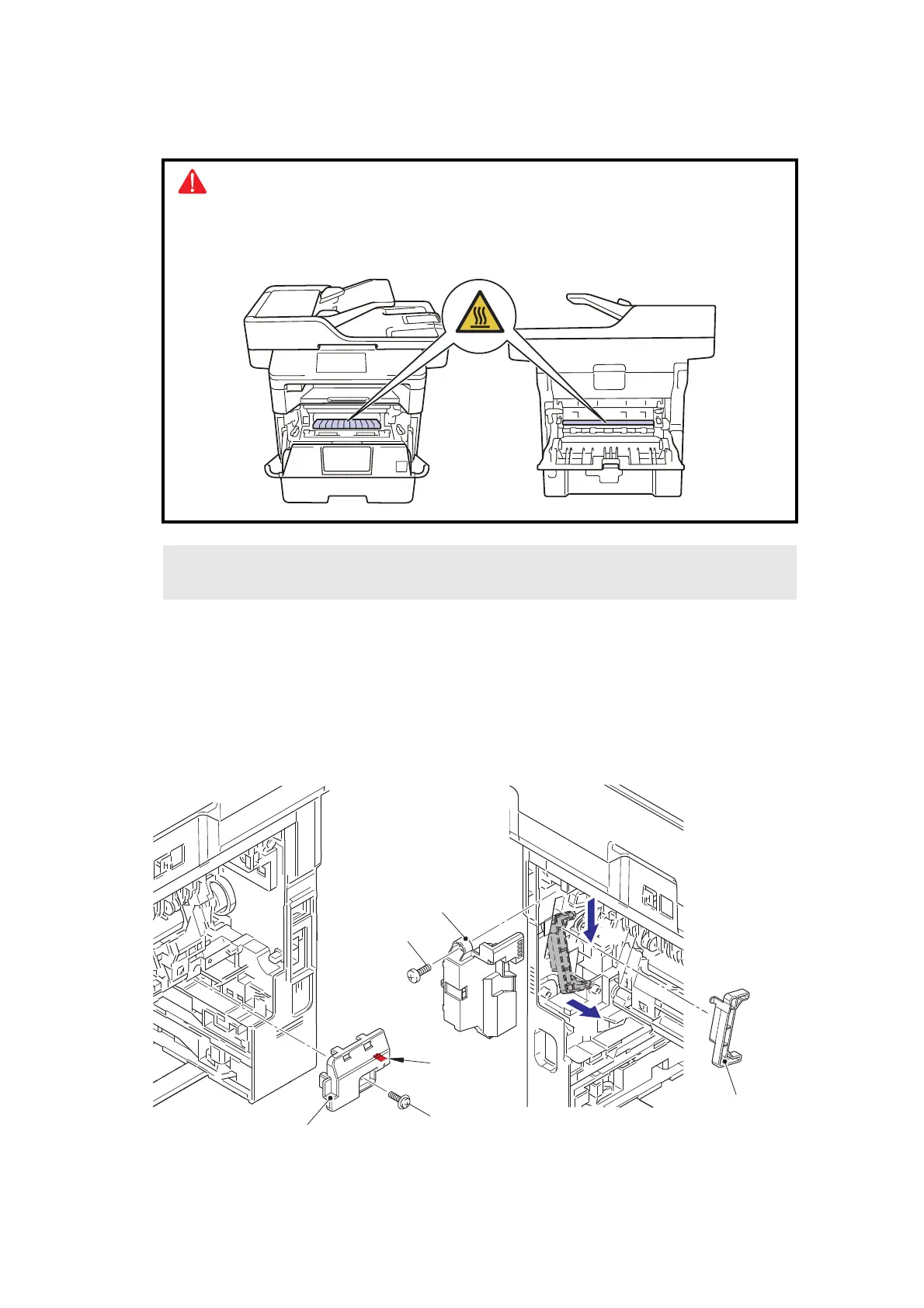

9.5 Fuser unit
(1) Remove the taptite bind B M4x12 screw, and remove the fuser unit line cover R.
(2) Open the front cover, and release the nip of the pressure roller.
(3) Slide the lower rear nip release link in the direction of the arrow 3b while pulling it in the
direction of the arrow 3a to remove the rear nip release link.
(4) Remove the taptite pan B M4x14 screw. Release the hook, and remove the fuser unit
line cover L.
Fig. 3-18
CAUTION
Some parts inside the machine are extremely hot immediately after the machine is used.
When opening the front cover ASSY or back cover to access any parts inside the
machine, never touch the shaded parts shown in the following figures.
Note:
• Do not touch the fuser unit film directly. It may cause the fuser unit failure.
Fuser unit
line cover R
Fuser unit line cover L
<Frame R side><Frame L side>
Rear nip release link
Taptite pan B M4x14
Taptite bind B M4x12
Hook
3a
3b

Brother DCP-L5652DN Specifications

General

Printer Type	Laser
Functions	Print, Copy, Scan
Automatic Duplex Printing	Yes
ADF Capacity	50 sheets
Memory	256 MB
Processor	800 MHz
Monthly Duty Cycle	Up to 50, 000 pages
Print Speed	42 ppm
Print Resolution	1200 x 1200 dpi
Paper Input Capacity	250 sheets
Scanner Resolution	Up to 1200 x 1200 dpi
Connectivity	USB, Ethernet
Mobile Printing	Brother iPrint&Scan, Google Cloud Print, AirPrint, Mopria
Toner Yield	Standard: 3, 000 pages, High Yield: 8, 000 pages
