Brother DCP-L5652DN Service Manual

7-2
Confidential
2. PERIODICAL REPLACEMENT PARTS
2.1 Preparation
 Disconnecting Cables and removing Accessories
Prior to proceeding with the disassembly procedure,
(1) Disconnect the following:
•AC cord
• USB cable (if connected)
• LAN cable (if connected)
• Line cord (if connected)
(2) Remove the following:
• Paper tray
• Toner cartridge and Drum unit
• Duplex tray
• LAN port cap

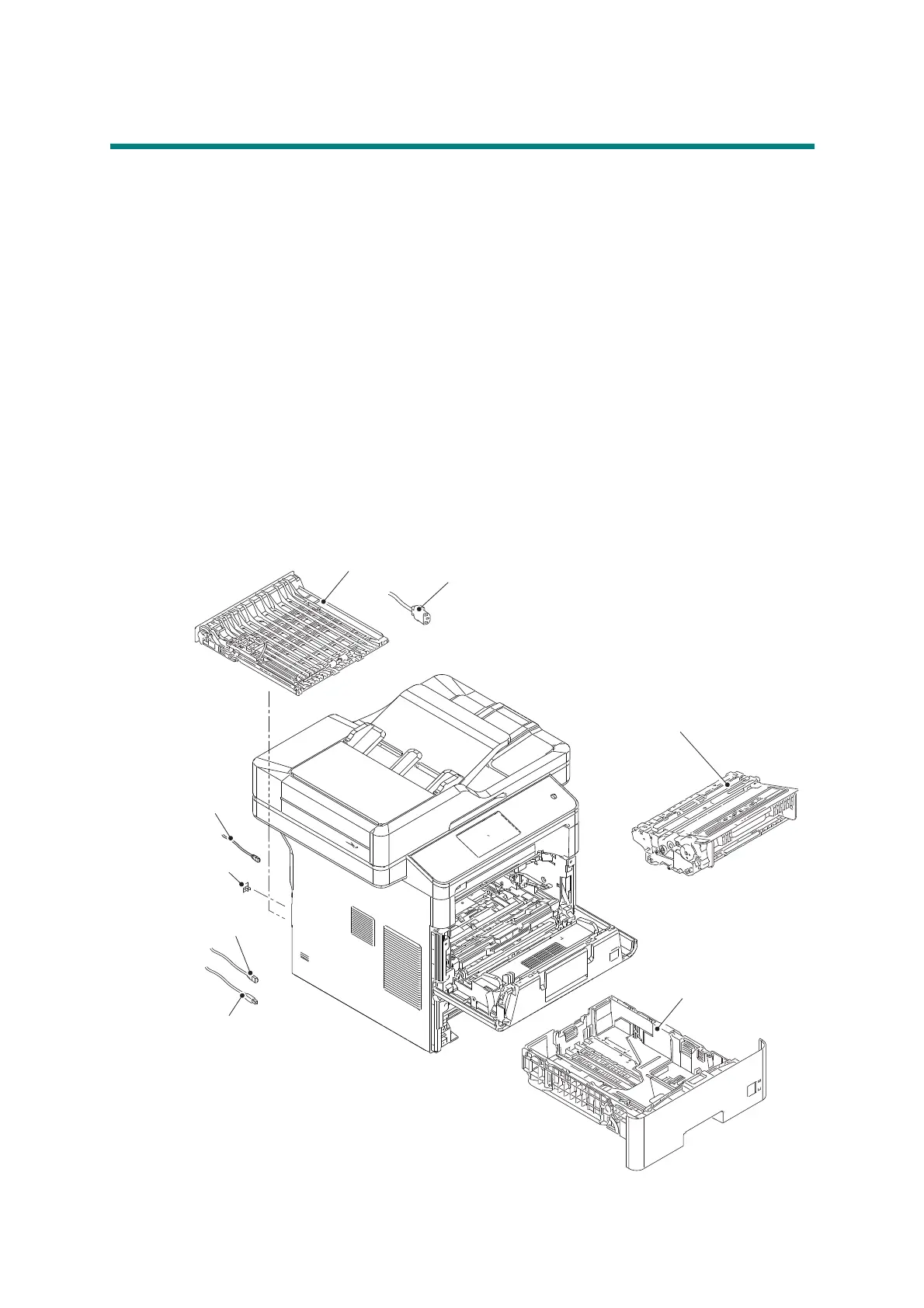

Fig. 7-1
Paper tray
Toner cartridge and Drum unit
Duplex tray
AC cord
LAN port cap
LAN cable
USB cable
Line cord

Brother DCP-L5652DN Specifications

General

Printer Type	Laser
Functions	Print, Copy, Scan
Automatic Duplex Printing	Yes
ADF Capacity	50 sheets
Memory	256 MB
Processor	800 MHz
Monthly Duty Cycle	Up to 50, 000 pages
Print Speed	42 ppm
Print Resolution	1200 x 1200 dpi
Paper Input Capacity	250 sheets
Scanner Resolution	Up to 1200 x 1200 dpi
Connectivity	USB, Ethernet
Mobile Printing	Brother iPrint&Scan, Google Cloud Print, AirPrint, Mopria
Toner Yield	Standard: 3, 000 pages, High Yield: 8, 000 pages
