Brother DCP-L5652DN Service Manual

3-114
Confidential

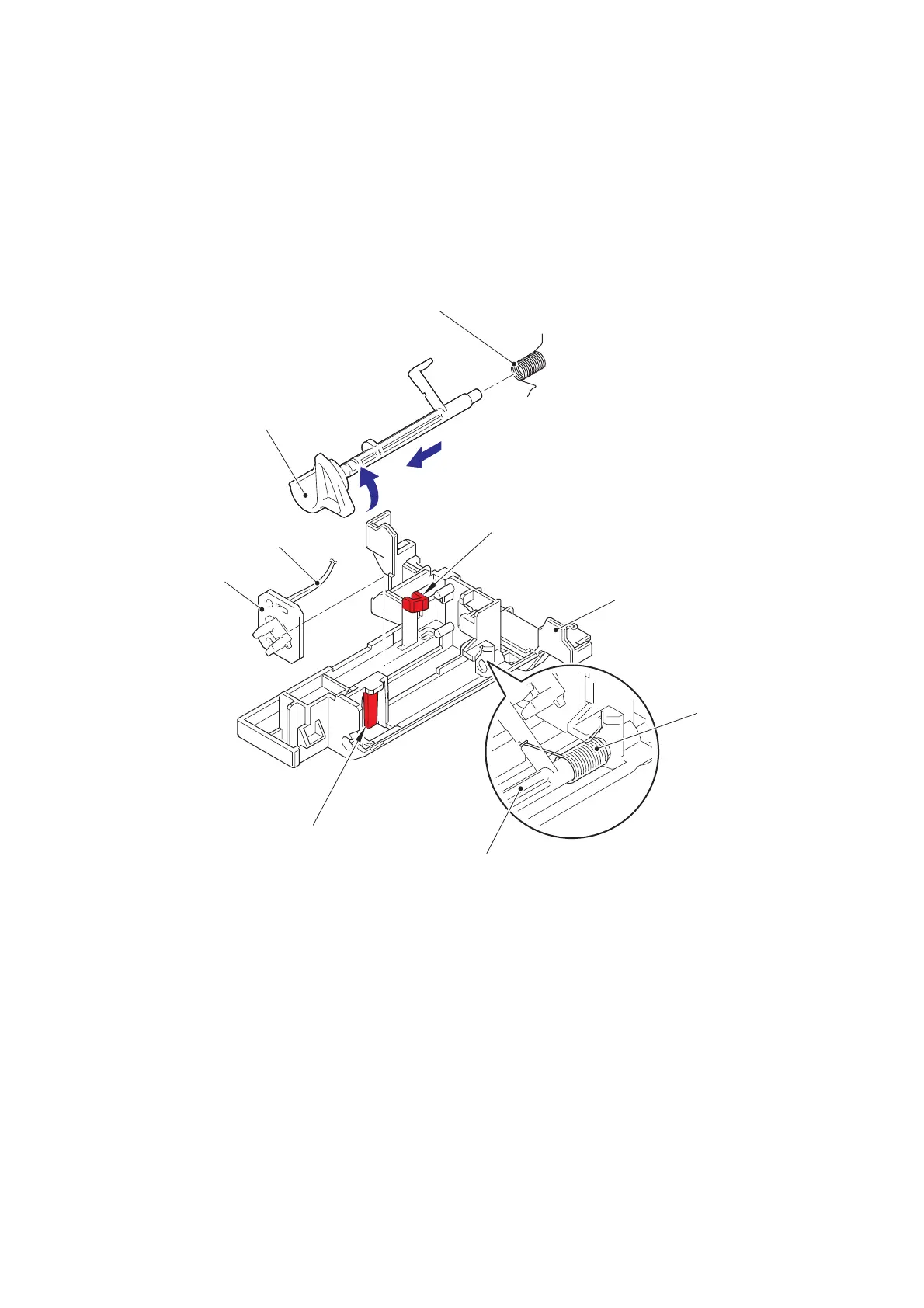

(4) Turn the T1 paper feed actuator in the direction of the arrow 4a, and push the hook on
the T1 paper feed actuator holder to slide the T1 paper feed actuator in the direction of
the arrow 4b to remove it from the T1 paper feed actuator holder.
(5) Remove the T1 paper feed actuator spring from the T1 paper feed actuator.
(6) Remove the securing fixtures of the T1 paper feed sensor harness from the T1 paper
feed actuator holder. Release the hook, and remove the T1 paper feed sensor PCB
ASSY from the T1 paper feed actuator holder.
Fig. 3-115
Harness routing: Refer to “13. Bottom side of the machine (High-voltage power supply PCB
ASSY)”.
T1 paper feed actuator
T1 paper feed
actuator holder
T1 paper feed actuator spring
T1 paper feed sensor harness
Hook
T1 paper feed sensor
PCB ASSY
4a
4b
Hook
T1 paper feed actuator
T1 paper feed
actuator spring

Brother DCP-L5652DN Specifications

General

Printer Type	Laser
Functions	Print, Copy, Scan
Automatic Duplex Printing	Yes
ADF Capacity	50 sheets
Memory	256 MB
Processor	800 MHz
Monthly Duty Cycle	Up to 50, 000 pages
Print Speed	42 ppm
Print Resolution	1200 x 1200 dpi
Paper Input Capacity	250 sheets
Scanner Resolution	Up to 1200 x 1200 dpi
Connectivity	USB, Ethernet
Mobile Printing	Brother iPrint&Scan, Google Cloud Print, AirPrint, Mopria
Toner Yield	Standard: 3, 000 pages, High Yield: 8, 000 pages
