Brother DCP-L5652DN Service Manual

3-120
Confidential
(3) Remove the ground registration spring from the hook A on the feed chute, and remove
the ground registration spring from the feed chute.
(4) Release the electrode TR from the hook B on the registration actuator holder ASSY, and
remove the electrode TR from the registration actuator holder ASSY.
(5) Release the hook C, and remove the registration actuator holder ASSY from the feed
chute.

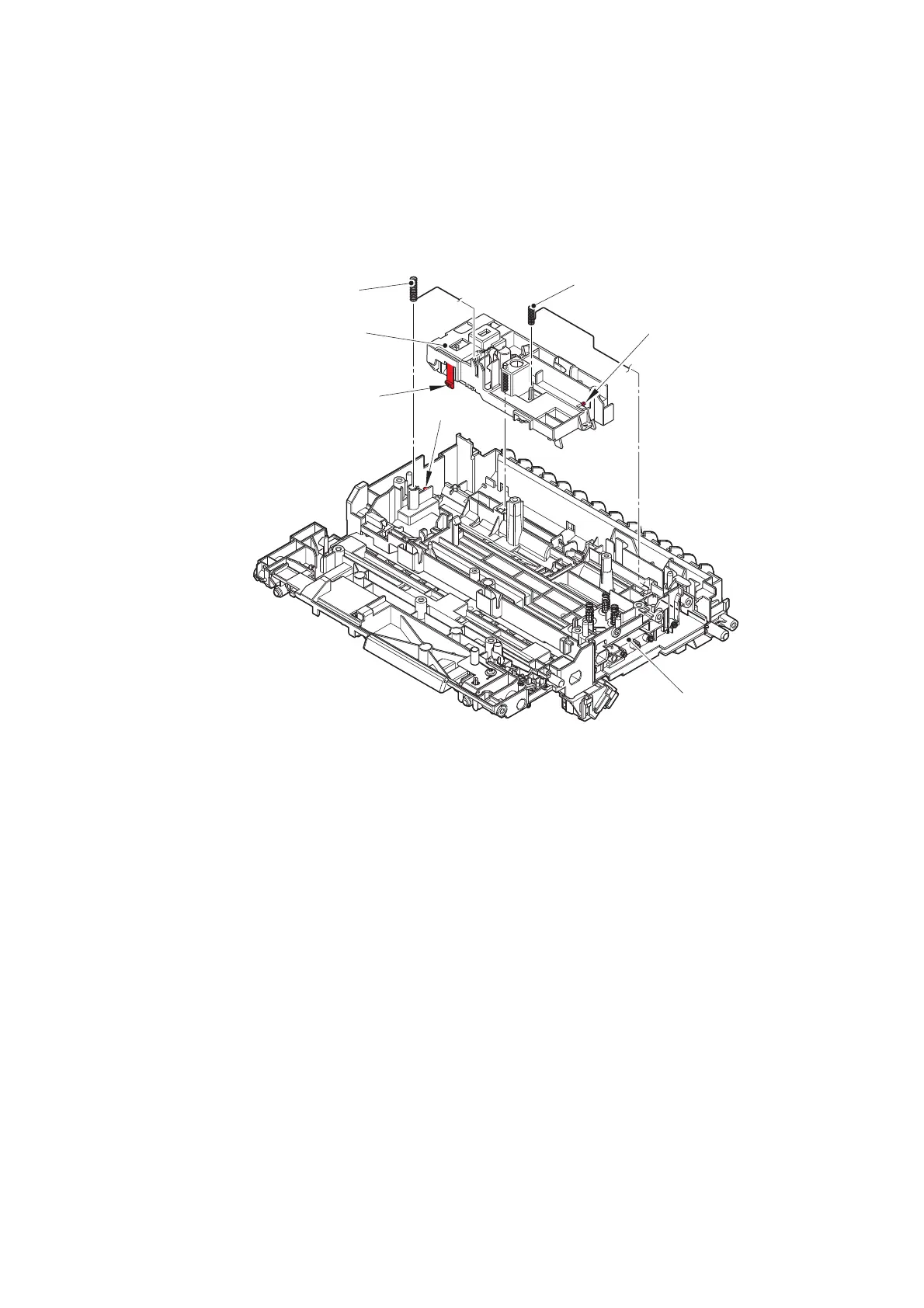

Fig. 3-121
Hook B
Ground registration spring
Registration actuator holder ASSY
Hook C
Electrode TR
Feed chute
Hook A

Brother DCP-L5652DN Specifications

General

Printer Type	Laser
Functions	Print, Copy, Scan
Automatic Duplex Printing	Yes
ADF Capacity	50 sheets
Memory	256 MB
Processor	800 MHz
Monthly Duty Cycle	Up to 50, 000 pages
Print Speed	42 ppm
Print Resolution	1200 x 1200 dpi
Paper Input Capacity	250 sheets
Scanner Resolution	Up to 1200 x 1200 dpi
Connectivity	USB, Ethernet
Mobile Printing	Brother iPrint&Scan, Google Cloud Print, AirPrint, Mopria
Toner Yield	Standard: 3, 000 pages, High Yield: 8, 000 pages
