Brother DCP-L5652DN Service Manual

2-100
Confidential

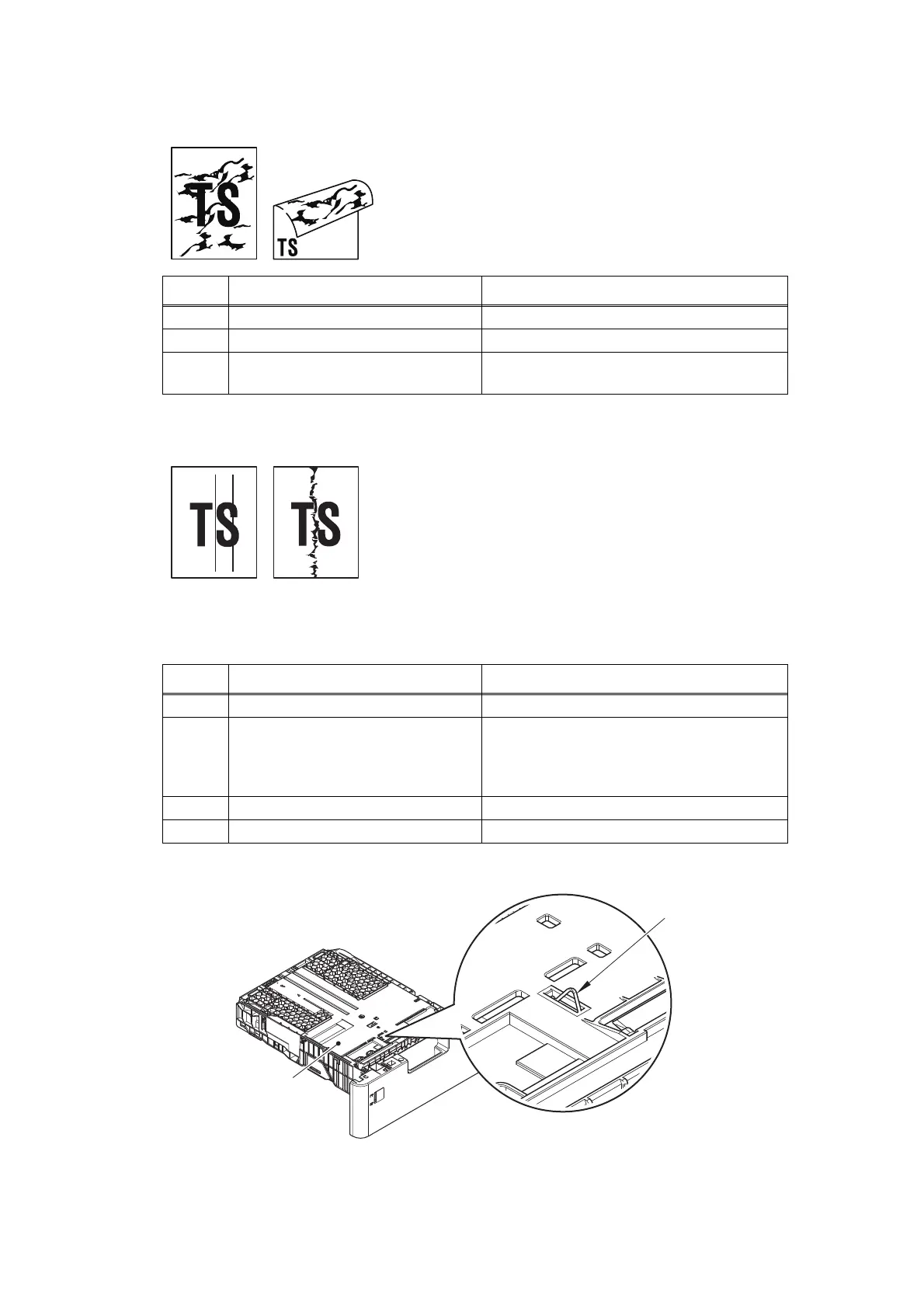

 Dirt on the paper
 Vertical streaks
Fig. 2-13
<User Check>
• This problem may disappear after printing multiple
sheets of paper.
• Replace the drum unit with a new one.
Step Cause Remedy
1 Dirt on the paper feeding system Wipe off the dirt.
2 Dirt on the fuser unit Replace the fuser unit.
3
High-voltage power supply PCB
failure
Replace the high-voltage power supply
PCB ASSY.
<User Check>
• Clean the corona wire of the drum unit.
• Return the corona wire cleaning tab to the "▲" position.
• This problem may disappear after printing multiple
sheets of paper.
• Refer to < How to clean the drum unit> to remove the
dirt from the exposure drum using a cotton applicator.
• Replace the drum unit with a new one.
• Replace the toner cartridge with a new one.
Step Cause Remedy
1 Dirt on the paper feeding system Wipe off the dirt.
2
FG harnesses or FG plate
attachment failure (not grounded
correctly)
Retighten the screws to secure the FG
harnesses or FG plate.
Fix the bent tray ground spring of the paper
tray (Refer to the figure below).
3 Dirt on the fuser unit Replace the fuser unit.
4 Laser unit failure Replace the laser unit.
Tray ground spring
Paper tray
<Bottom surface of paper tray>

Brother DCP-L5652DN Specifications

General

Printer Type	Laser
Functions	Print, Copy, Scan
Automatic Duplex Printing	Yes
ADF Capacity	50 sheets
Memory	256 MB
Processor	800 MHz
Monthly Duty Cycle	Up to 50, 000 pages
Print Speed	42 ppm
Print Resolution	1200 x 1200 dpi
Paper Input Capacity	250 sheets
Scanner Resolution	Up to 1200 x 1200 dpi
Connectivity	USB, Ethernet
Mobile Printing	Brother iPrint&Scan, Google Cloud Print, AirPrint, Mopria
Toner Yield	Standard: 3, 000 pages, High Yield: 8, 000 pages
