Brother DCP-L5652DN Service Manual

2-120
Confidential

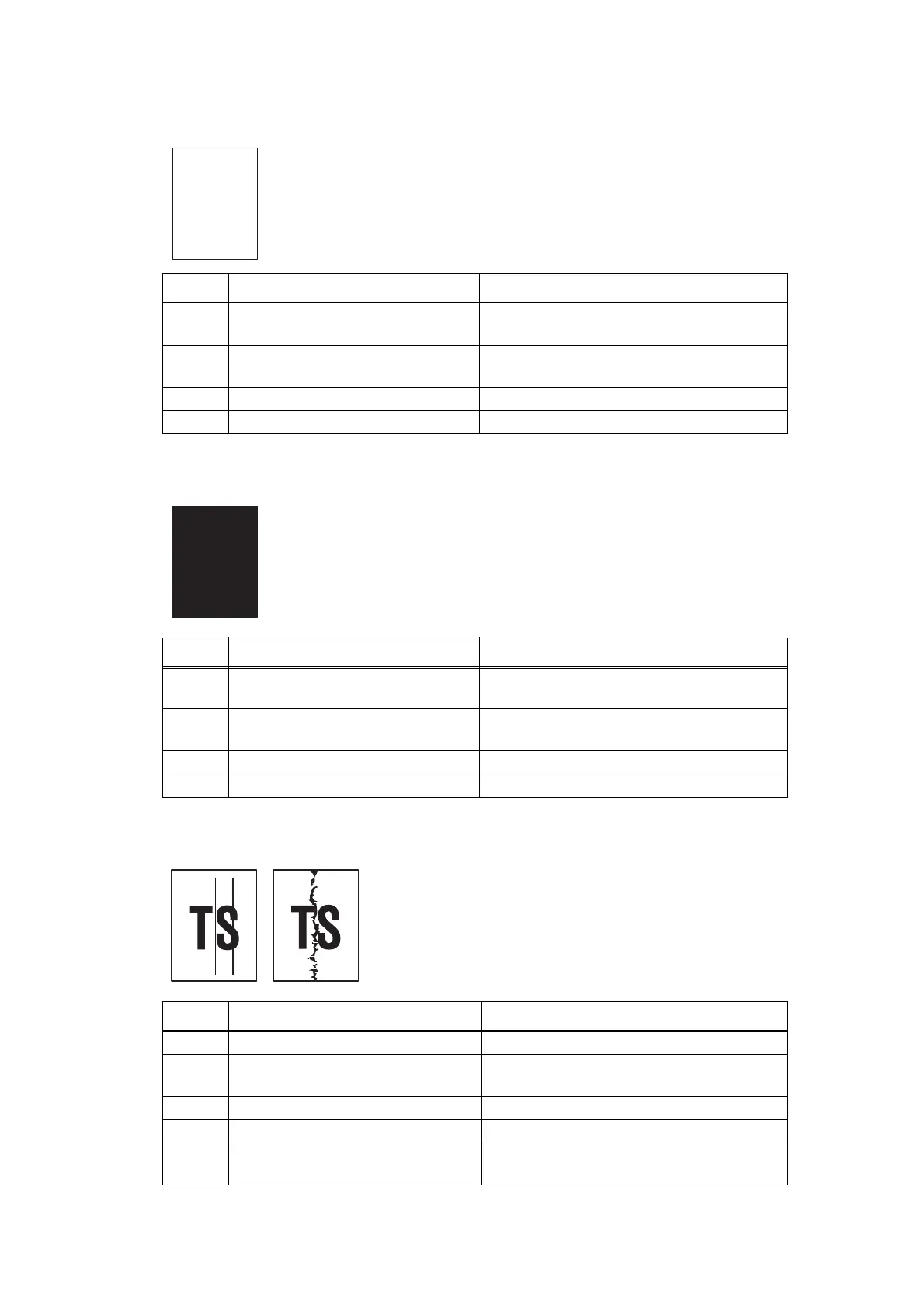

 Completely blank
 All black
 Vertical streaks
<User Check>
• Check that the document is not reversed.
Step Cause Remedy
1
Incorrect white level correction data Execute "Acquire white level data (function
code: 55)".
2
First or second side CIS flat cable
failure
Replace the first or second side CIS flat
cable.
3 First or second side CIS unit failure Replace the first or second side CIS unit.
4 Main PCB failure Replace the main PCB ASSY.
<User Check>
• Install all the latest firmwares.
Step Cause Remedy
1
Incorrect white level correction data Execute "Acquire white level data (function
code: 55)".
2
First or second side CIS flat cable
failure
Replace the first or second side CIS flat
cable.
3 First or second side CIS unit failure Replace the first or second side CIS unit.
4 Main PCB failure Replace the main PCB ASSY.
<User Check>
• Clean the scanner glass or first side/second side
scanner glass strip.
• Clean the document hold.
Step Cause Remedy
1 Dirt inside of scanner glass Clean the inside of the scanner glass.
2
Dirt inside of first side/second side
scanner glass strip
Clean the inside of the first side/second side
scanner glass strip.
3 First or second side CIS unit failure Replace the first or second side CIS unit.
4 Scratch on scanner glass Replace the document scanner unit.
5
Scratch on second side scanner
glass strip
Replace the ADF unit.

Brother DCP-L5652DN Specifications

General

Printer Type	Laser
Functions	Print, Copy, Scan
Automatic Duplex Printing	Yes
ADF Capacity	50 sheets
Memory	256 MB
Processor	800 MHz
Monthly Duty Cycle	Up to 50, 000 pages
Print Speed	42 ppm
Print Resolution	1200 x 1200 dpi
Paper Input Capacity	250 sheets
Scanner Resolution	Up to 1200 x 1200 dpi
Connectivity	USB, Ethernet
Mobile Printing	Brother iPrint&Scan, Google Cloud Print, AirPrint, Mopria
Toner Yield	Standard: 3, 000 pages, High Yield: 8, 000 pages
