Brother DCP-L5652DN Service Manual

3-66
Confidential
(4) Slide the CIS carriage slowly to the position described below.

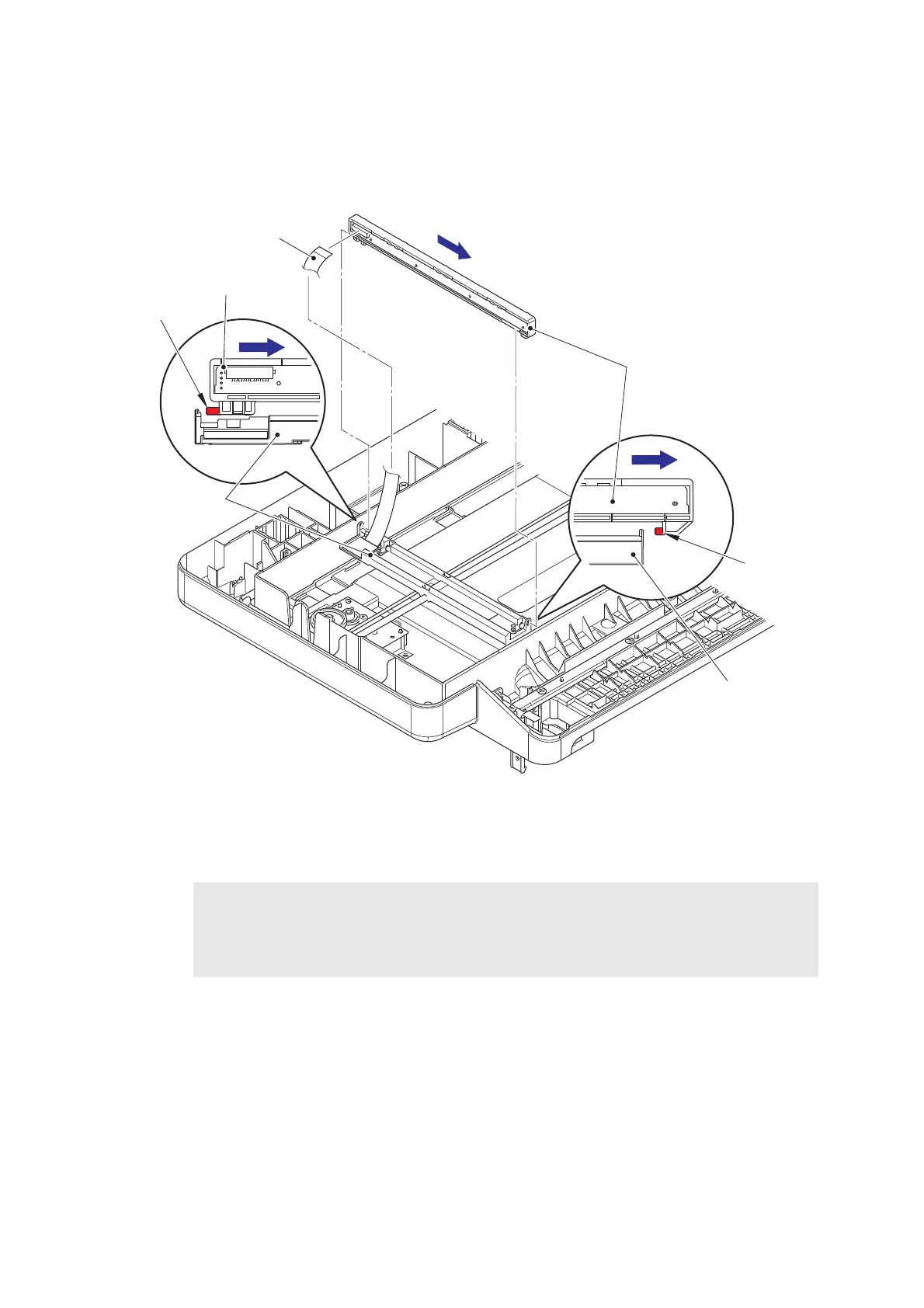

(5) Raise the first side CIS unit from the CIS carriage for 90 degrees. Slide the first side CIS
unit in the direction of the arrow and release the boss to remove it. Disconnect the first
side CIS flat cable from the first side CIS unit.
Fig. 3-62
Harness routing: Refer to “5. Document scanner unit”.
Assembling Note:
• If you replaced the first side CIS unit, refer to “5. IF YOU REPLACE THE ADF UNIT,
FIRST SIDE CIS UNIT, SECOND SIDE CIS UNIT OR DOCUMENT SCANNER UNIT”
in chapter 4 and configure the setting.
First side CIS unit
First side CIS unit
Boss
Boss
CIS carriage
CIS carriage
First side CIS flat cable

Brother DCP-L5652DN Specifications

General

Printer Type	Laser
Functions	Print, Copy, Scan
Automatic Duplex Printing	Yes
ADF Capacity	50 sheets
Memory	256 MB
Processor	800 MHz
Monthly Duty Cycle	Up to 50, 000 pages
Print Speed	42 ppm
Print Resolution	1200 x 1200 dpi
Paper Input Capacity	250 sheets
Scanner Resolution	Up to 1200 x 1200 dpi
Connectivity	USB, Ethernet
Mobile Printing	Brother iPrint&Scan, Google Cloud Print, AirPrint, Mopria
Toner Yield	Standard: 3, 000 pages, High Yield: 8, 000 pages
