Brother DCP-L5652DN Service Manual

3-68
Confidential
(7) Remove the first side CIS flat cable behind the CIS carriage from the double-sided tape.
(8) Remove the first side CIS flat cable from the document scanner unit.

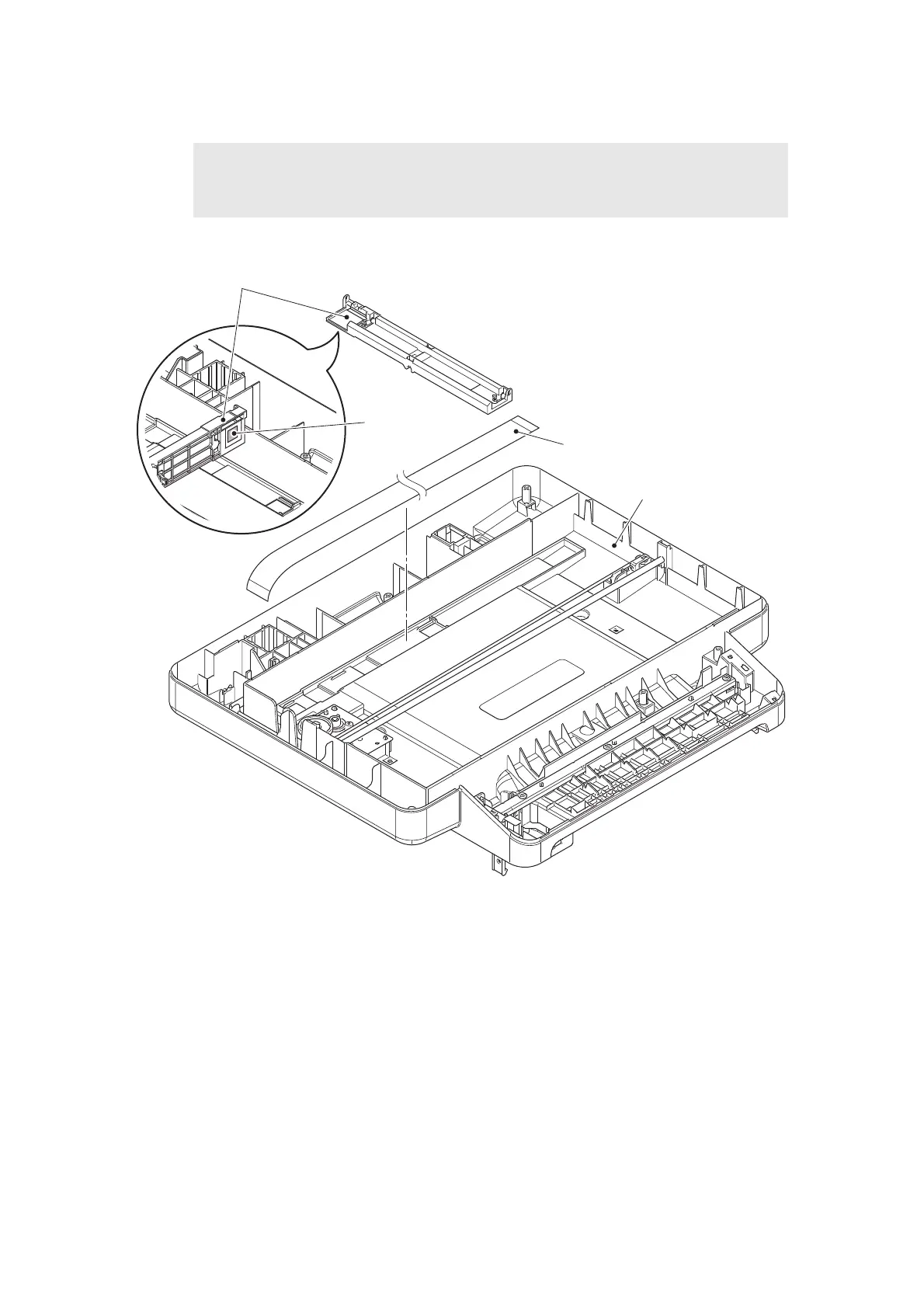

Fig. 3-64
Harness routing: Refer to “5. Document scanner unit”.
Note:
• Once the double-sided tape is removed from the first side CIS flat cable, replace it
with a new one.
Document scanner unit
CIS carriage
First side CIS flat cable
Double-sided tape

Brother DCP-L5652DN Specifications

General

Printer Type	Laser
Functions	Print, Copy, Scan
Automatic Duplex Printing	Yes
ADF Capacity	50 sheets
Memory	256 MB
Processor	800 MHz
Monthly Duty Cycle	Up to 50, 000 pages
Print Speed	42 ppm
Print Resolution	1200 x 1200 dpi
Paper Input Capacity	250 sheets
Scanner Resolution	Up to 1200 x 1200 dpi
Connectivity	USB, Ethernet
Mobile Printing	Brother iPrint&Scan, Google Cloud Print, AirPrint, Mopria
Toner Yield	Standard: 3, 000 pages, High Yield: 8, 000 pages
