Brother DCP-L5652DN Service Manual

3-70
Confidential
3) Attach the 12 mm x 12 mm double-sided tape to the CIS carriage at the position shown in
the illustration below. (If the old double-sided tape remains attached, replace it with a new
one.)
4) Connect the first side CIS flat cable to the first side CIS unit.
5) Attach the first side CIS unit to the CIS carriage.
6) Peel the release liner of the double-sided tape attached to the CIS carriage, and secure
the first side CIS flat cable with the tape as shown in the illustration below.

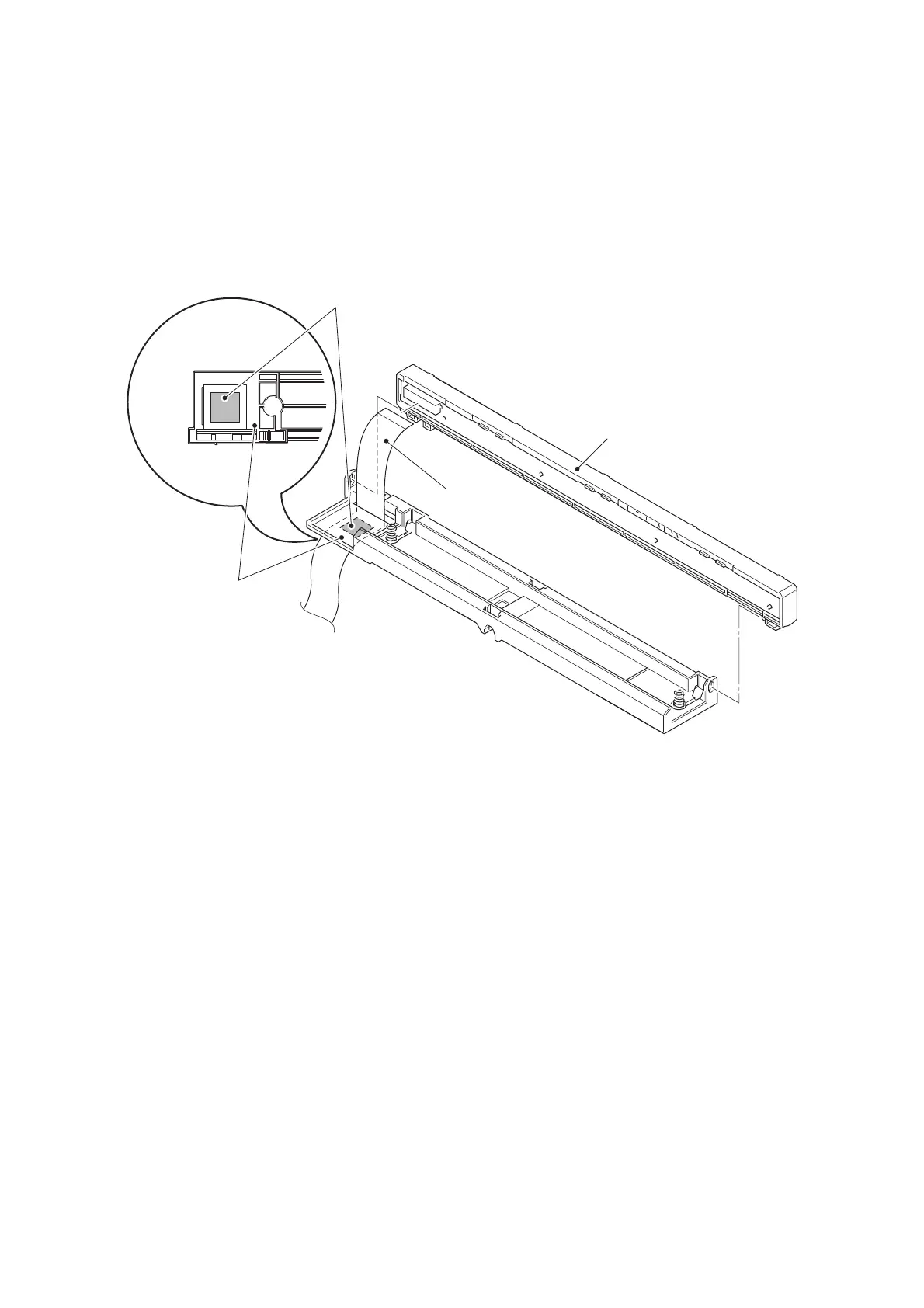

Fig. 3-68
CIS carriage
Double-sided tape
First side CIS unit
First side CIS
flat cable

Brother DCP-L5652DN Specifications

General

Printer Type	Laser
Functions	Print, Copy, Scan
Automatic Duplex Printing	Yes
ADF Capacity	50 sheets
Memory	256 MB
Processor	800 MHz
Monthly Duty Cycle	Up to 50, 000 pages
Print Speed	42 ppm
Print Resolution	1200 x 1200 dpi
Paper Input Capacity	250 sheets
Scanner Resolution	Up to 1200 x 1200 dpi
Connectivity	USB, Ethernet
Mobile Printing	Brother iPrint&Scan, Google Cloud Print, AirPrint, Mopria
Toner Yield	Standard: 3, 000 pages, High Yield: 8, 000 pages
