Brother DCP-L5652DN Service Manual

3-81
Confidential
Fig. 3-79
< Location of the laser serial number on the laser unit >
Fig. 3-80

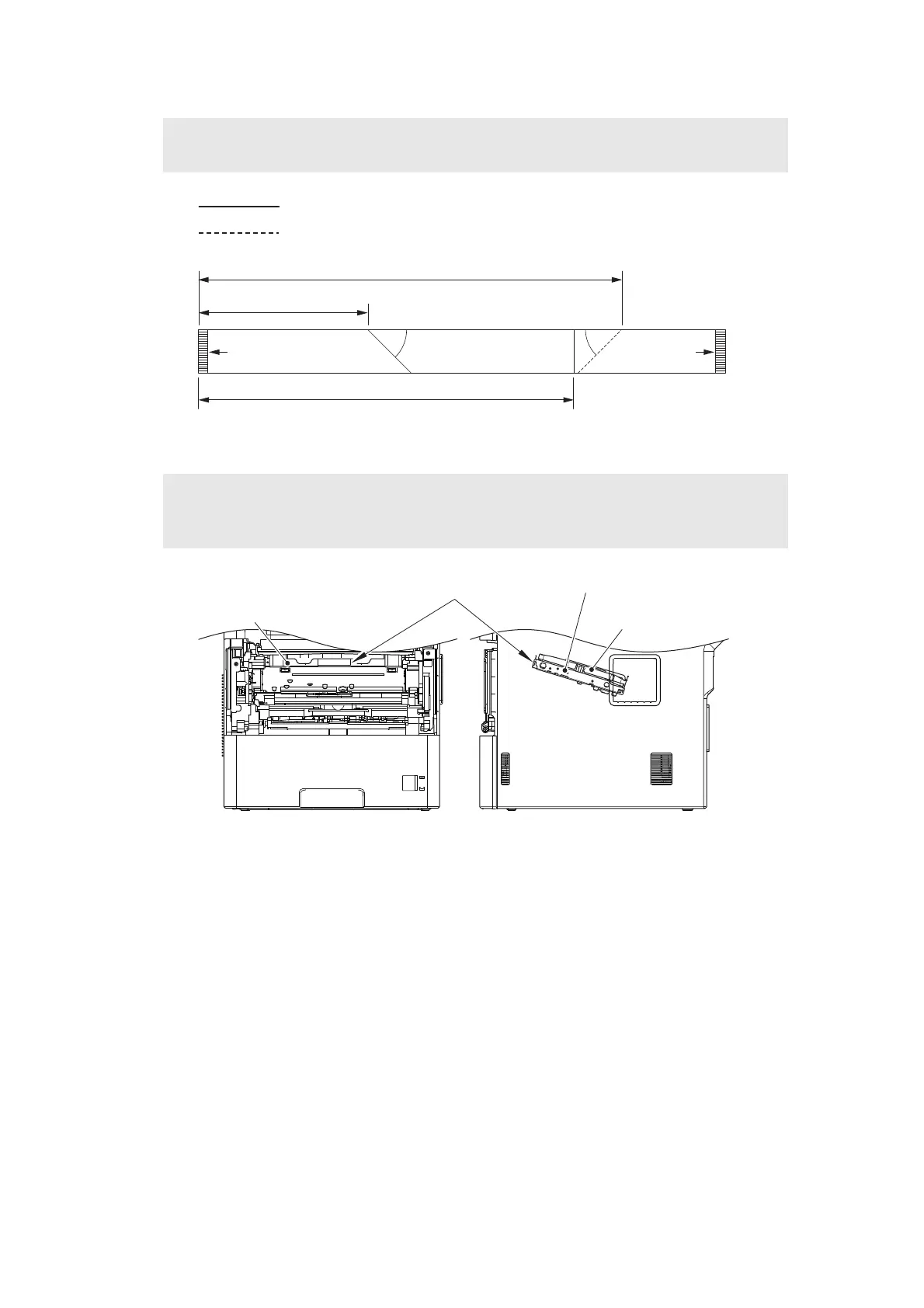

Assembling Note:
• Fold the laser unit flat cable at the positions shown in the figure below.
Note:
• Attach the laser serial label to the position (on the laser plate) shown in the figure below
after replacing the laser unit.
Mountain fold
Valley fold
87±1
Main
PCB side
45°
45°
193±1
218±1
Laser unit
side
Conductor Conductor
Laser serial number label
Laser unit
Laser plate
Laser plate

Brother DCP-L5652DN Specifications

General

Printer Type	Laser
Functions	Print, Copy, Scan
Automatic Duplex Printing	Yes
ADF Capacity	50 sheets
Memory	256 MB
Processor	800 MHz
Monthly Duty Cycle	Up to 50, 000 pages
Print Speed	42 ppm
Print Resolution	1200 x 1200 dpi
Paper Input Capacity	250 sheets
Scanner Resolution	Up to 1200 x 1200 dpi
Connectivity	USB, Ethernet
Mobile Printing	Brother iPrint&Scan, Google Cloud Print, AirPrint, Mopria
Toner Yield	Standard: 3, 000 pages, High Yield: 8, 000 pages
