Brother DCP-L5652DN Service Manual

3-94
Confidential
 For models with 250-sheet T1
(8) Remove the taptite cup S M3x8 SR screw and two taptite bind B M4x12 screws to
remove the under bar front.
(9) Remove the main PCB insulation sheet (transparent) and the main PCB insulation sheet
(black).
(10) Turn the registration roller bushing on the registration roller shaft to the position as
shown in the figure below, and pull out the registration roller shaft.

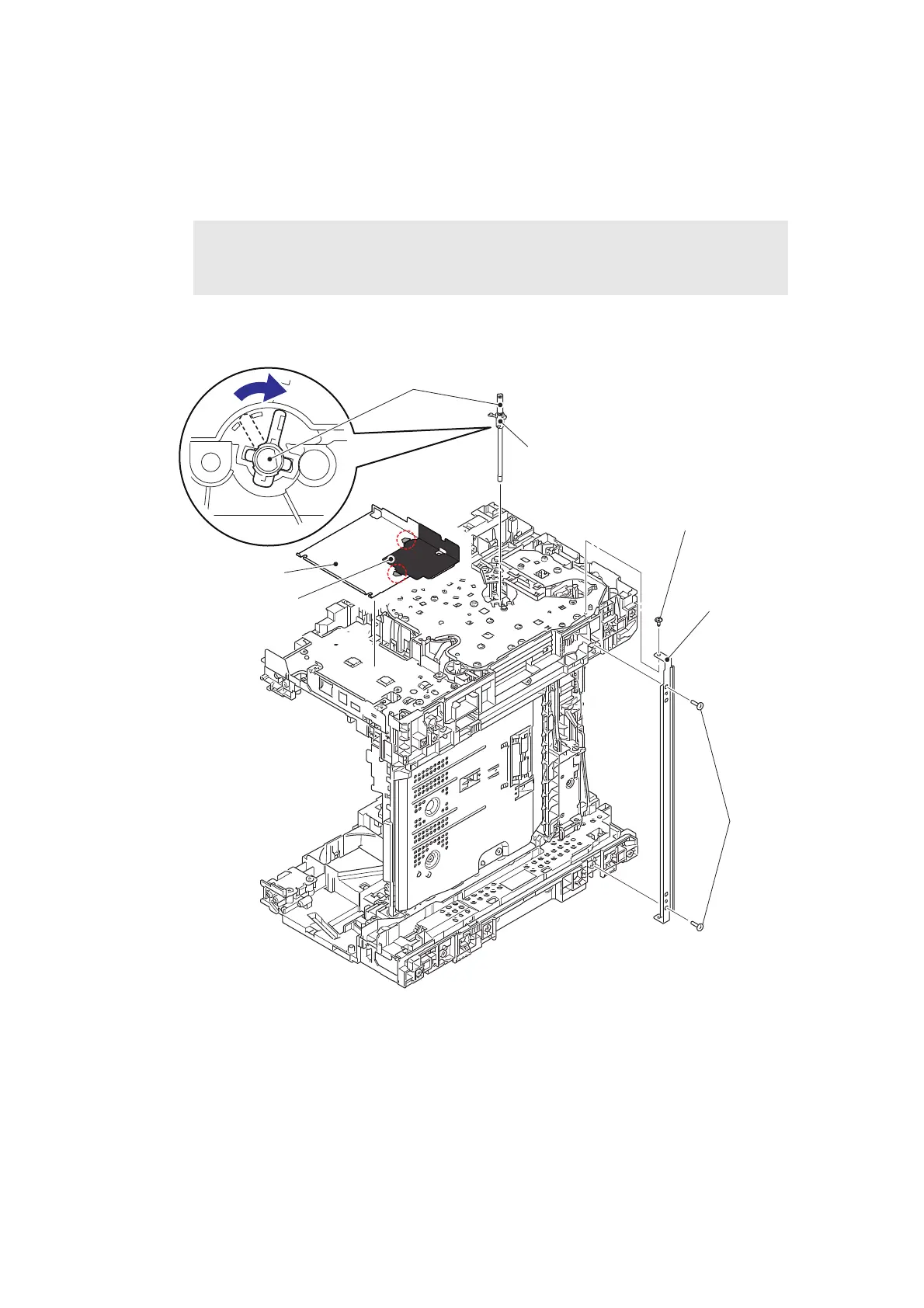

Fig. 3-94
Assembling Note:
•
Make sure that the black main PCB insulation sheet is inserted properly into the hole
of the transparent main PCB insulation sheet as shown in the illustration below.
Under bar front
Registration roller shaft
Main PCB insulation
sheet (black)
Taptite bind
B M4x12
Registration roller bushing
Taptite cup S M3x8 SR
Main PCB insulation
sheet (transparent)
