Brother DCP-L5652DN Service Manual

3-109
Confidential
(2) Remove the HV insulation sheet.
(3) Release the HVPS flat cable from the securing fixtures.
(4) Remove the two taptite bind B M4x12 screws. Release the two hooks, and remove the
high-voltage power supply PCB ASSY and feed ground spring.

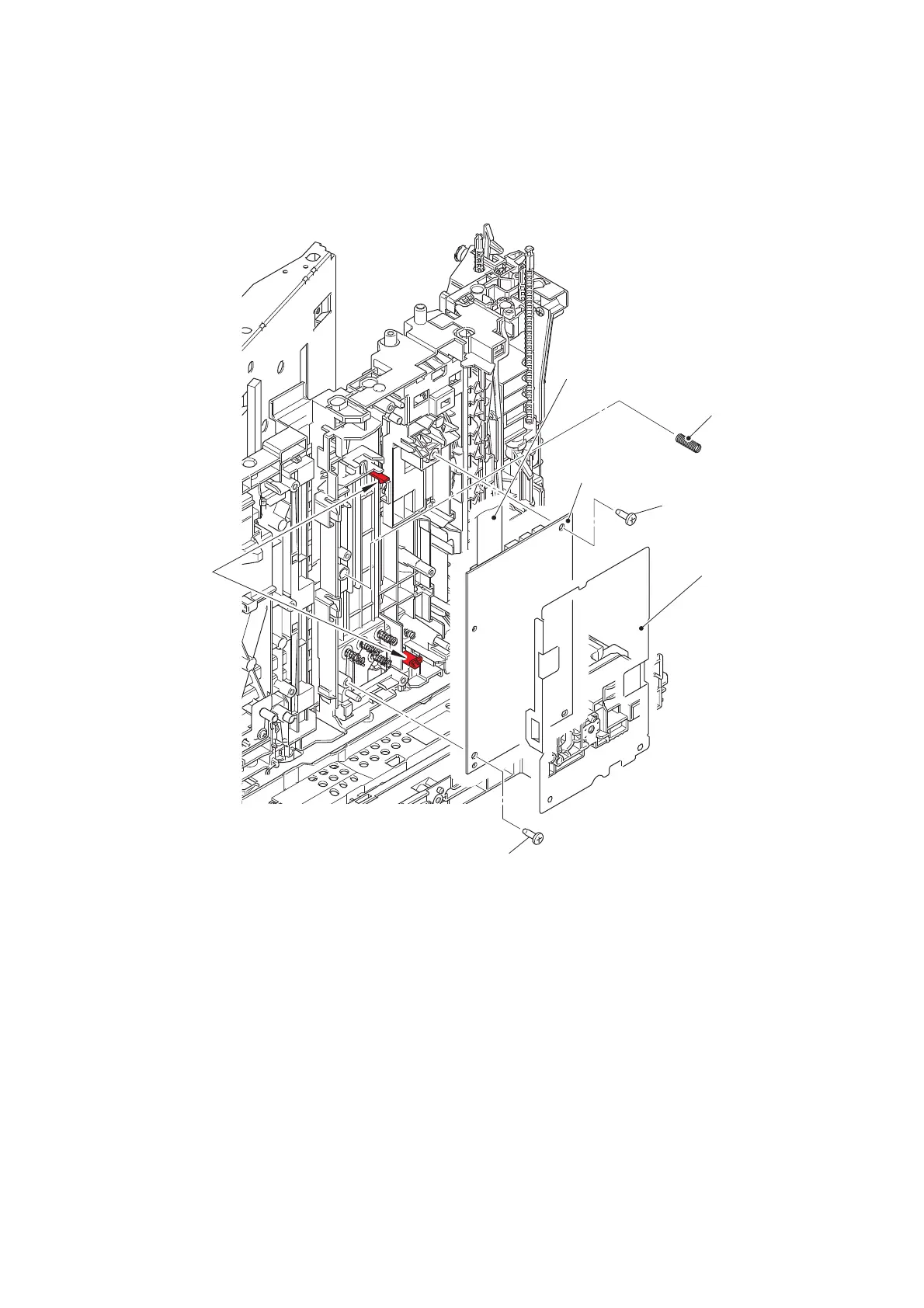

Fig. 3-109
Harness routing: Refer to “13. Bottom side of the machine (High-voltage power supply PCB
ASSY)”.
Feed ground spring
Taptite bind B M4x12
Hooks
HV insulation sheet
High-voltage power
supply PCB ASSY
Taptite bind B M4x12
HVPS flat cable

Brother DCP-L5652DN Specifications

General

Printer Type	Laser
Functions	Print, Copy, Scan
Automatic Duplex Printing	Yes
ADF Capacity	50 sheets
Memory	256 MB
Processor	800 MHz
Monthly Duty Cycle	Up to 50, 000 pages
Print Speed	42 ppm
Print Resolution	1200 x 1200 dpi
Paper Input Capacity	250 sheets
Scanner Resolution	Up to 1200 x 1200 dpi
Connectivity	USB, Ethernet
Mobile Printing	Brother iPrint&Scan, Google Cloud Print, AirPrint, Mopria
Toner Yield	Standard: 3, 000 pages, High Yield: 8, 000 pages
