Brother DCP-L5652DN Service Manual

3-117
Confidential

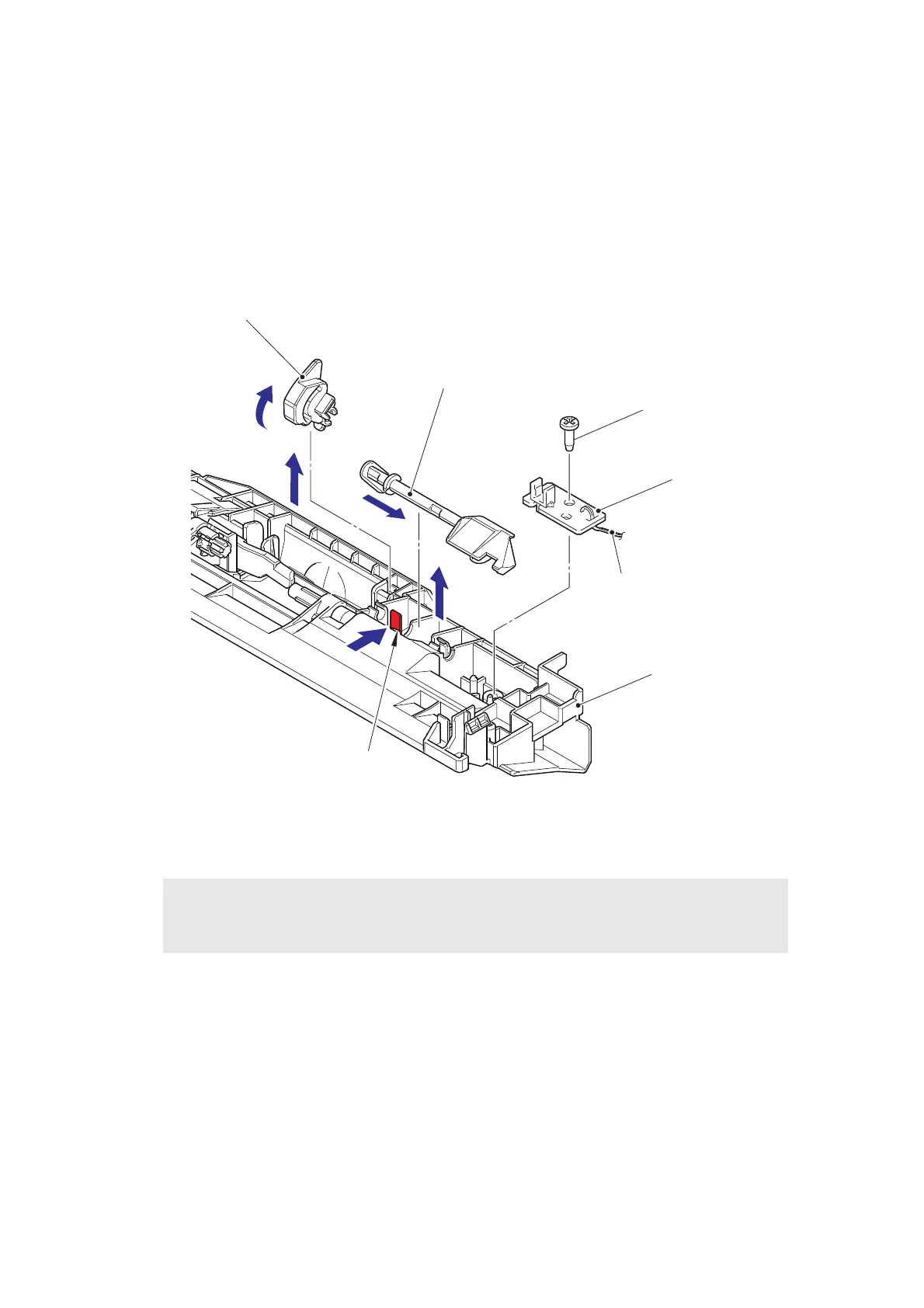

(5) Turn MP paper empty actuator 2 in the direction of the arrow 5a, and push the hook in
the direction of the arrow 5b to slide MP paper empty actuator 1 in the direction of the
arrow 5c to remove it from the MP feed frame in the direction of the arrow 5d.
(6) Turn MP paper empty actuator 2 in the direction of the arrow 5a, and remove it from the
MP feed frame in the direction of the arrow 6.
(7) Remove the taptite bind B M3x10 screw. Remove the MP paper empty sensor PCB
ASSY from the MP feed frame, and pull out the MP paper empty sensor harness from
the hole.
Fig. 3-118
Assembling Note:
• Insert the end of MP paper empty actuator 1 into the groove on the MP paper empty
actuator 2.
Taptite bind B M3x10
MP paper empty sensor
PCB ASSY
MP feed frame
Hook
MP paper empty actuator 2
MP paper empty actuator 1
6
5c
5d
5a
5b
MP paper empty sensor harness

Brother DCP-L5652DN Specifications

General

Printer Type	Laser
Functions	Print, Copy, Scan
Automatic Duplex Printing	Yes
ADF Capacity	50 sheets
Memory	256 MB
Processor	800 MHz
Monthly Duty Cycle	Up to 50, 000 pages
Print Speed	42 ppm
Print Resolution	1200 x 1200 dpi
Paper Input Capacity	250 sheets
Scanner Resolution	Up to 1200 x 1200 dpi
Connectivity	USB, Ethernet
Mobile Printing	Brother iPrint&Scan, Google Cloud Print, AirPrint, Mopria
Toner Yield	Standard: 3, 000 pages, High Yield: 8, 000 pages
