Brother DCP-L5652DN Service Manual

7-21
Confidential

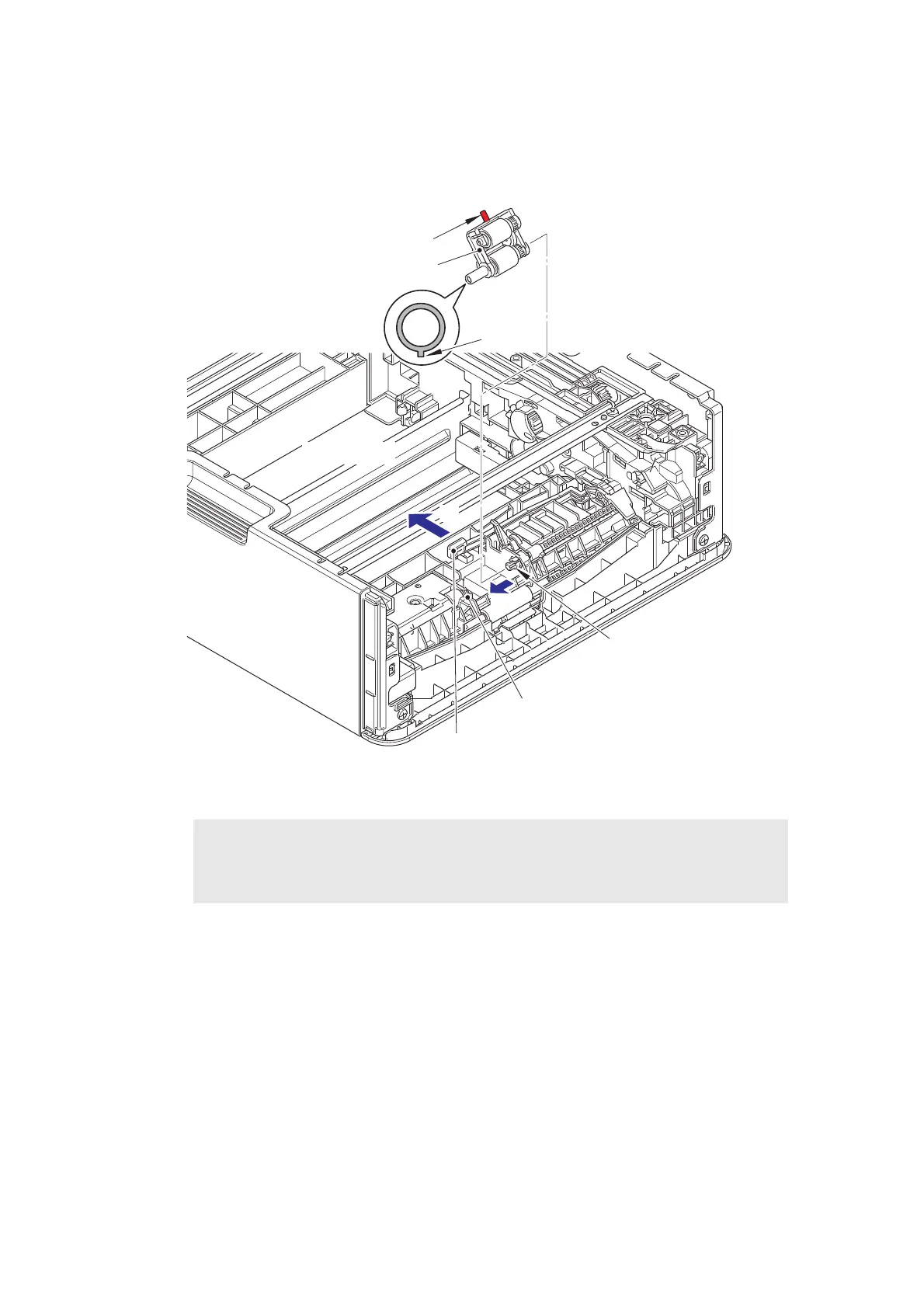

(4) Push the link arm in the direction of the arrow A, and turn the roller holder ASSY to
remove the boss.
(5) Slide the roller holder ASSY in the direction of the arrow B to remove it from the shaft,
and remove the roller holder ASSY.
Fig. 7-24
Assembling Note:
• When attaching the roller holder ASSY, engage "A" on the shaft of the roller holder
ASSY with the hole on the feed frame ASSY, and insert the shaft into the hole.
Roller holder ASSY
Boss
Shaft
Link arm
A
B
<Bottom side>
"A"
Feed frame ASSY
<Front side>

Brother DCP-L5652DN Specifications

General

Printer Type	Laser
Functions	Print, Copy, Scan
Automatic Duplex Printing	Yes
ADF Capacity	50 sheets
Memory	256 MB
Processor	800 MHz
Monthly Duty Cycle	Up to 50, 000 pages
Print Speed	42 ppm
Print Resolution	1200 x 1200 dpi
Paper Input Capacity	250 sheets
Scanner Resolution	Up to 1200 x 1200 dpi
Connectivity	USB, Ethernet
Mobile Printing	Brother iPrint&Scan, Google Cloud Print, AirPrint, Mopria
Toner Yield	Standard: 3, 000 pages, High Yield: 8, 000 pages
