App. 3-2

Confidential

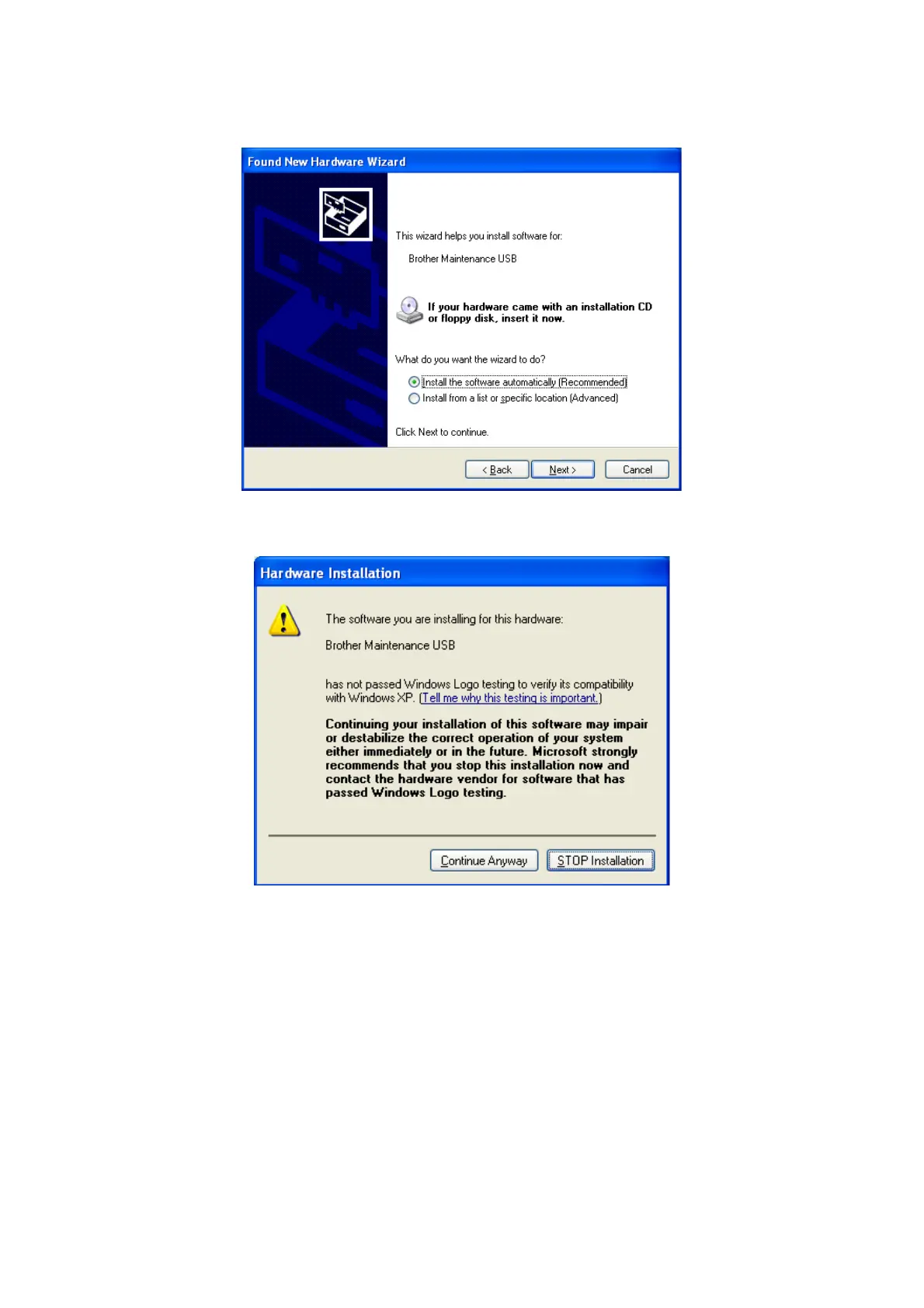

(7) Select “Install the software automatically (Recommended)” and click [Next].

(8) Alert warning message of WHQL appears. Click [Continue Anyway] to proceed.
