Brother MFC-J2320 Service Manual

3-17
Confidential

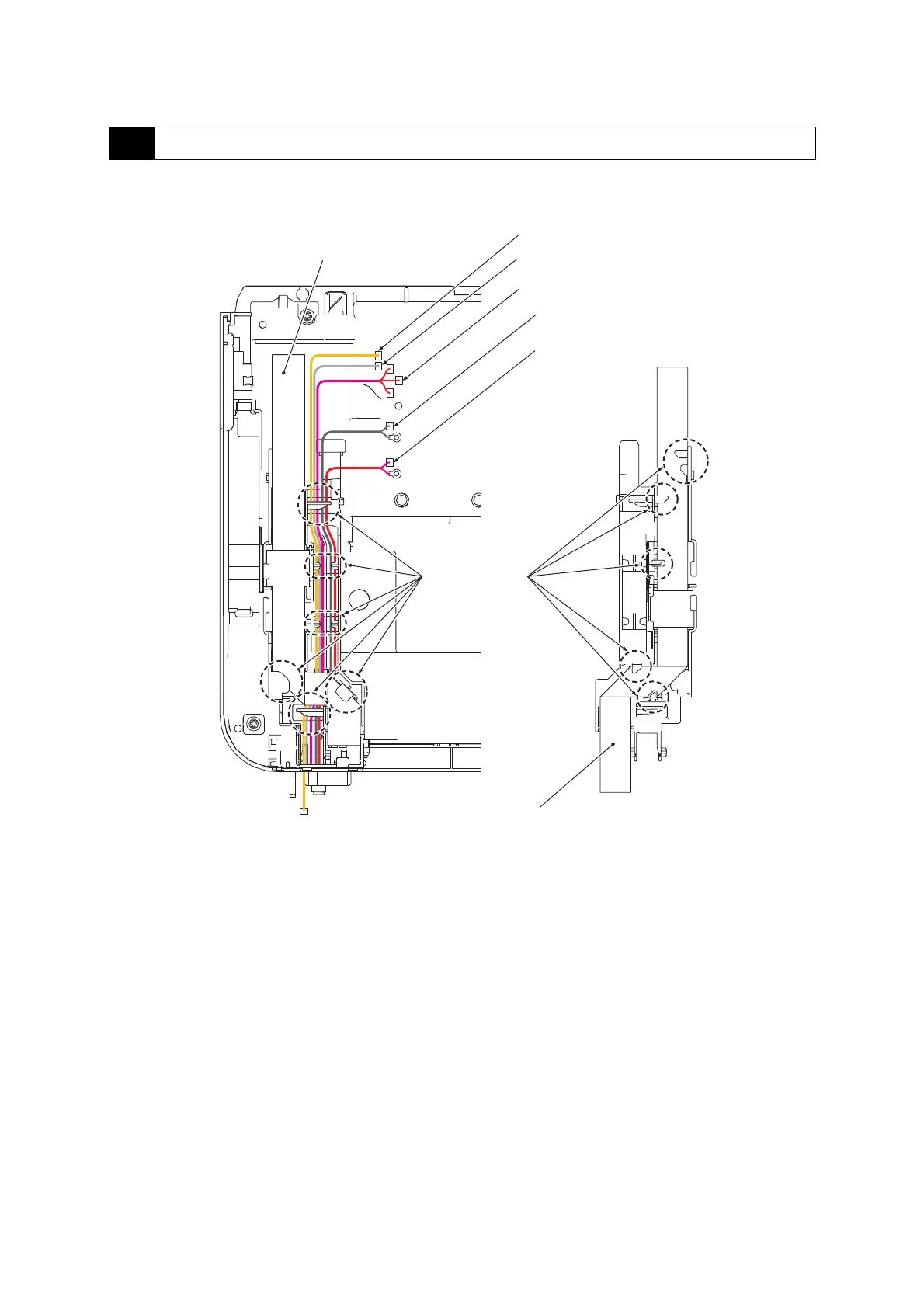

6 ADF unit/Document scanner unit (downside)
Second side CIS flat cable
First side CIS flat cable
Cable guides
ADF sensor harness
Scanner motor harness
MP paper detection sensor harness
ADF cover sensor harness
ADF motor harness
(Front)
Scanner harness holder
(upside)
(Rear)
