9.34 Ink Refill ASSY/Ink Absorber Felt (for Ink Refill ASSY)
(1) Release the wiring of the Ink supply tubes from the Tube support wire and Tube
support plate.
(2) Release the wiring of the Ink sensor flat cable.
(3) Release the wiring of the harnesses.

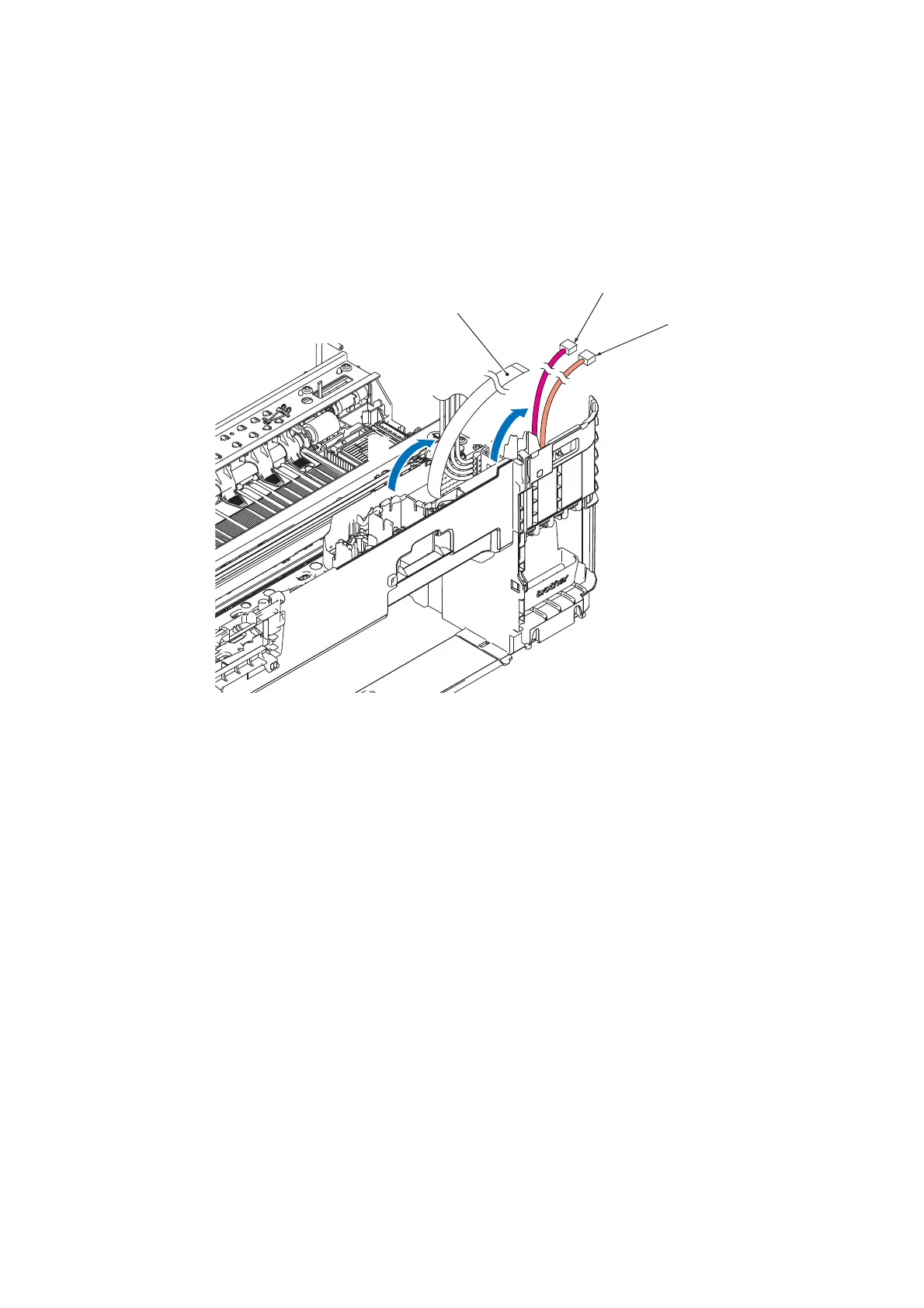

Fig. 3-90
Ink sensor
flat cable
Registration
sensor harness
Purge cam sensor
harness
3
2
