Brother MFC-J2320 Service Manual

3-75
Confidential
9.30 Paper Tray 2 Detection Sensor/T2 Paper Pull-in Roller/T2 Bank ASSY
(1) Release the wiring of the Paper tray 2 detection sensor harness.
(2) Pull out the Registration sensor harness and the Main PCB grounding wire out of
the Lower cover.
(3) Remove four screws (TAPTITE BIND B M4x12) and take out the Lower tray unit.

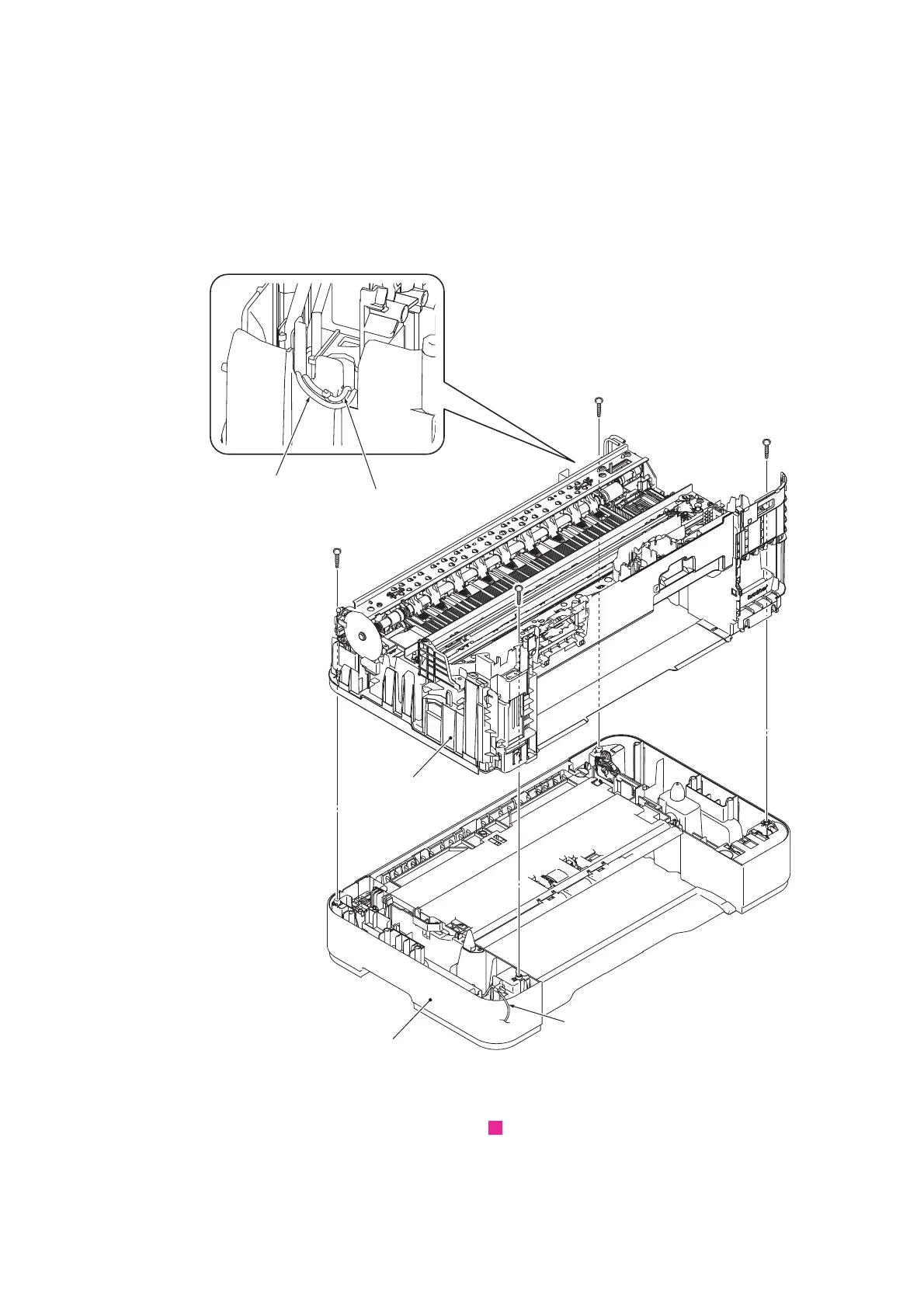

Fig. 3-77
Assembling Note: After attaching the screws on the right back side, return the
harness to inside of the Lower cover. See " Lower cover (right side)" of this chapter.
TAPTITE BIND B M4x12
Lower tray unit
Main PCB
grounding wire
Registration
sensor harness
Paper tray 2 detection
sensor harness
Lower cover
9
