Brother MFC-J2320 Service Manual

3-30
Confidential
9.5 ADF Unit/Document Scanner Unit

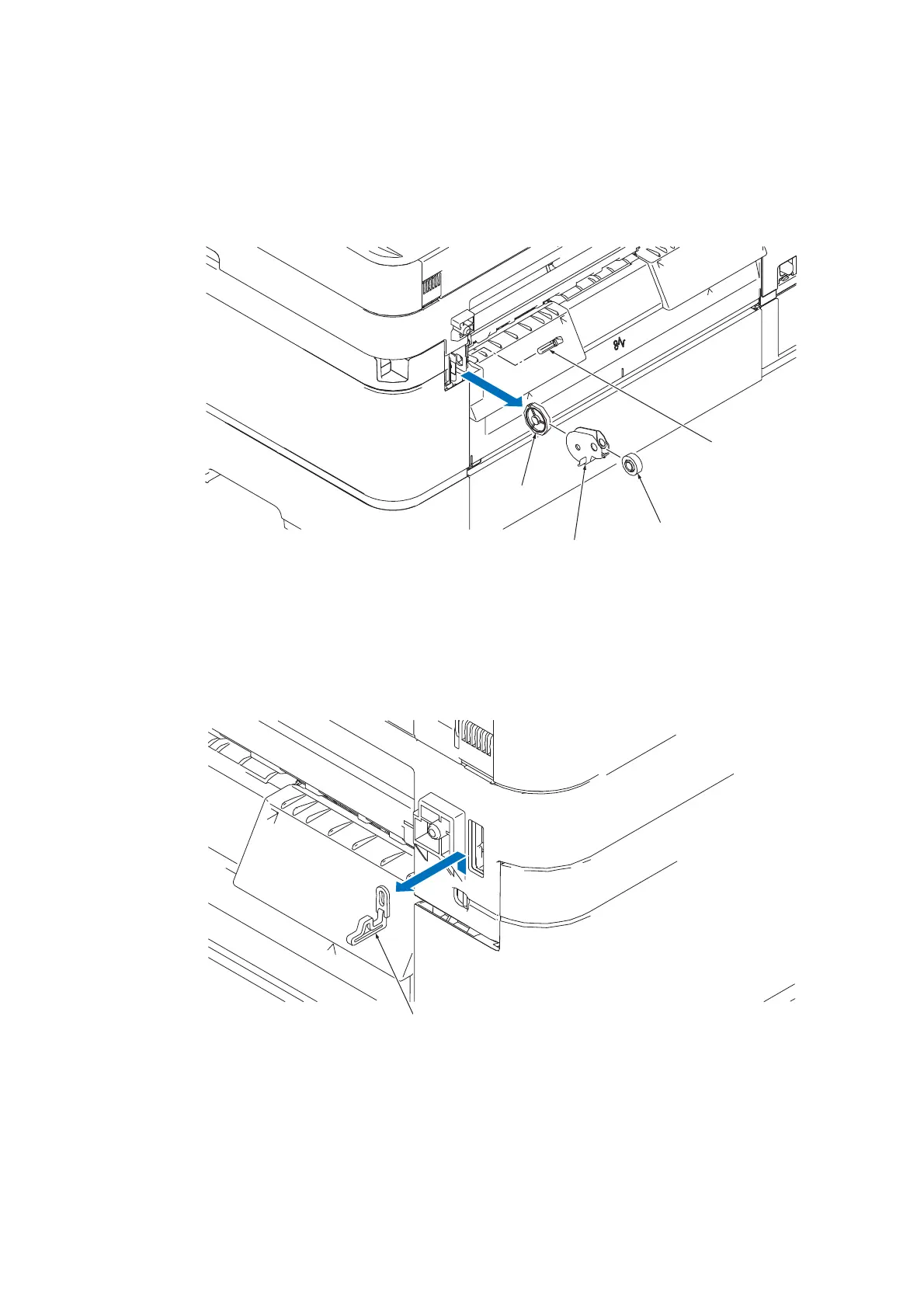

(1) Remove the MP gear 19.
(2) Remove the Shaft and take off the MP gear holder and MP gear 31.
Fig. 3-10
(3) Raise the Lifter and pull off to the front.
Fig. 3-11
Shaft
MP gear 19
MP gear 31
MP gear holder
Lifter

Brother MFC-J2320 Specifications

General

Print Technology	Inkjet
Functions	Print, Copy, Scan, Fax
Connectivity	USB, Ethernet, Wi-Fi
Max Print Resolution	6000 x 1200 dpi
Max Print Size	A3
Scanner Type	Flatbed with ADF
Max Scan Resolution	1200 x 2400 dpi
Copy Speed (Black)	12 cpm
Copy Speed (Color)	9 cpm
Paper Tray Capacity	250 sheets
Mobile Printing	Brother iPrint&Scan, AirPrint, Google Cloud Print
Display	2.7" LCD touchscreen
Paper Handling	A3, A4
