Brother MFC-J2320 Service Manual

3-29
Confidential
9.4 Scanner Cover Damper/Scanner Cover Support
(1) Open the Scanner cover until it locks.
(2) Pull the Hook at the rear end of the Scanner cover damper to the front, and remove
the damper from the Scanner cover.

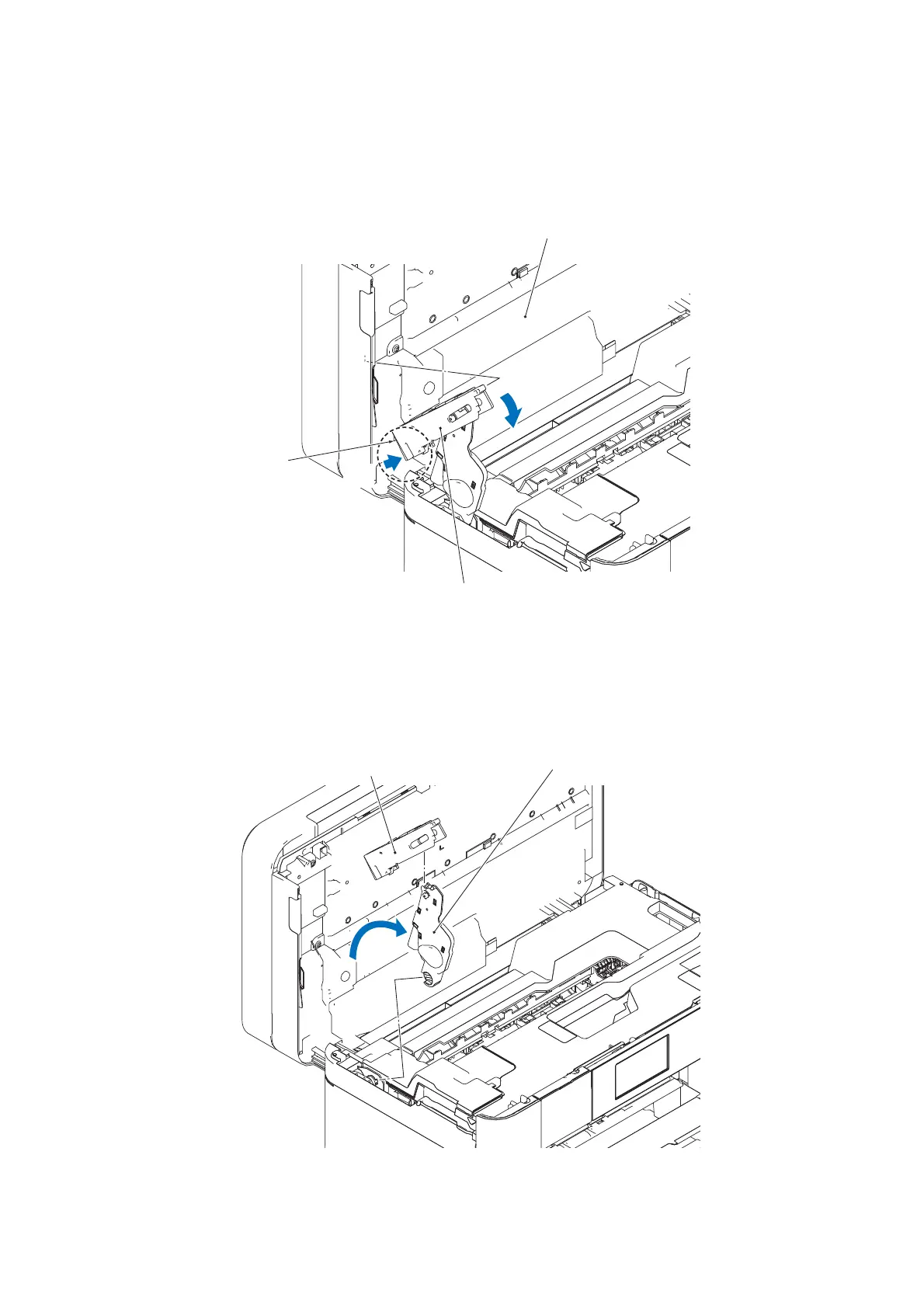

Fig. 3-8
(3) Turn the Scanner cover support upright, and pull it up and out of the Upper cover
together with the Scanner cover damper.
(4) Remove the Scanner cover damper from the Scanner cover support.
Fig. 3-9
Scanner cover damper
Scanner cover
Hook
2a
2b
Scanner cover damper
Scanner cover support
