Brother MFC-J2320

3-86
Confidential
9.35 Ink Cartridge Cover Sensor ASSY
(1) Release the wiring of the Ink cartridge cover sensor ASSY.
(2) Release the Hook and remove the Ink cartridge cover sensor ASSY.

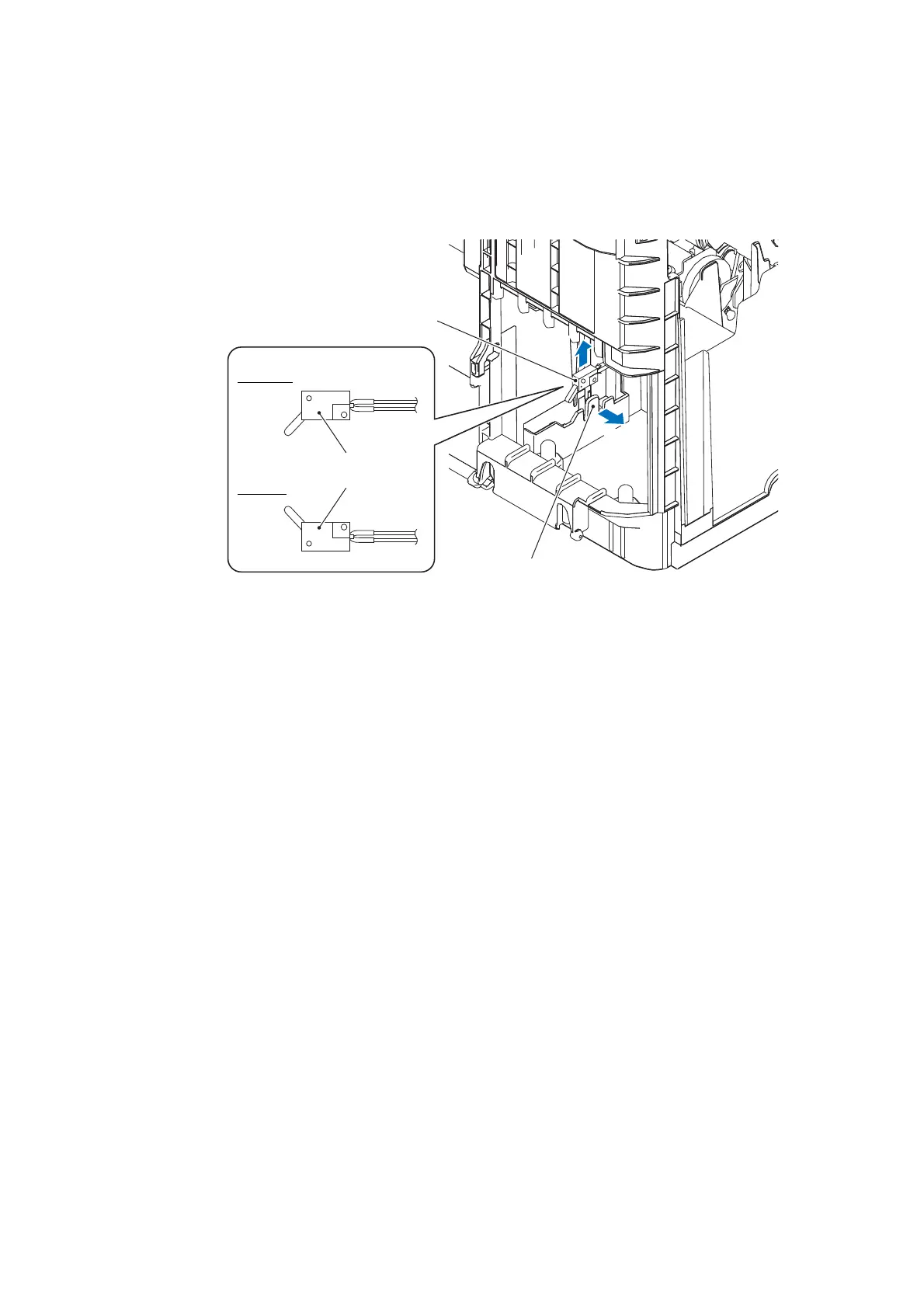

Fig. 3-93
Assembling Note: When mounting the Ink cartridge cover sensor ASSY, be careful
with the mounting direction.
Ink cartridge cover
sensor ASSY
Ink cartridge cover
sensor ASSY
Hook
2a
2b
Correct
Wrong
