9.13 Second Side CIS Flat Cable (Duplex scanning models only)
(1) Open the Feed tray.
(2) Remove the Feed tray.

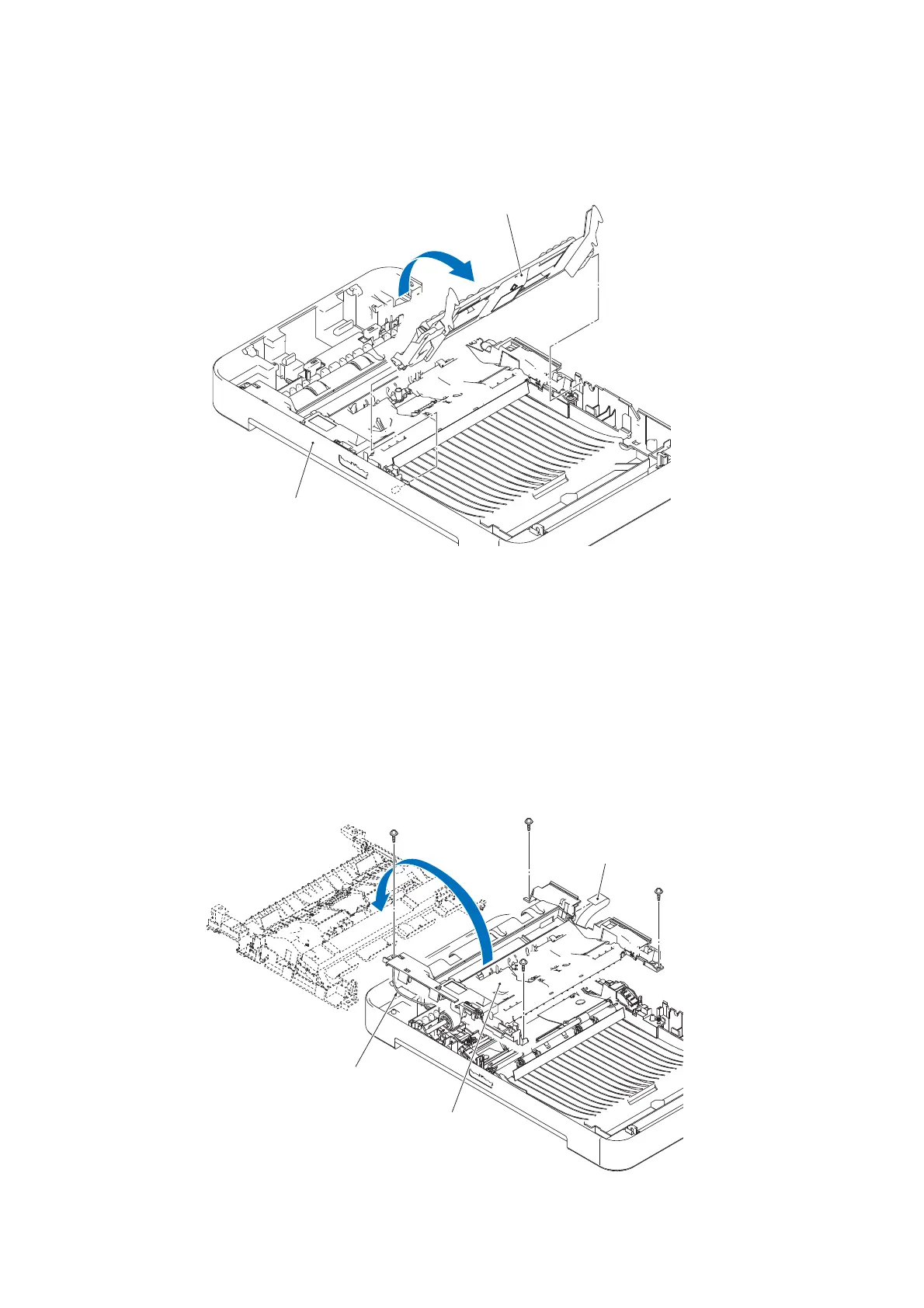

Fig. 3-35
(3) Remove the four screws (TAPTITE CUP B M3x10), take off the Upper document
chute, and temporarily put it in place.
Note: Do not remove the harness of the Upper document chute.
Assembling Note: When attaching the four screws (TAPTITE CUP B M3x10), observe
the order indicated below.
(4) Pull out the Second side CIS flat cable from the Upper document chute.
Fig. 3-36
Feed tray
ADF unit
Harness
Upper document chute
Second side
CIS flat cable
4
1
2
3
