Brother MFC-J2320

3-81
Confidential
9.33 Power Supply PCB ASSY
(1) Release the wiring of the Power supply harness.
(2) Remove the screw (TAPTITE CUP S M3x6).

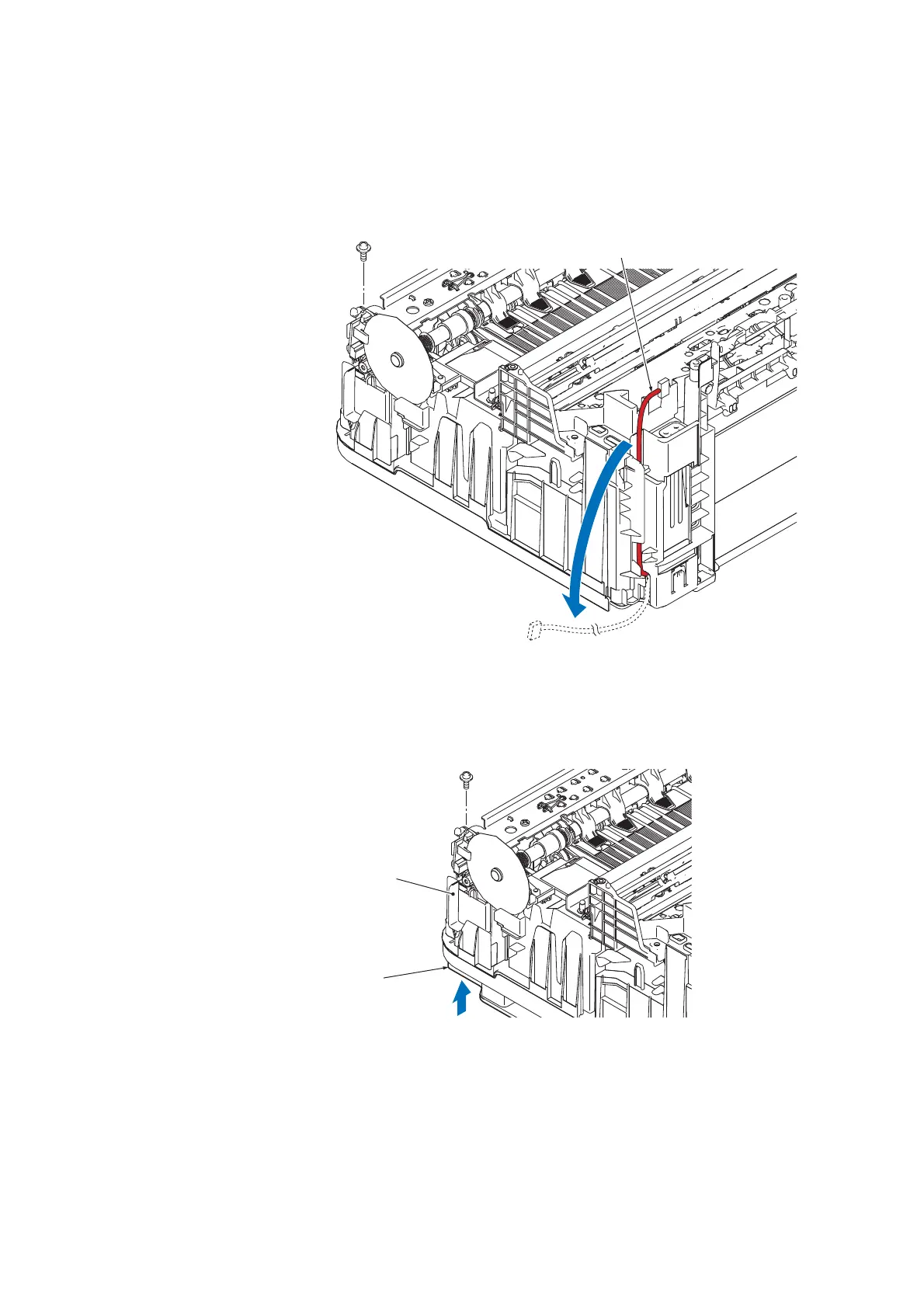

Fig. 3-85
Assembling Note: When attaching a Power supply unit, hold up the rear section of the
unit and tighten the screw.
Fig. 3-86
TAPTITE CUP S M3x6
Power supply harness
TAPTITE CUP S M3x6
Lower cover
Power supply unit
