2OVERVIEW

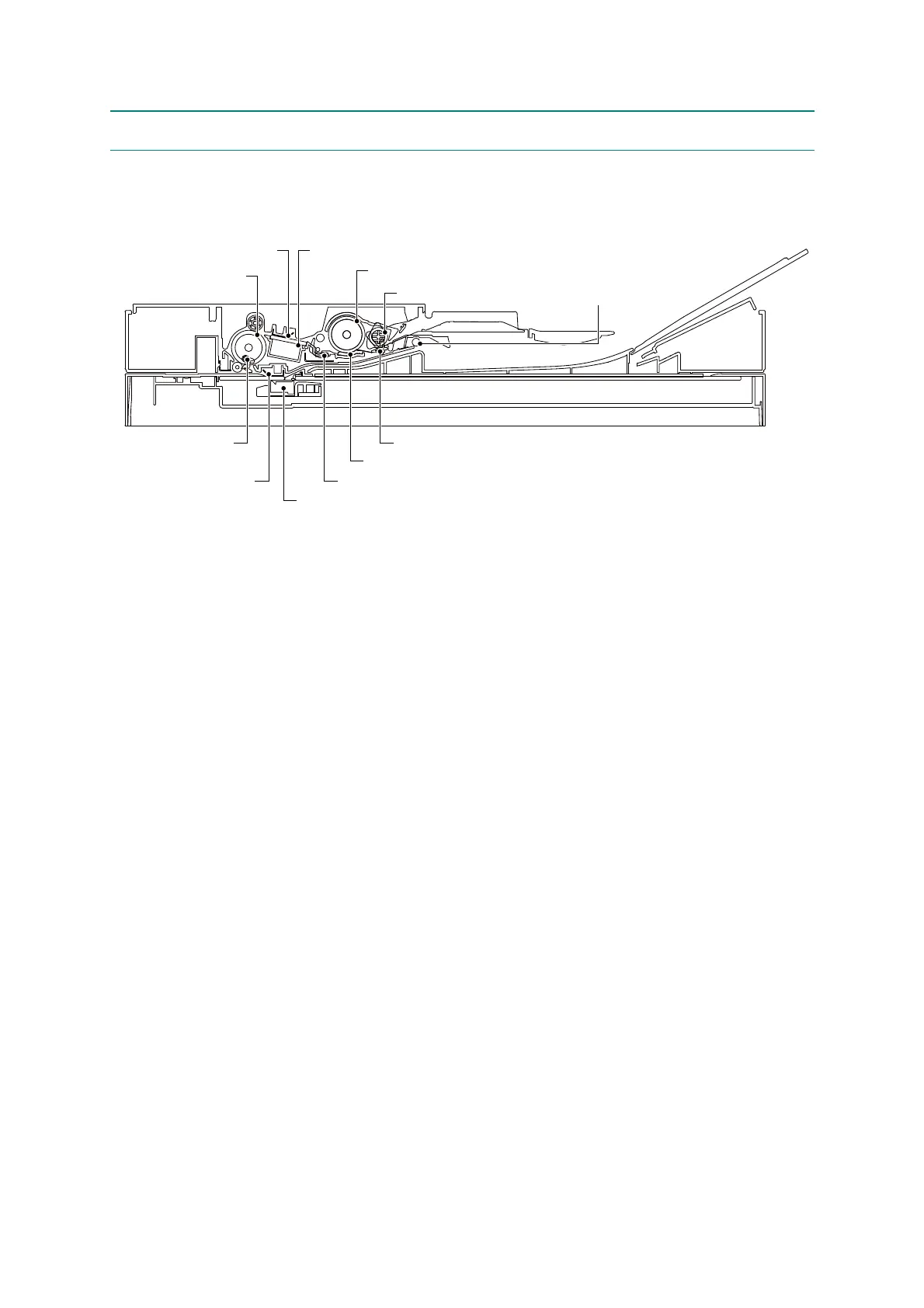

2.1 Cross-section Drawings
2.1.1 Document scanning
Fig. 2-1
Second side CIS unit *
Document separation roller
Second side document
pressure bar *
Document feed roller
Document detection actuator
Second side document scanning position actuator *
First side document
scanning position
actuator
First side document
pressure bar
ADF separation pad
Document pick-up roller
First side CIS unit
* Duplex scanning models only
Document
ejection roller

Brother MFC-J2320 Specifications

General

Print Technology	Inkjet
Functions	Print, Copy, Scan, Fax
Connectivity	USB, Ethernet, Wi-Fi
Max Print Resolution	6000 x 1200 dpi
Max Print Size	A3
Scanner Type	Flatbed with ADF
Max Scan Resolution	1200 x 2400 dpi
Copy Speed (Black)	12 cpm
Copy Speed (Color)	9 cpm
Paper Tray Capacity	250 sheets
Mobile Printing	Brother iPrint&Scan, AirPrint, Google Cloud Print
Display	2.7" LCD touchscreen
Paper Handling	A3, A4
