Brother MFC-J2320 Service Manual

4-6
Confidential
(6) In Port on the BrUsbSn screen, select the port number assigned to the Brother
Maintenance USB Printer.
If the port number is unknown, follow steps 1) through 4) below.
1) Click Start | Devices and Printers.
2) Right-click the Brother Maintenance USB Printer driver icon.
3) Click Properties.
4) Click the Ports tab.
(7) In the Serial No. box on the BrUsbSn screen, type the 15-digit serial number which
is printed on the serial number label attached to the machine.

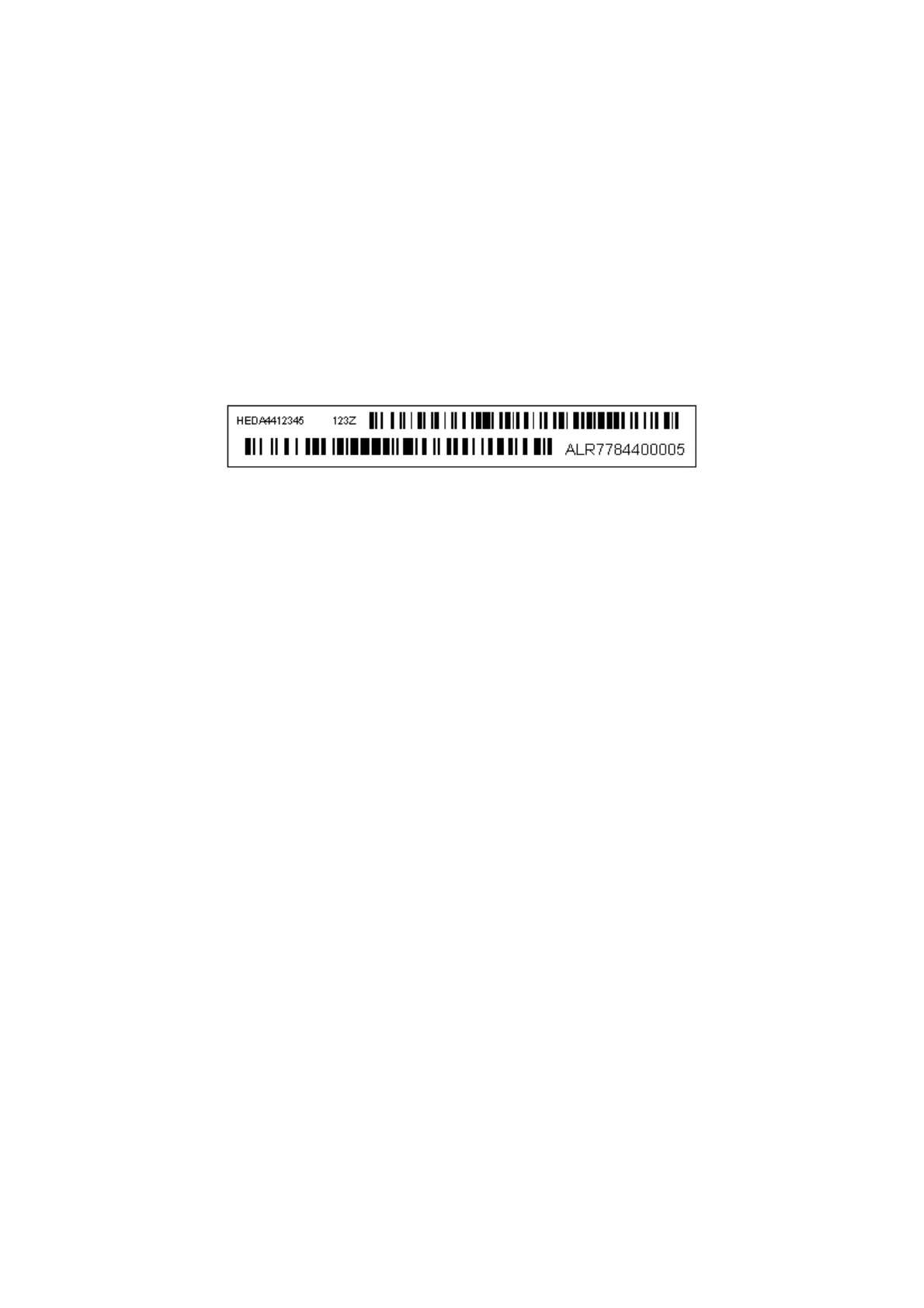

(8) In the Head Info. box, type the 13-digit head property code. The head property info
is printed on the bar code label attached to the head/carriage unit.
Tip: Opening the scanner cover when the machine is on standby and holding
down the X key for at least 5 seconds moves the head/carriage unit to the center of
its travel. This makes it possible to check the property label through the opening.
(9) Click the OK key.
(10)Wait for the confirmation screen of the serial number entered and the head
property code to appear, then click Yes.
(11)Use Maintenance mode 80 to display the serial number and head property info and
check that the entered data is correct.
1.7 Updating of head property data and backup/restoration of head
calibration data (Maintenance mode 68)
Update the head property data, referring to Chapter 5, Section 1.3.25.
The head property data can also be updated with the service setting tool
(BrUsbSn.exe). For details, refer to Section 1.6.
1.8 Restore machine information (Maintenance mode 46)
Restore the machine information and user setting information that have been backed
up in an external memory, referring to Chapter 5, Section 1.3.13.
If the machine information is successfully restored, it is not necessary to perform
operations given in Sections 1.9 to 1.14.
If the machine has failed to restore the machine information from the external memory,
replace the ink absorber box and flushing box and then reset their counts using the
procedure given in Section 1.14.
1.9 Adjust the touch panel (Maintenance mode 78)
Adjust the touch panel, referring to Chapter 5, Section 1.3.31.
