Brother MFC-J2320 Service Manual

3-90
Confidential
9.38 Carriage Motor ASSY

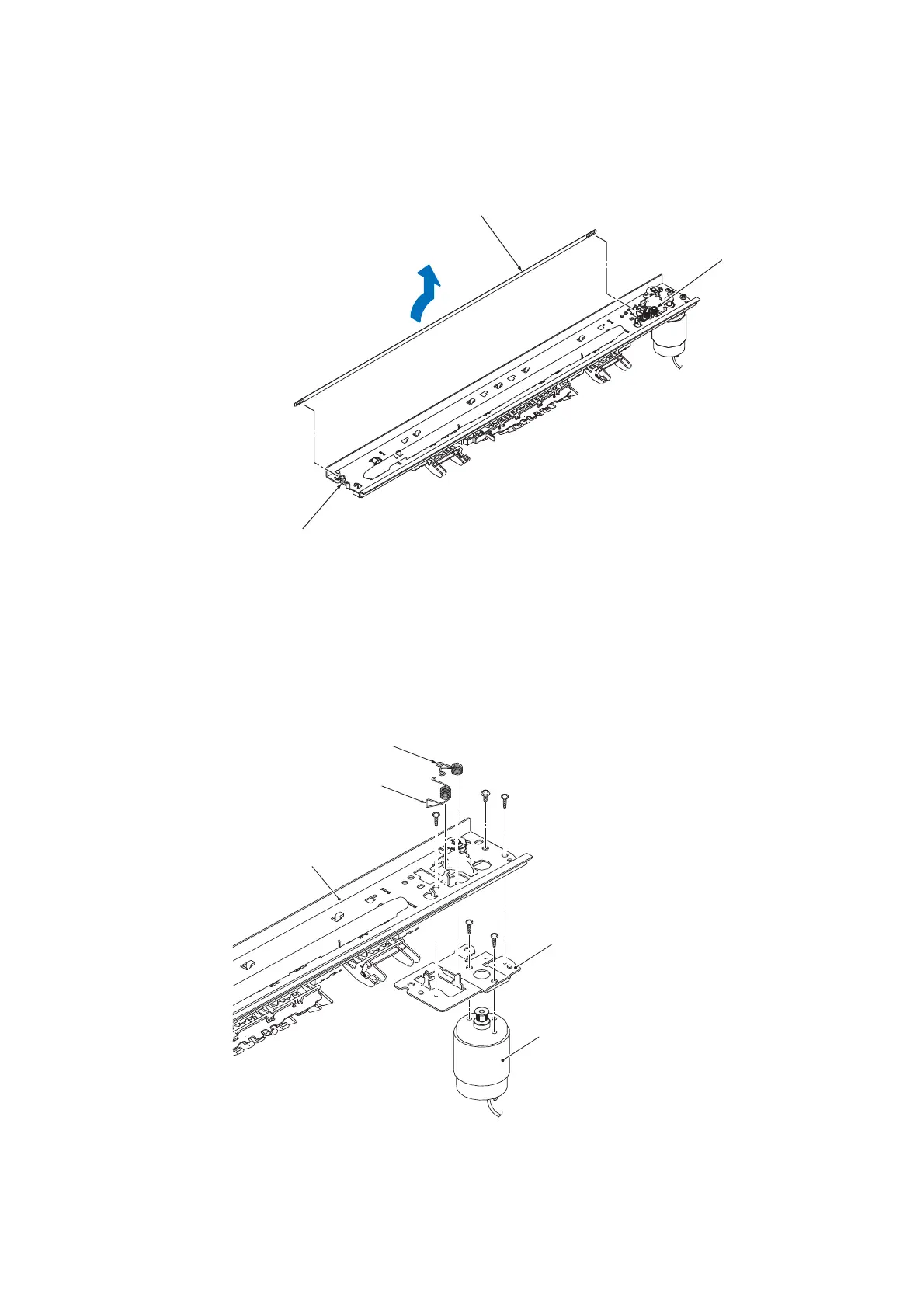

(1) Release the lock of the Guard film spring and remove the Encoder strip guard film.
Fig. 3-98
(2) Remove the Belt tension spring and the Guard film spring.
(3) Remove the two screws (SCREW BIND M3x6) and the screw (TAPTITE CUP S
M3x6) and take the Carriage motor ASSY off the CR frame ASSY.
(4) Remove the two screws (SCREW BIND M3x6) and take the Carriage motor ASSY
off the Motor bracket.
Fig. 3-99
Encoder strip guard film
Guard film spring
Strip support
"a": SCREW BIND M3x6
"b": TAPTITE CUP S M3x6
"a"
"b"
"a"
CR frame ASSY
Motor bracket
"a"
"a"
Carriage motor ASSY
Belt tension spring
Guard film spring

Brother MFC-J2320 Specifications

General

Print Technology	Inkjet
Functions	Print, Copy, Scan, Fax
Connectivity	USB, Ethernet, Wi-Fi
Max Print Resolution	6000 x 1200 dpi
Max Print Size	A3
Scanner Type	Flatbed with ADF
Max Scan Resolution	1200 x 2400 dpi
Copy Speed (Black)	12 cpm
Copy Speed (Color)	9 cpm
Paper Tray Capacity	250 sheets
Mobile Printing	Brother iPrint&Scan, AirPrint, Google Cloud Print
Display	2.7" LCD touchscreen
Paper Handling	A3, A4
