Brother MFC-J2320 Service Manual

3-104
Confidential
9.46 Maintenance Unit/Ink Absorber Felt (for Maintenance Unit)
(1) Release the wiring of the harnesses.
(2) Remove the Maintenance unit.
(3) Remove the Ink absorber felt (for maintenance unit).

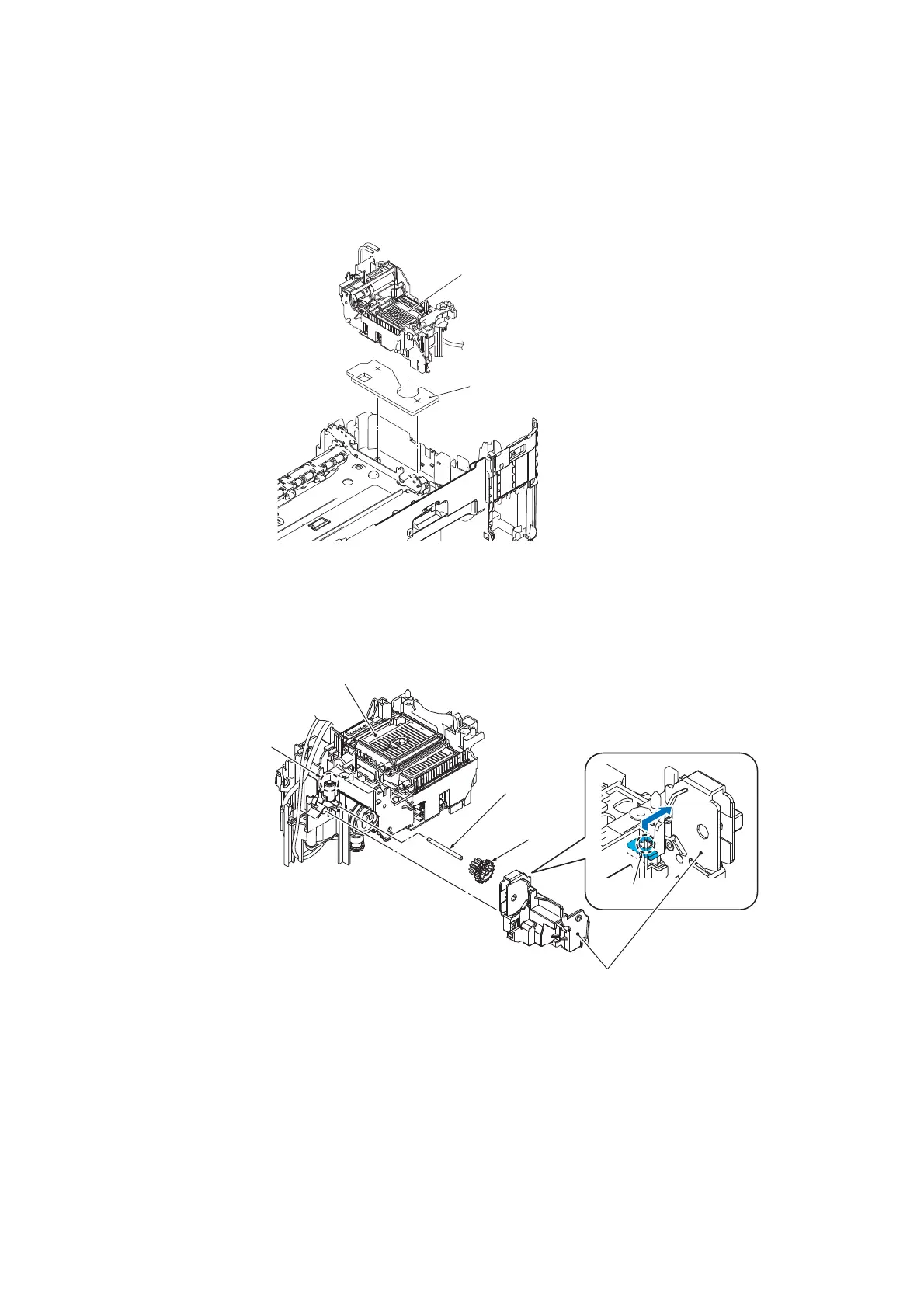

Fig. 3-118
(4) Release the Maintenance unit boss and remove the Drive unit.
(5) Remove the Gear and Shaft.
Fig. 3-119
Maintenance unit
Ink absorber felt
(for maintenance unit)
Maintenance unit
Drive unit
Gear
Shaft
Boss
Boss

Brother MFC-J2320 Specifications

General

Print Technology	Inkjet
Functions	Print, Copy, Scan, Fax
Connectivity	USB, Ethernet, Wi-Fi
Max Print Resolution	6000 x 1200 dpi
Max Print Size	A3
Scanner Type	Flatbed with ADF
Max Scan Resolution	1200 x 2400 dpi
Copy Speed (Black)	12 cpm
Copy Speed (Color)	9 cpm
Paper Tray Capacity	250 sheets
Mobile Printing	Brother iPrint&Scan, AirPrint, Google Cloud Print
Display	2.7" LCD touchscreen
Paper Handling	A3, A4
