Brother MFC-J2320 Service Manual

3-63
Confidential
9.25 Sensor Relay PCB ASSY
(1) Disconnect all harnesses connected to the Sensor relay PCB ASSY.
(2) Release the wiring above the Sensor relay PCB ASSY.
Assembling Note: When wiring the CR motor harness and the Paper feed motor
harness, set the Ferrite core with the cable tie positioned on the top of the Ferrite core.
See " Lower cover (left side)" of this chapter.
(3) Remove the screw (TAPTITE CUP S M3x6) and take off the Sensor relay PCB
ASSY.

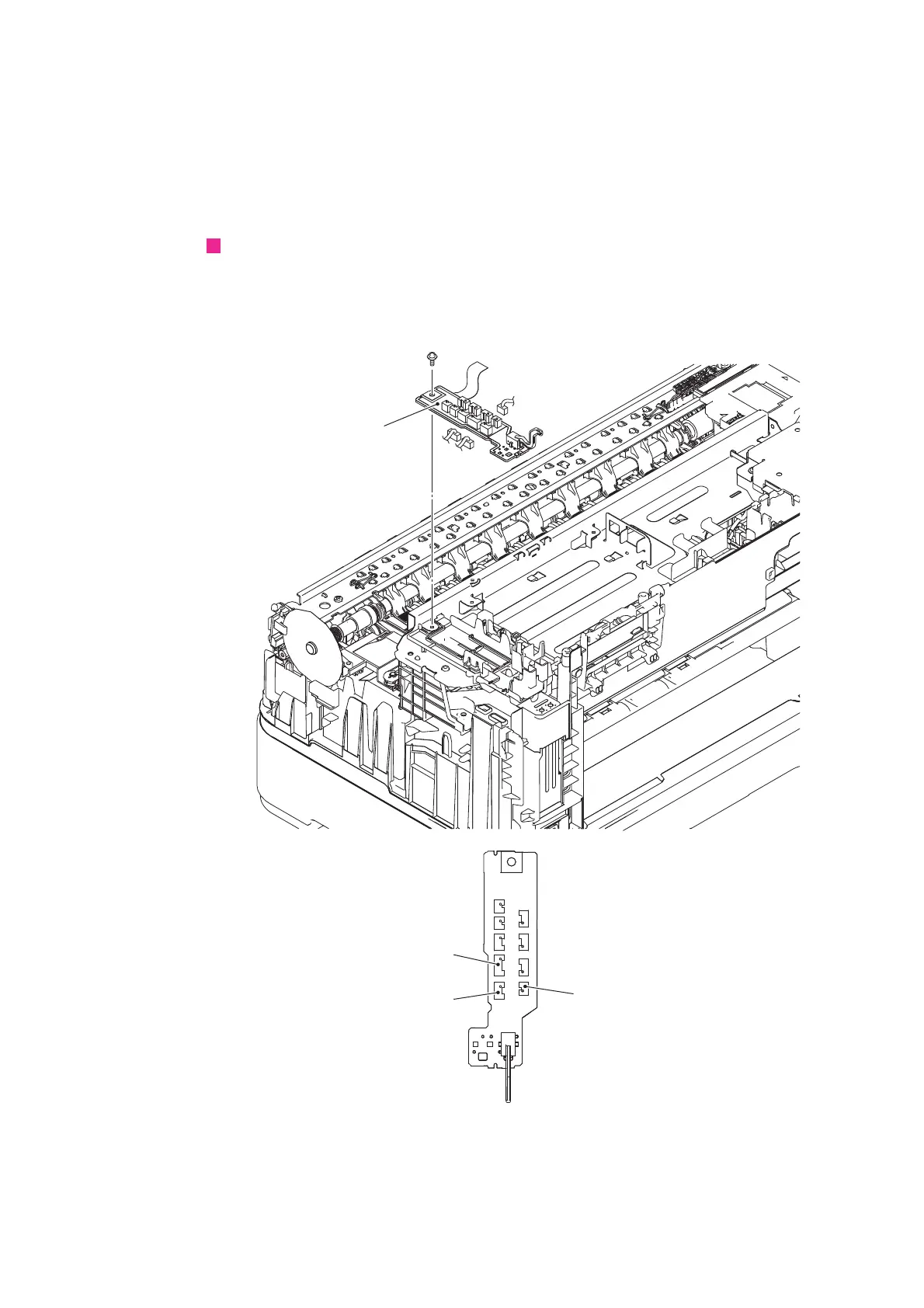

Fig. 3-60
10
TAPTITE CUP S M3x6
Sensor relay PCB ASSY
Paper tray 2 detection
sensor harness
PF encoder harness
Switchback sensor harness

Brother MFC-J2320 Specifications

General

Print Technology	Inkjet
Functions	Print, Copy, Scan, Fax
Connectivity	USB, Ethernet, Wi-Fi
Max Print Resolution	6000 x 1200 dpi
Max Print Size	A3
Scanner Type	Flatbed with ADF
Max Scan Resolution	1200 x 2400 dpi
Copy Speed (Black)	12 cpm
Copy Speed (Color)	9 cpm
Paper Tray Capacity	250 sheets
Mobile Printing	Brother iPrint&Scan, AirPrint, Google Cloud Print
Display	2.7" LCD touchscreen
Paper Handling	A3, A4
