3-62
Confidential
(3) Remove the two screws (TAPTITE CUP S M3x6) and remove the Main PCB
ASSY.

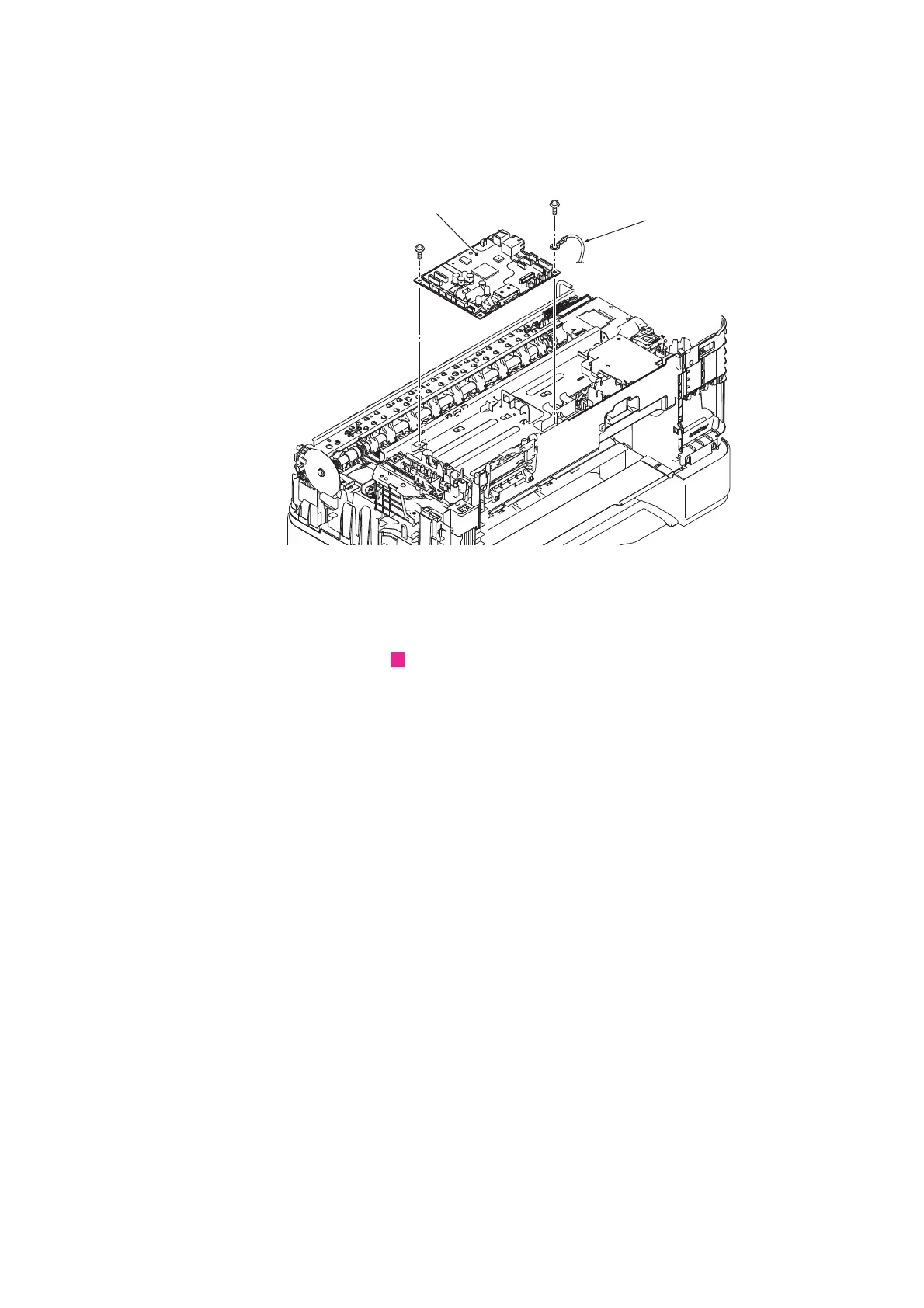

Fig. 3-59
Assembling Note: When tightening the right lower screw on the Main PCB ASSY,
secure the Main PCB grounding wire together.
Routing of harnesses: See " Main PCB ASSY/Modem PCB ASSY."
Main PCB ASSY
Main PCB
grounding wire
TAPTITE CUP S M3x6
TAPTITE CUP S M3x6
2
