Brother MFC-J2320 Service Manual

3-109
Confidential
9.50 T2 Base Pad
(1) If the T2 base pad needs to be replaced, peel it off the bottom of the Paper tray
ASSY 2.
Note: Once removed, the T2 base pad will become unusable and a new pad will have
to be put back in.

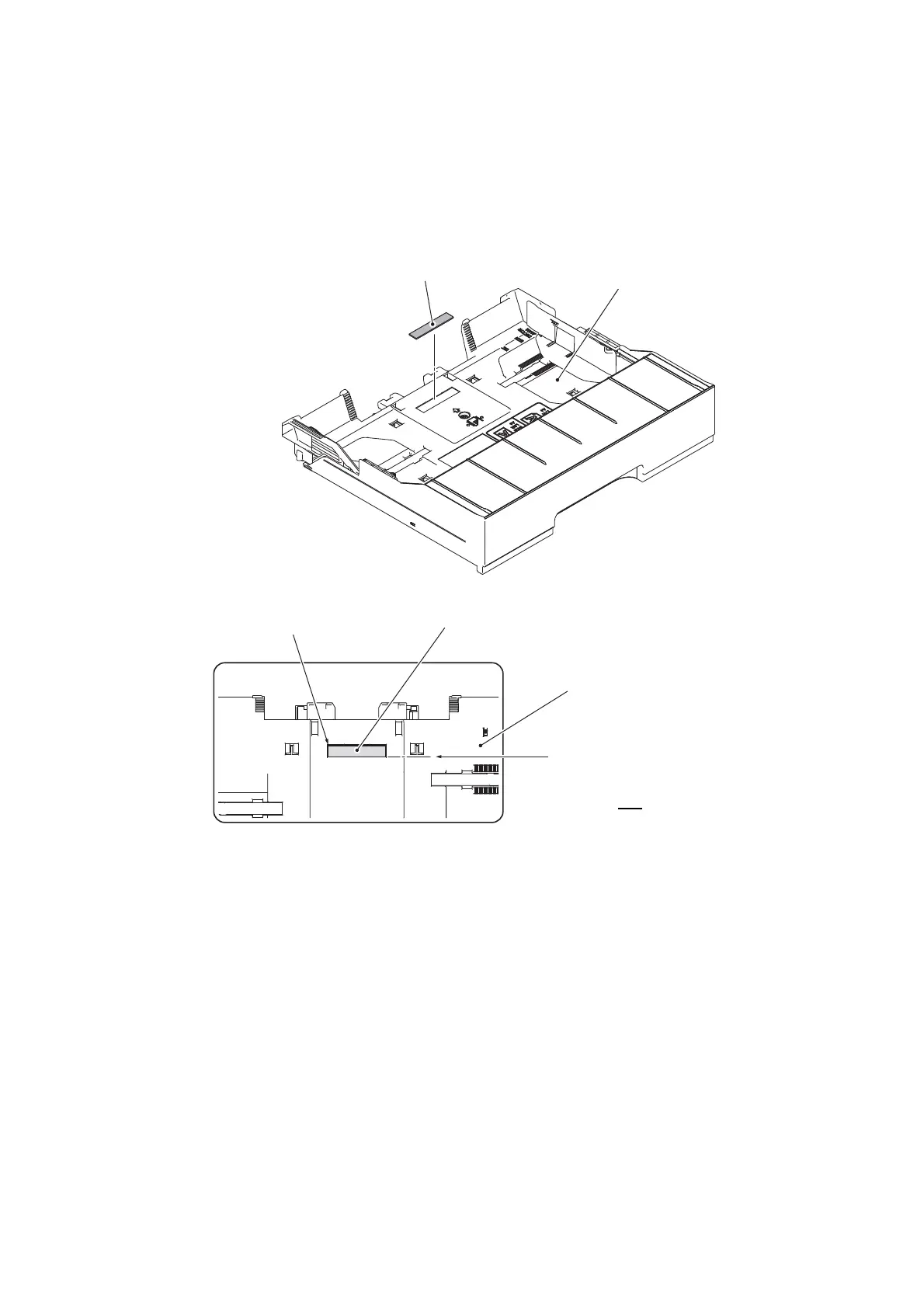

Fig. 3-125
Assembling Note: When attaching a new T2 base pad to the Paper tray ASSY 2, align
the front edge of the pad with that of the Depressed section on the Paper tray ASSY 2
and center the pad widthways as shown above.
T2 base pad
Paper tray ASSY 2
Paper tray ASSY 2
T2 base pad
Depressed section
Align the edge of the T2 base pad
with the front edge of the depressed
section at the bottom of the Paper
tray (this line
).

Brother MFC-J2320 Specifications

General

Print Technology	Inkjet
Functions	Print, Copy, Scan, Fax
Connectivity	USB, Ethernet, Wi-Fi
Max Print Resolution	6000 x 1200 dpi
Max Print Size	A3
Scanner Type	Flatbed with ADF
Max Scan Resolution	1200 x 2400 dpi
Copy Speed (Black)	12 cpm
Copy Speed (Color)	9 cpm
Paper Tray Capacity	250 sheets
Mobile Printing	Brother iPrint&Scan, AirPrint, Google Cloud Print
Display	2.7" LCD touchscreen
Paper Handling	A3, A4
