3-110
Confidential
9.51 T1 Paper Pull-in Roller
(1) Release the two Hooks of the Paper pull-in roller holder and remove the T1 paper
pull-in rollers and their holder from the Gear holder ASSY.
(2) Remove the T1 paper pull-in rollers from their holder and separate those rollers to
the right and left.

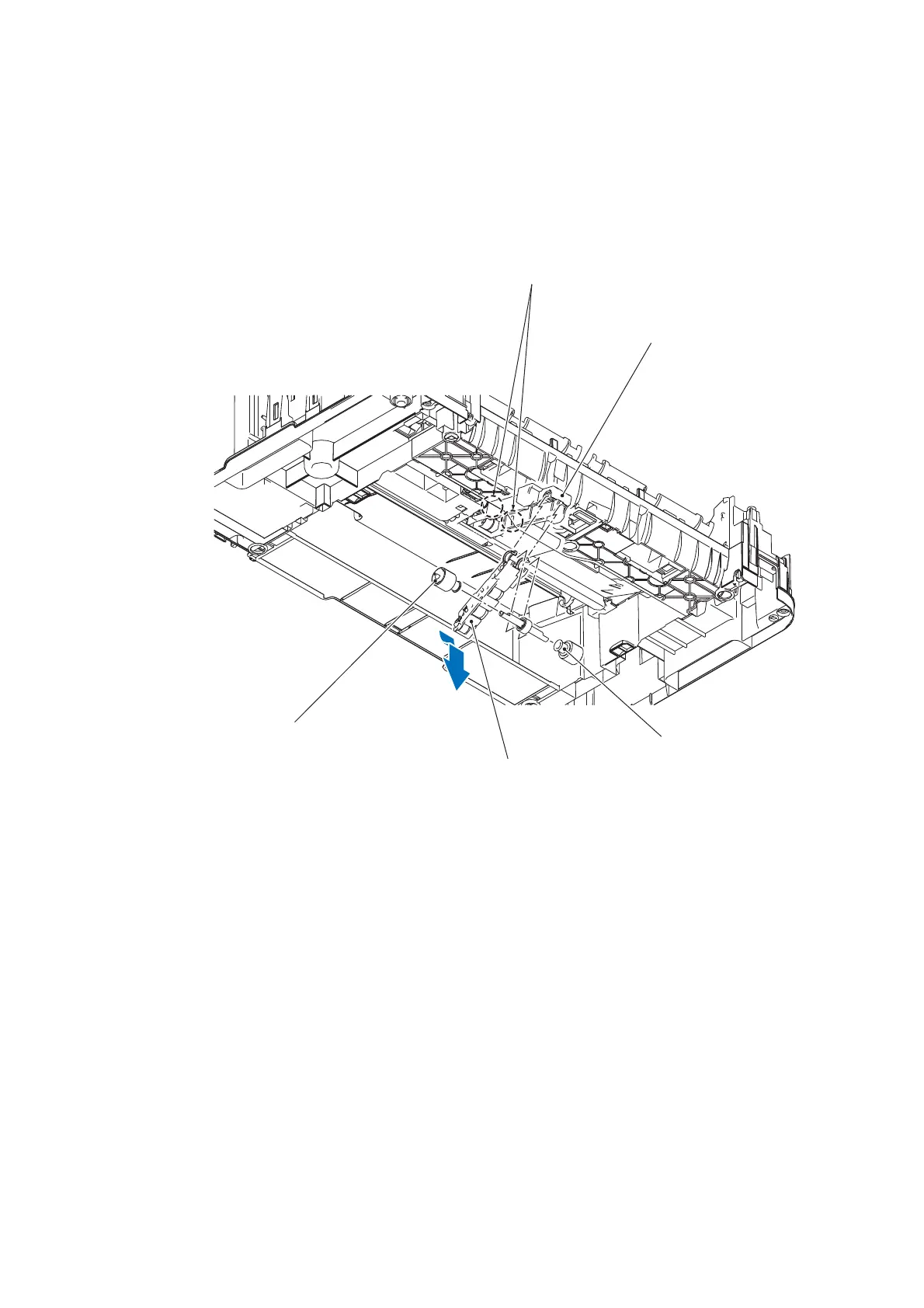

Fig. 3-126
Hooks
Gear holder ASSY
T1 paper pull-in roller
Paper pull-in roller holder
T1 paper pull-in roller
