Brother MFC-J2320 Service Manual

3-103
Confidential

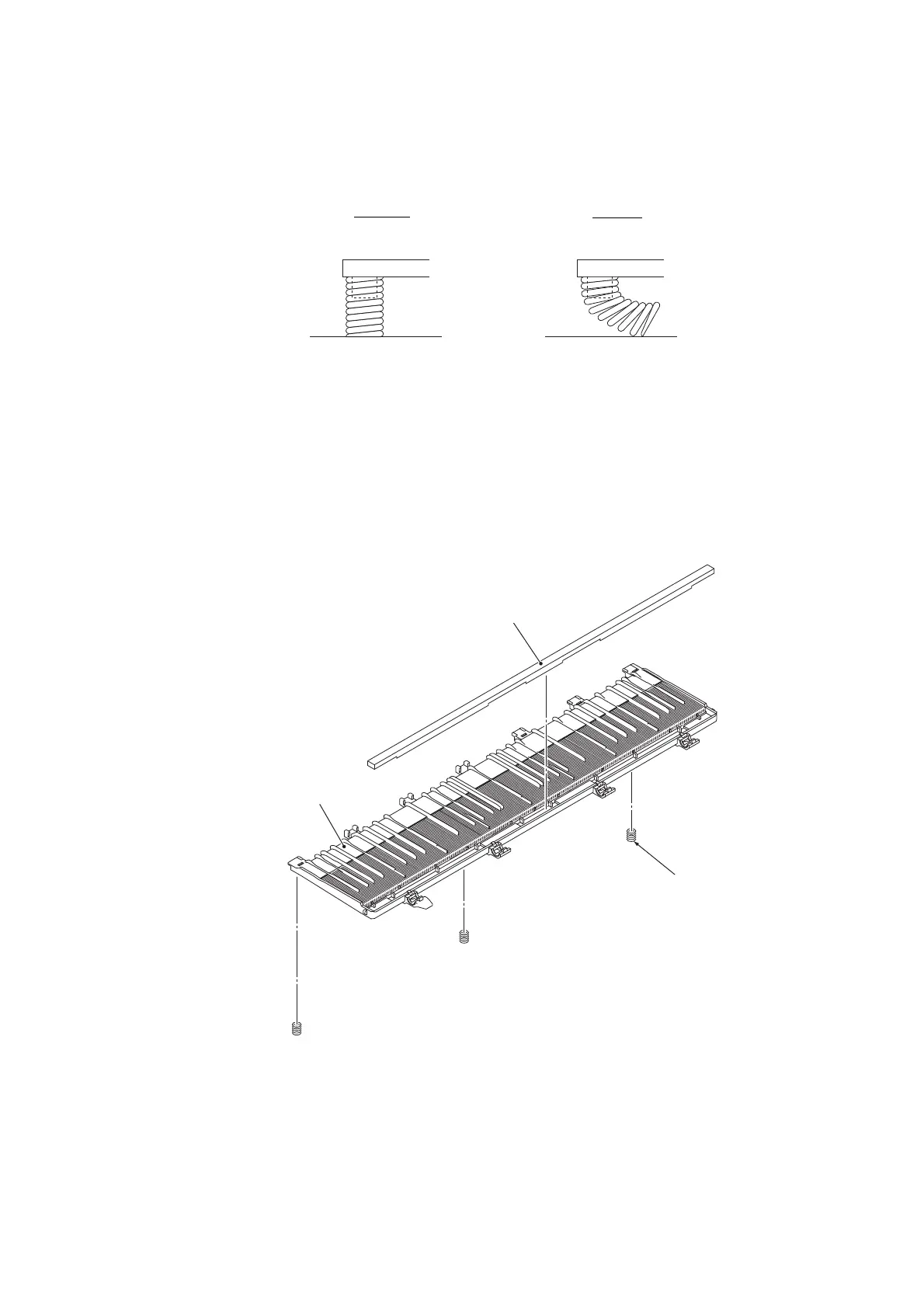

Assembling Note: Platen springs should not be bent or turned over.
Fig. 3-116
9.45 Platen
(1) Remove the Platen foam from the Platen.
(2) Remove the three Platen springs from the Platen.
Fig. 3-117
Assembling Note: When mounting the Platen foam to the Platen, take care not to put
it over the Platen rib.
Correct Wrong
Platen foam
Platen spring
Platen

Brother MFC-J2320 Specifications

General

Print Technology	Inkjet
Functions	Print, Copy, Scan, Fax
Connectivity	USB, Ethernet, Wi-Fi
Max Print Resolution	6000 x 1200 dpi
Max Print Size	A3
Scanner Type	Flatbed with ADF
Max Scan Resolution	1200 x 2400 dpi
Copy Speed (Black)	12 cpm
Copy Speed (Color)	9 cpm
Paper Tray Capacity	250 sheets
Mobile Printing	Brother iPrint&Scan, AirPrint, Google Cloud Print
Display	2.7" LCD touchscreen
Paper Handling	A3, A4
