3-102
Confidential
(3) Rotate the Bushing lever to upward.
(4) Remove the Platen and the Paper ejection roller.
(5) Remove the Paper ejection roller from the Platen.
Assembling Note: Mount the Paper feed roller with its Bushing lever tilted forward as
shown below.

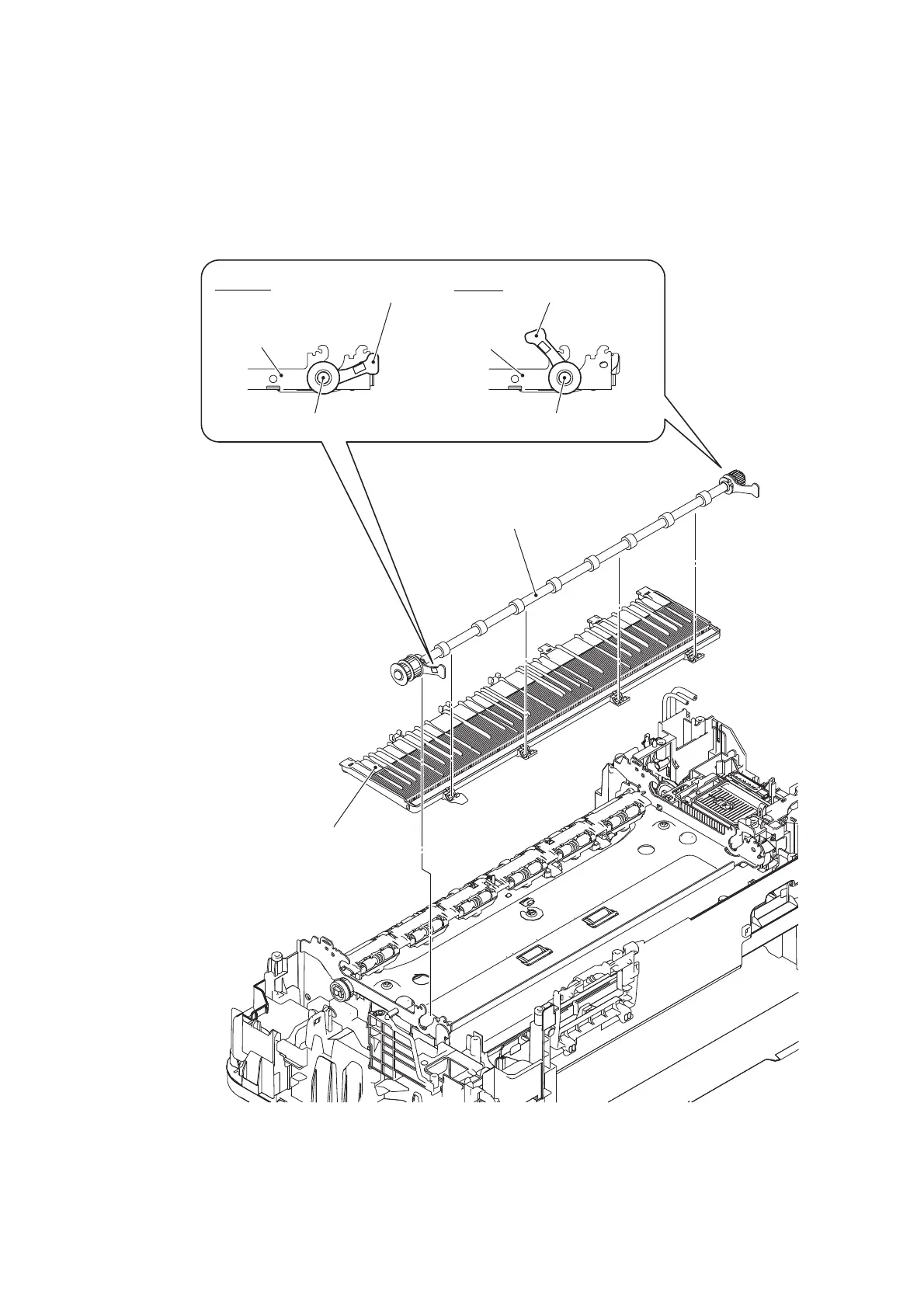

Fig. 3-115
Paper ejection roller
Platen
PlatenPlaten
Paper ejection roller
Paper ejection roller
(Rear)(Rear)
(front) (front)
Bushing lever Bushing lever
Correct Wrong
