Brother MFC-J2320

3-82
Confidential

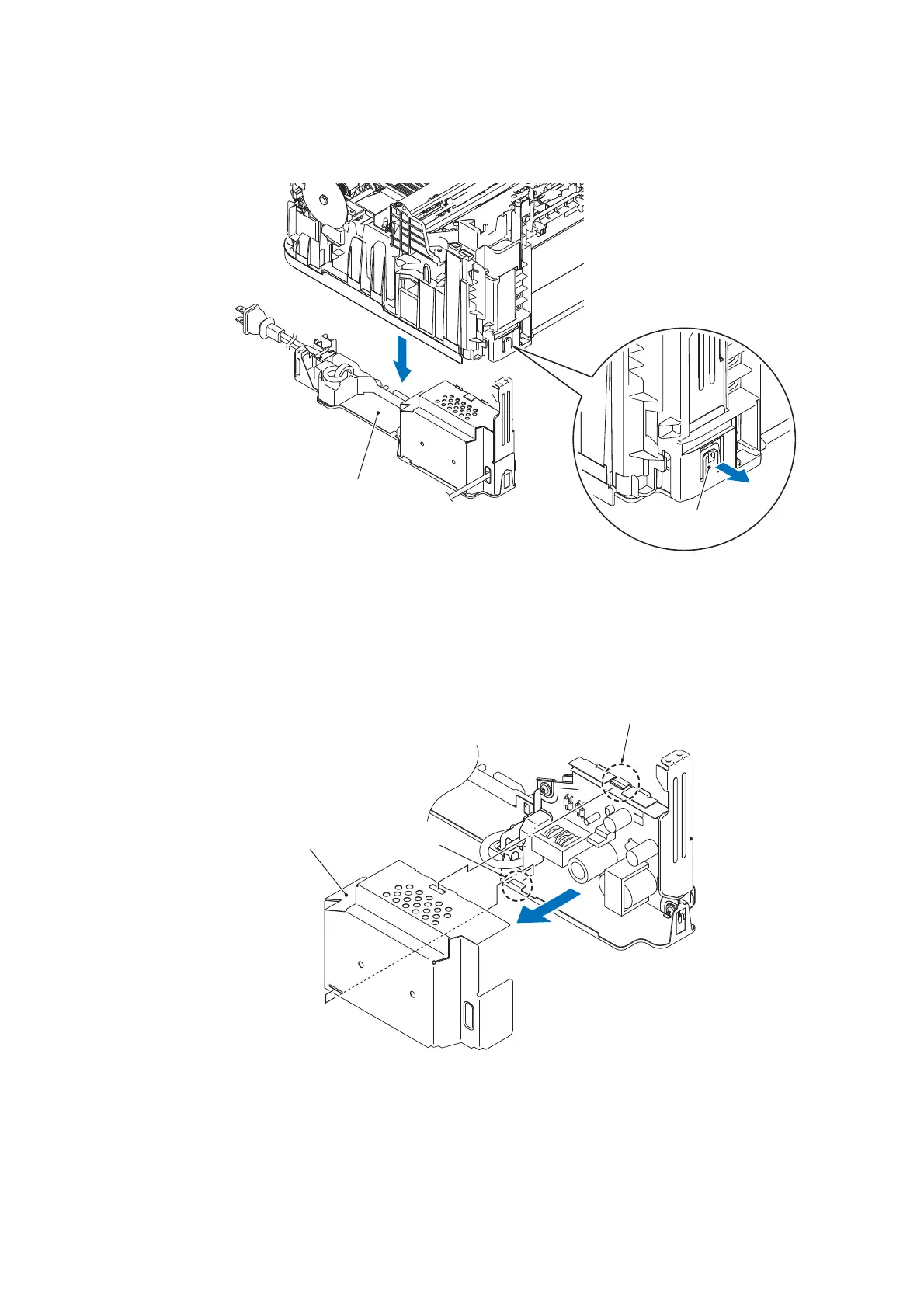

(3) Release the Hook and remove the Power supply unit from the bottom of the Lower
cover.
Fig. 3-87
(4) Release the Lock and Hook, and remove the Power supply shield.
Fig. 3-88
Hook
Power supply unit
3a
3b
Lock
Hook
Power supply shield
